Preparation 05
19
En
English

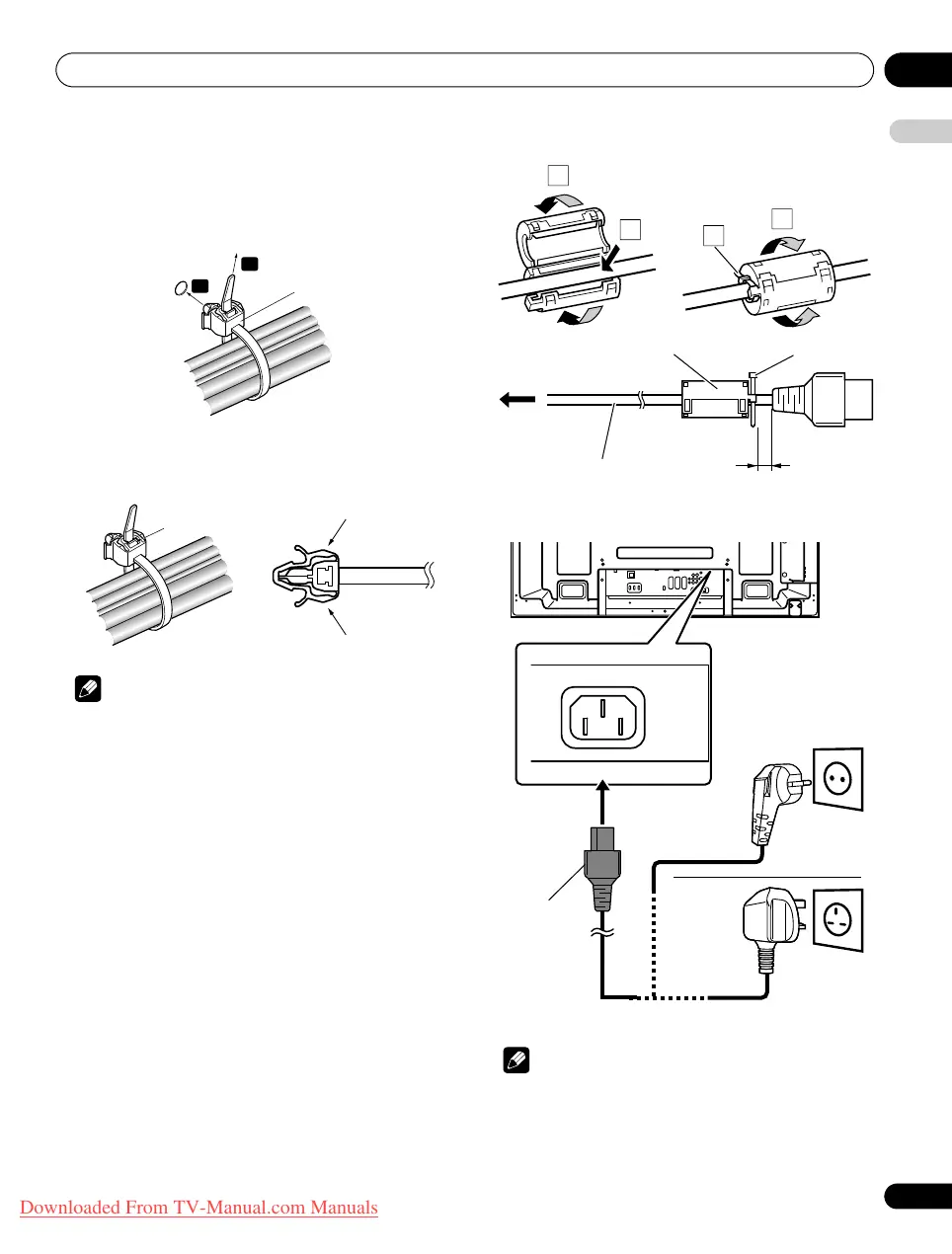

Attaching and removing a cable clamp
Thread the clamp band through the holder [1] and bundle the
cable(s) in the cable clamp. Push and hold the levers then insert the
hook into an appropriate hole [2] on the rear of the flat screen TV.
Pull up the clamp band to lock.
• Confirm that the cable clamp is seated firmly in the panel.
To remove the clamp band, pull and hold the latch to release.
To remove the cable clamp, push and hold the levers then pull it out
from the hole.
Note
• Avoid pinching or creating pressure points when routing or
bundling cables.
• The longer a clamp is in place, the better chance of
deterioration. An older clamp is more easily damaged while
being removed and may not be reusable.
• Use the cable clamps as necessary.
• Be careful not to subject any connecting cables to strain.
Attaching the ferrite core
Attach the accessory ferrite core to the end of the power cord as
shown in the accompanying illustration. Use the provided cable tie
to prevent the ferrite core from slipping on the cable.
If you do not do this, the flat screen TV will not conform to
mandatory CE standards.
Connecting the power cord
Note
• Disconnect the power cord from the power outlet when the flat
screen TV is not going to be used for a long period of time.
• Insert the power plug in the AC outlet, after all other
components are connected.
1
2
3
4
Ferrite core
To power outlet
AC power cord
As close as possible
Cable tie
T
W
T
W
Rear view
Europe, except UK
and Republic of
Ireland
Power cord
UK and Republic of Ireland
