Part names 04
13
En
English

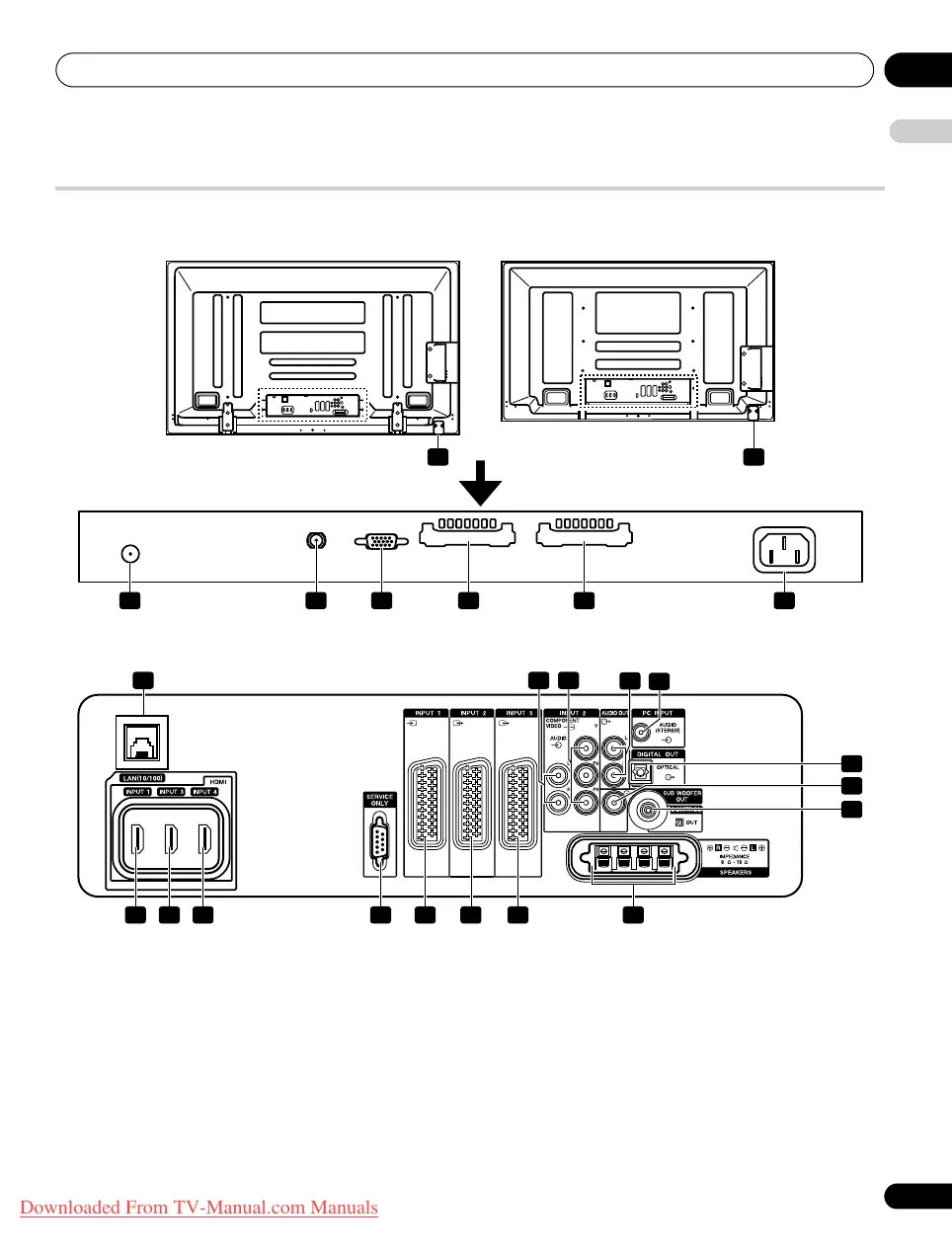

Flat screen TV
(Rear)
1 button
2 ANT (Antenna) input terminal
• Power can be supplied through this terminal
3 SAT (Satellite) input terminal
4 PC INPUT terminal (Analogue RGB)
5 COMMON INTERFACE 1 slot
6 COMMON INTERFACE 2 slot
7 AC IN terminal
8 INPUT 1 terminal (HDMI)
9 INPUT 3 terminal (HDMI)
10 INPUT 4 terminal (HDMI)
11 RS-232C terminal (used for factory setup)
12 INPUT 1 terminal (SCART)
13 INPUT 2 terminal (SCART)
14 INPUT 3 terminal (SCART)
15 Ethernet cable port
16 INPUT 2 terminals (Audio)
17 INPUT 2 terminals (COMPONENT VIDEO: Y, P
B
, P
R
)
18 AUDIO OUT terminals
19 PC INPUT terminal (Audio)
20 DIGITAL OUT terminal (OPTICAL)
21 SUB WOOFER OUT terminal
22 CONTROL OUT terminal (supports SR+)
23 SPEAKERS terminals (right/left)
• Do not connect any devices to the speaker terminals other than
the speakers specified.
• Do not leave speaker cable wires bare and exposed at the
terminals. Exposed wires can result in an electrical short
causing malfunction or damage to the system.
T
W
W
W
T
W
W
W
74 5 632
11
19
16
18
20
22
21
8 9 10 11 12 13 14 23
1715
The terminals on the rear panel are common to the PDP-LX6090H and PDP-LX5090H.
*For exact terminal positions, refer to the terminal position sheet
located near the terminal compartment.
(PDP-LX5090H)
(PDP-LX6090H)
Terminals in upper bank
Terminals in middle bank
PDP-LX609H.book Page 13 Wednesday, August 6, 2008 4:00 PM
