Pioneer VSX-918V-K User Manual

14
VSX-918V-K
1
2 3 4
A
B
C
D
E
F
1
2 3 4

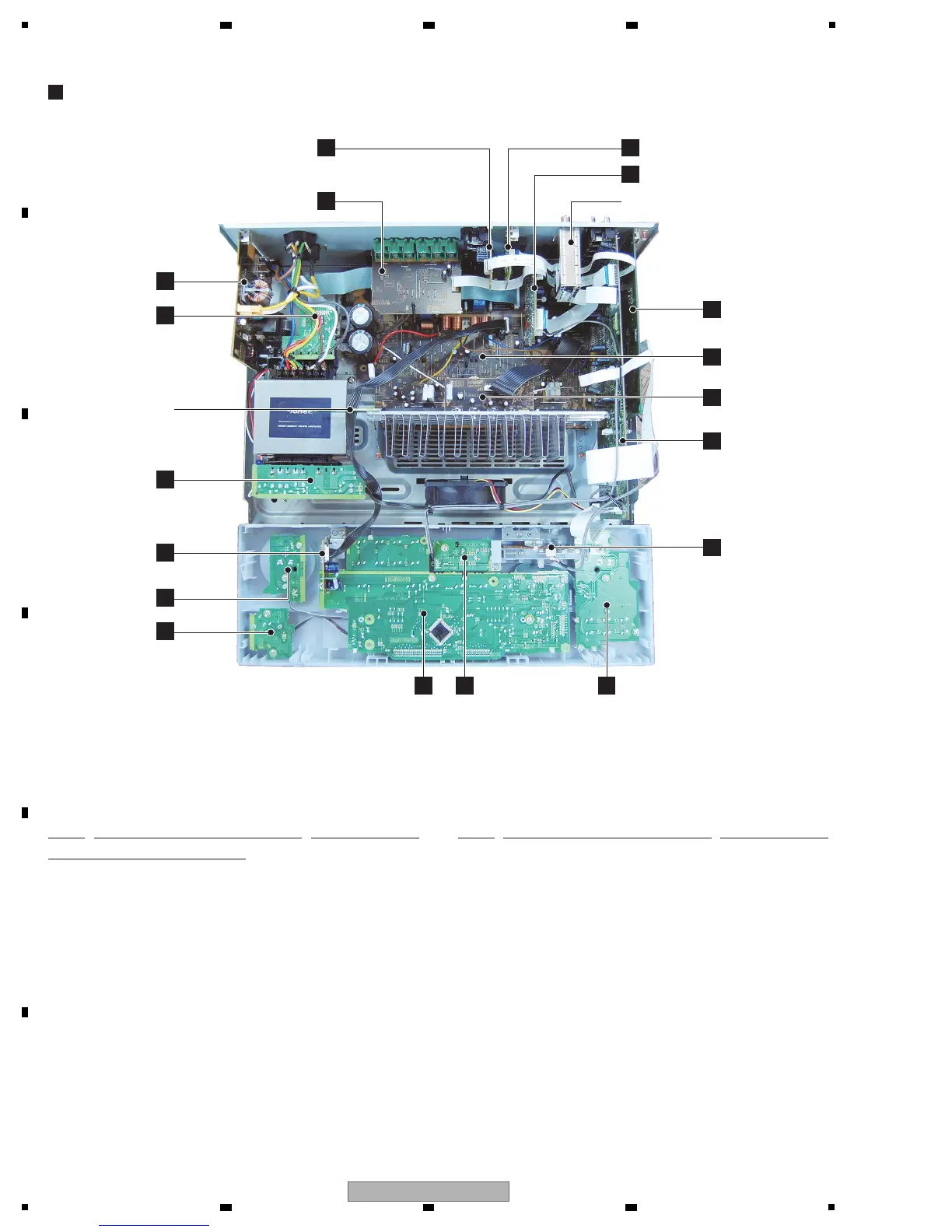

3.3 PCB LOCATIONS
H
FRONT DISPLAY
ASSY
R
FRONT VIDEO
ASSY
I
ROTARY ENCODER
ASSY
T
FRONT IN
ASSY
A
MAIN
ASSY
N
REGULATOR
ASSY
C
POWER PACK
ASSY
V
HDMI&DSP
&USB ASSY
POWER KEY
ASSY
J
TRANS 3
ASSY
G
BIND
ASSY
PRIMARY
ASSY
Q
TRANS 2
ASSY
D
HEADPHONE
ASSY
O
FM/AM TUNER UNIT
P
VIDEO ASSY
M
DIGITAL INPUT ASSY
F
5.1CH INPUT ASSY
E
COMPONENT VIDEO ASSY
1..HDMI&DSP&USB ASSY AWX8977
NSP 1..COMPLEX ASSY XWK3341
2..FRONT DISPLAY ASSY XWZ4285
2..ROTARY ENCODER ASSY XWZ4286
2..POWER KEY ASSY XWZ4288
2..JOG ASSY XWZ4289
2..VIDEO ASSY XWZ4294
2..DIGITAL INPUT ASSY XWZ4299
2..FRONT VIDEO ASSY XWZ4300
2..PRIMARY ASSY XWZ4302
2..REGULATOR ASSY XWZ4317
2..HEADPHONE ASSY XWZ4321
NSP 1..AMP ASSY XWK3349
2..POWER PACK ASSY XWZ4326
2..TRANS 2 ASSY XWZ4335
2..TRANS 3 ASSY XWZ4337
2..COMPONENT VIDEO ASSY XWZ4339
2..5.1CH INPUT ASSY XWZ4341
2..BIND ASSY XWZ4344
1..MAIN ASSY XWK3363
1..FRONT IN ASSY XWK3366
1..FM/AM TUNER UNIT AXX7170
Mark No. Description Part No. Mark No. Description Part No.
LIST OF ASSEMBLIES
NOTES:
-
Parts marked by “NSP” are generally unavailable because they are not in our Master Spare Parts List.
-
The > mark found on some component parts indicates the importance of the safety factor of the part.
Therefore, when replacing, be sure to use parts of identical designation.
JOG ASSY
K
VSX-918V

Pioneer VSX-918V-K Specifications

General

Impedance	8 Ω
RMS rated power	130 W
Audio output channels	5.1 channels
Signal-to-Noise Ratio (SNR)	88 dB
Frequency band	0.005 — 100 GHz
Dimensions (WxDxH)	420 x 352.5 x 158 mm
Power requirements	220 — 230 V, 50/60 Hz
Connectivity technology	Wired
Headphone outputs	1
Product color	Black
Power consumption (standby)	0.5 W
Power consumption (typical)	290 W

Weight and Dimensions

Weight	8100 g
