2. SPECIFICATIONS
2.1 SPECIFICATIONS
Manufactured under license from Dolby
Laboratories. “Dolby”, “Pro Logic” and the
double-D symbol are trademarks of Dolby
Laboratories.
“DTS” is a registered trademark of DTS, Inc.
and “DTS 96/24” is a trademark of DTS, Inc.
Amplifier section
• Continuous power output (stereo)
Front. . . . . . . . . . . . . . . . . . . . . . . .100 W + 100 W
(DIN 1 kHz, THD 1.0 %, 8
Ω)
• Rated power output
(surround / 20 Hz to 20 kHz, THD 0.06 %, 8 Ω)
Front. . . . . . . . . . . . . . . . . . . . . .95 W per channel
Center . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .95 W
Surround. . . . . . . . . . . . . . . . . .95 W per channel
• Rated power output
(surround / 1 kHz, THD 1.0 %, 8 Ω)
Front. . . . . . . . . . . . . . . . . . . . .130 W per channel
Center . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .130 W
Surround. . . . . . . . . . . . . . . . .130 W per channel
Audio section
• Input (Sensitivity/Impedance)
AUX, CD, CD-R/TAPE/MD, DVD/BD,
TV/SAT, DVR/VCR. . . . . . . . . . . . . .335 mV/47 k
Ω
• Frequency response
AUX, CD, CD-R/TAPE/MD, DVD/BD,
TV/SAT, DVR/VCR. . . . . 5 Hz to 100 000 Hz dB
• Output (Level/Impedance)
CD-R/TAPE/MD, DVR/VCR . . . . . 335 mV/2.2 kΩ
• Tone control
Bass. . . . . . . . . . . . . . . . . . . . . . . ± 6 dB (100 Hz)
Treble. . . . . . . . . . . . . . . . . . . . . . .± 6 dB (10 kHz)
Loudness. . . . . . +10 dB/+5 dB (100 Hz/10 kHz)
(at volume level –50 dB)
• Signal-to-Noise Ratio DIN (Continuous
rated power output / 50 mW)
AUX, CD, CD-R/TAPE/MD, DVD/BD,
TV/SAT, DVR/VCR. . . . . . . . . . . . . . . 88 dB/64 dB
Video Section
• Input (Sensitivity/Impedance)
DVR/VCR, DVD/BD, TV/SAT. . . . . . . .1 Vp-p/75 Ω
• Output (Level/Impedance)
DVR/VCR, MONITOR OUT. . . . . . . . .1 Vp-p/75 Ω
• Frequency response
DVR/VCR, DVD/BD,
TV/SAT MONITOR . . . . . .5 Hz to 7 MHz dB
Signal-to-Noise Ratio . . . . . . . . . . . . . . . . . .55 dB
Crosstalk . . . . . . . . . . . . . . . . . . . . . . . . . . . .50 dB
Component video section
• Input (Sensitivity/Impedance)
DVD/BD, TV/SAT, DVR/VCR. . . . . . . .1 Vp-p/75 Ω
• Output (Level/Impedance)
MONITOR OUT . . . . . . . . . . . . . . . . . .1 Vp-p/75 Ω
• Frequency response
DVD/BD, TV/SAT,
DVR/VCR
MONITOR . . .5 Hz to 40 MHz dB
Signal-to-Noise Ratio . . . . . . . . . . . . . . . . . .60 dB
HDMI Section
Input. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19 pin x2
Output . . . . . . . . . . . . . . . . . . .19 pin (5 V, 55 mA)
FM Tuner Section
Frequency Range . . . . . . . .87.5 MHz to 108 MHz
Usable Sensitivity . . . . . . . . . Mono:13.2 dBf, IHF
(1.3 µV/75 Ω)
50 dB Quieting Sensitivity . . . . . .Mono: 20.2 dBf
Stereo: 38.6 dBf
Signal-to-Noise Ratio . . .Mono: 73 dB (at 85 dBf)
Stereo: 70 dB (at 85 dBf)
Distortion. . . . . . . . . . . . . . . Stereo: 0.5 % (1 kHz)
Alternate Channel Selectivity. . . . . . . . . . . .60 dB
(400 kHz)
Stereo Separation. . . . . . . . . . . . . . 40 dB (1 kHz)
Frequency Response . . . . . . . . . .30 Hz to 15 kHz
(±1 dB)
Antenna Input (DIN). . . . . . . . . 75 Ω unbalanced
AM Tuner Section
Frequency Range . . . . . . . . .531 kHz to 1602 kHz
Sensitivity (IHF, Loop antenna) . . . . . . .350 µV/m
Signal-to-Noise Ratio . . . . . . . . . . . . . . . . . .50 dB
Antenna. . . . . . . . . . . . . . . . . . . . . . Loop antenna
Miscellaneous
Power requirements
. . . . . . . . . . . . . . . AC 220 V to 230 V, 50 Hz/60 Hz
Power consumption . . . . . . . . . . . . . . . . . .290 W
In standby. . . . . . . . . . . . . . . . . . . . . . . . . 0.5 W
Dimensions
. . . . . 420 mm (W) x 158 mm (H) x 352.5 mm (D)
Weight (without package). . . . . . . . . . . . . . 8.1 kg
Furnished Parts
Microphone (for Auto MCACC setup) . . . . . . . . 1
Remote control . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Dry cell batteries (AA size IEC R6) . . . . . . . . . 2
AM loop antenna. . . . . . . . . . . . . . . . . . . . . . . . . 1
FM wire antenna . . . . . . . . . . . . . . . . . . . . . . . . . 1
Warranty card . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Operating instructions
Note
• Specifications and the design are subject
to possible modifications without notice,
due to improvements.
RECEIVER
INPUT SELECT
TV CTRL
SOURCE
TV DVR
AMFM
CD-R
CD
PORTABLE
iPod USB
DVD
RECEIVER
RECEIVER CONTROL
TV CONTROL
AV PARA ME TE R
T.EDIT MENU
RETURNSETUP
GUIDE
PTY SEARCH
ENTER
TUNE TUNE
ST ST
MPX
DIMMER SLEEP
D.ACCESS
SIGNAL SEL
TV CH
INPUT
SELECT
RECEIVER
MULTI CONTROL
MASTER VOLUME
ONE TOUCH
COPY
CH
+
CH
-
AUTO/ DIRECT
PHASE
MUTE
ADV SURR
SOUND
RETRIEVER
STEREO/
A.L.C.
ACOUSTIC
EQ
CH SEL
STANDARD
DIALOG
LEVEL
REC
TV/DTV
AUDIO
SUBTITLE
DVD
REC STOP
HDD
TUNER DISP
CLASS
DISC
A
B
C
D
E
SR
+
iPod CTRL
ENTER
INFO
SHIFT
TV VOL
MIDNIGHT
ANALOG ATT
+
10
EON
JUKEBOX
TOP MENU

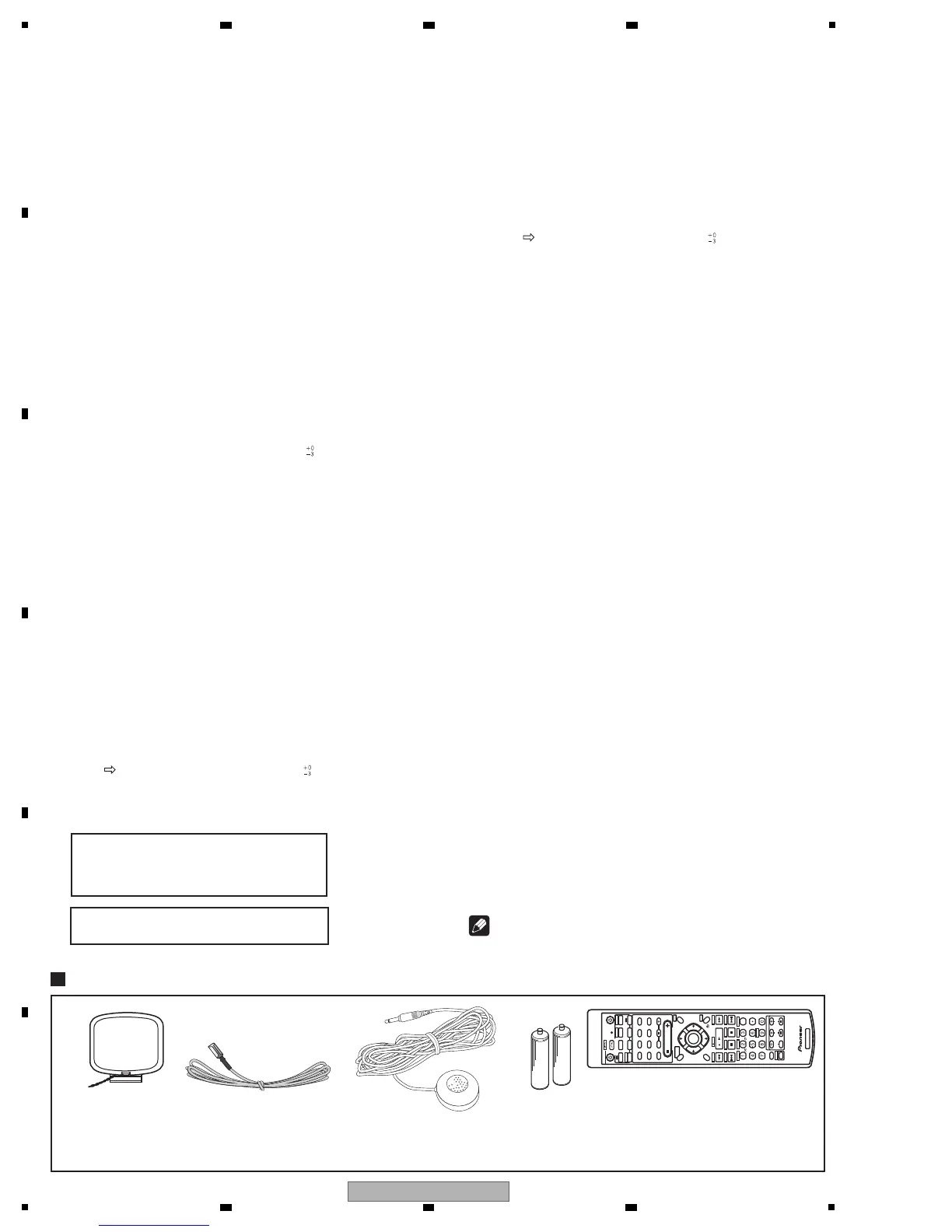

Accessories
Remote control
(VSX-918V-K : XXD3166)
(VSX-918V-S : XXD3167)
(VSX-818V-K : XXD3166)
(VSX-818K-S : XXD3167)
AM loop antenna
(ATB7013)
FM wire antenna
(ADH7030)
AA size IEC R6
Dry cell batteries (x2)
Microphone
(for Auto MCACC setup)
(APM7008)

Pioneer VSX-918V-K Specifications

General

Impedance	8 Ω
RMS rated power	130 W
Audio output channels	5.1 channels
Signal-to-Noise Ratio (SNR)	88 dB
Frequency band	0.005 — 100 GHz
Dimensions (WxDxH)	420 x 352.5 x 158 mm
Power requirements	220 — 230 V, 50/60 Hz
Connectivity technology	Wired
Headphone outputs	1
Product color	Black
Power consumption (standby)	0.5 W
Power consumption (typical)	290 W

Weight and Dimensions

Weight	8100 g
