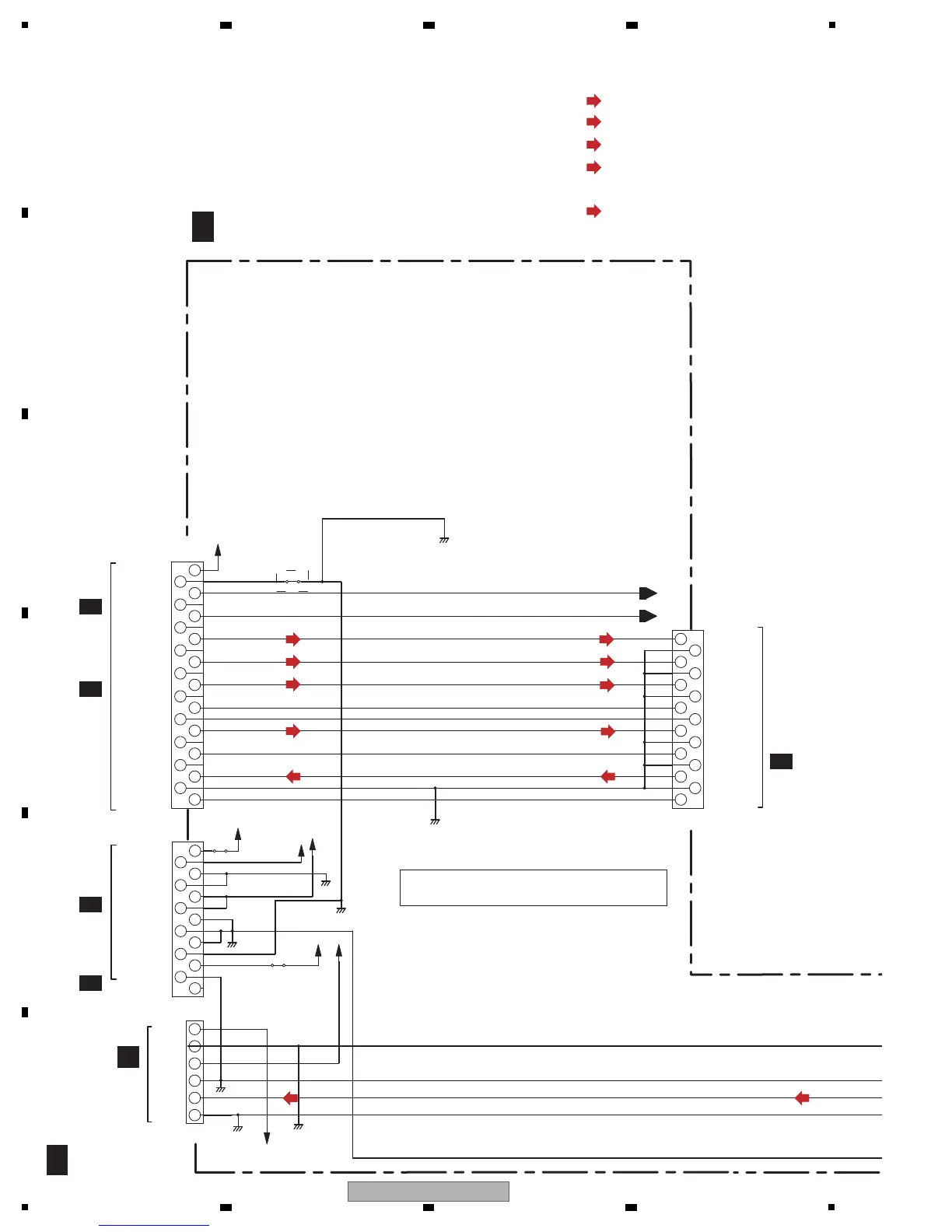

10.9 POWER PACK ASSY (2/2)
CN803
CN805
CN806
213 645
2
1
4
5
3
9
10
7
8
6
11
12
13
1
2
8
7
6
5
4
3
13
15
12
11
10
9
14
16
19
20
17
21
18
15
14
10
8
11
12
9
13
5
3
4
7
6
2
1
-12V
GNDA
GNDU
KM200TA6
GAV
XKP3066
DGRTN
V+5D1+12V
GDAC
GNDD
V+7D
AD+5V
V+5D2
W212
XKP3070
V+5D1
GDAC
GNDD
TO VIDEO ASSY
SWOUT
GNDA
-12V
GNDU
+12V
GAV
DGRTN
DGRTN
GNDD
V+5D
UGRTN
NC
TO DSP+USB MODULE(818,518/J) TO DSP+HDMI+USB MODULE(918)
W170
V+5A
V+5D
V+5D
GNDA(DAG)
GNDA(DAG)
DGRTN
RIN
V+7D
GNDA(DAG)
W169
RCMUT/OVF
FLO
GNDA(DAG)
FRO
LIN
GNDA(DAG)
CO
SWO
SLO
GNDA(DAG)
GNDA(DAG)
SRO
GNDA(DAG)
V+5V(USB)
SBLO
SBRO
GNDD
GNDA(DAG)
GNDA(DAG)
STBY
POWER PACK ASSY(2/2)
XKM3010
CN815
TO MAIN ASSY
(MAIN ASSY 1/3)
RIN
GNDA(DAG)
LIN
GNDA(DAG)
RCMUT/OVF
FLO
FRO
GNDA(DAG)
SBRO
SBLO
CO
GNDA(DAG)
SWO
GNDA(DAG)
SLO
GNDA(DAG)
SRO
C 2/2
C 2/2
POWER PACK ASSY
(XWZ4326)
CN302
P
CN1
B 3/4
CN1
V 3/5
CN2
B 2/4
CN2
V 2/5
CN109
A 1/3
(FL)
: Audio Signal Route (Front L ch)
(SL)
: Audio Signal Route (Surround L ch)
(C)
: Audio Signal Route (Center ch)
(SW)
: Audio Signal Route (SubWoofer ch)
(L)
: Audio Signal Route (L ch)
(FL)
(L)
(L)
(SL)
(C)
(SW)
(FL)
(SL)
(C)
(SW)
(SW)
(SW)

Pioneer VSX-918V-K Specifications

General

Impedance	8 Ω
RMS rated power	130 W
Audio output channels	5.1 channels
Signal-to-Noise Ratio (SNR)	88 dB
Frequency band	0.005 — 100 GHz
Dimensions (WxDxH)	420 x 352.5 x 158 mm
Power requirements	220 — 230 V, 50/60 Hz
Connectivity technology	Wired
Headphone outputs	1
Product color	Black
Power consumption (standby)	0.5 W
Power consumption (typical)	290 W

Weight and Dimensions

Weight	8100 g
