9850064 R03 - 2021 650 / 850 Matryx Trail Performance / Crossover Snowmobile Service Manual
© Copyright Polaris Inc.
REAR SUSPENSION

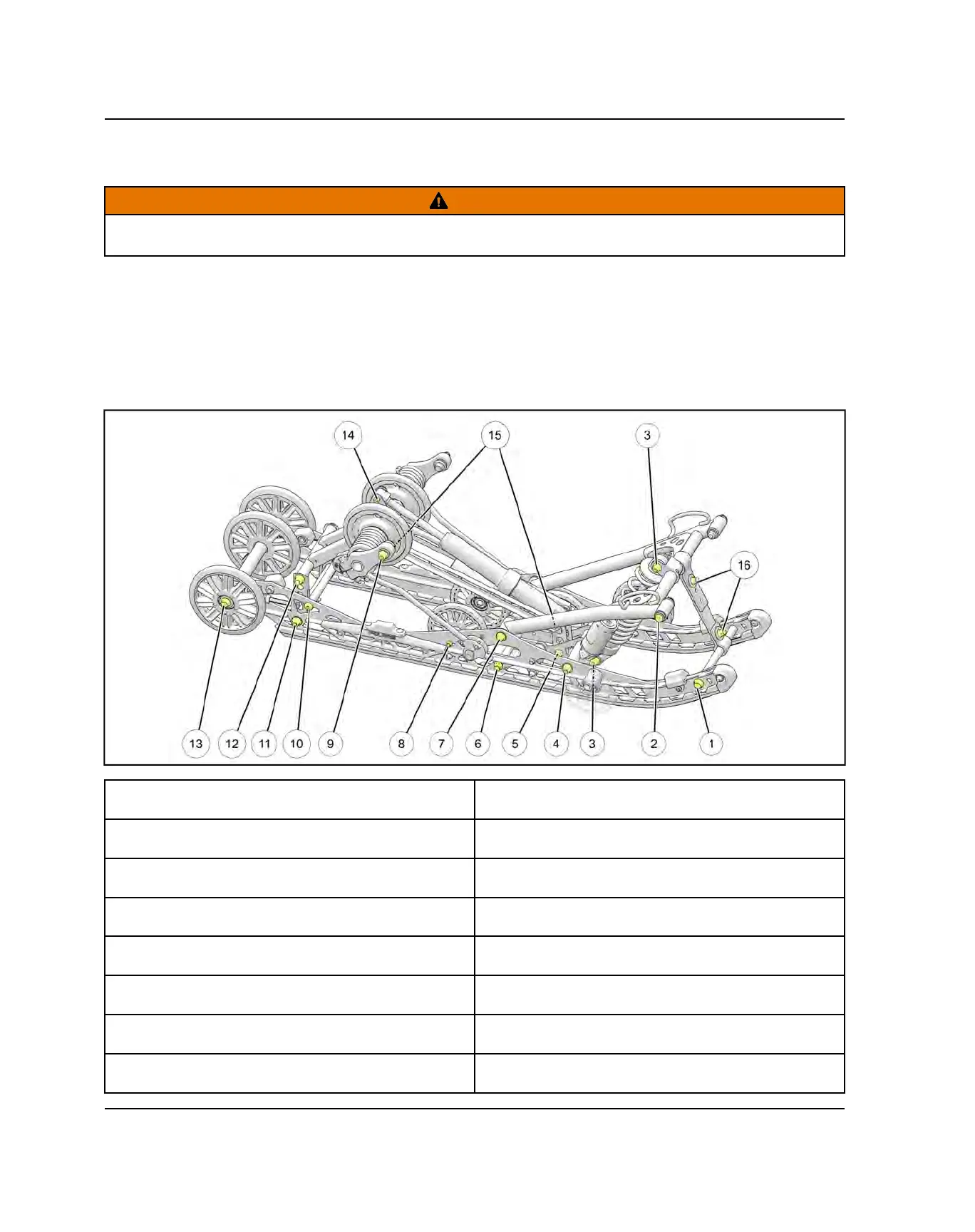

REAR SUSPENSION INSPECTION - PRO-CC
WARNING
Improper fastener torque or rear suspension component damage may cause loss of vehicle control, resulting in
serious injury or death.
Each week, or before a long ride, check the following items for damage, loose fasteners, and function:
• Rear Torque Arm / Rear Pivots
• Rear Idler Wheels / Shafts
• Bogie / Carrier Wheels / Shafts / Fasteners
• Front Torque Arm / Limiter Straps
• Shocks
• Rail Sliders
• Track
q
Front Cross Shaft Fastener
33 ft-lbs (45 N·m) Apply Loctite 263 to fastener
o
Rear Torque Arm to Tunnel Fastener
33 ft-lbs (45 N·m)
w
Front Torque Arm to Tunnel Fastener
46 ft-lbs (63 N·m)
a
Rear Cross Shaft Fastener
33 ft-lbs (45 N·m) Apply Loctite 263 to fastener
e
FTS Mounting Fasteners
33 ft-lbs (45 N·m)
s
Rear Pivot Arm Fastener
56 ft-lbs (76 N·m)
r
Front H-Bracket Fastener
56 ft-lbs (76 N·m)
d
Rear Torque Arm to Rear Pivot Arm Fastener
33 ft-lbs (45 N·m)
t
Shock Pivot Arm to H-Bracket Fastener
24 ft-lbs (33 N·m)
f
Rear Idler Fastener
33 ft-lbs (45 N·m)
y
Rear H-Bracket Fastener
46 ft-lbs (63 N·m)
g
RTS Mounting Fasteners
24 ft-lbs (33 N·m)
u
Front Torque Arm to Rail Fastener
56 ft-lbs (76 N·m)
h
Shock Rod Fasteners
17 ft-lbs (23 N·m)
i
Bogie Wheel Fastener
10 ft-lbs (14 N·m)
j
Limiter Strap Fasteners
12 ft-lbs (16 N·m)
MAINTENANCE
