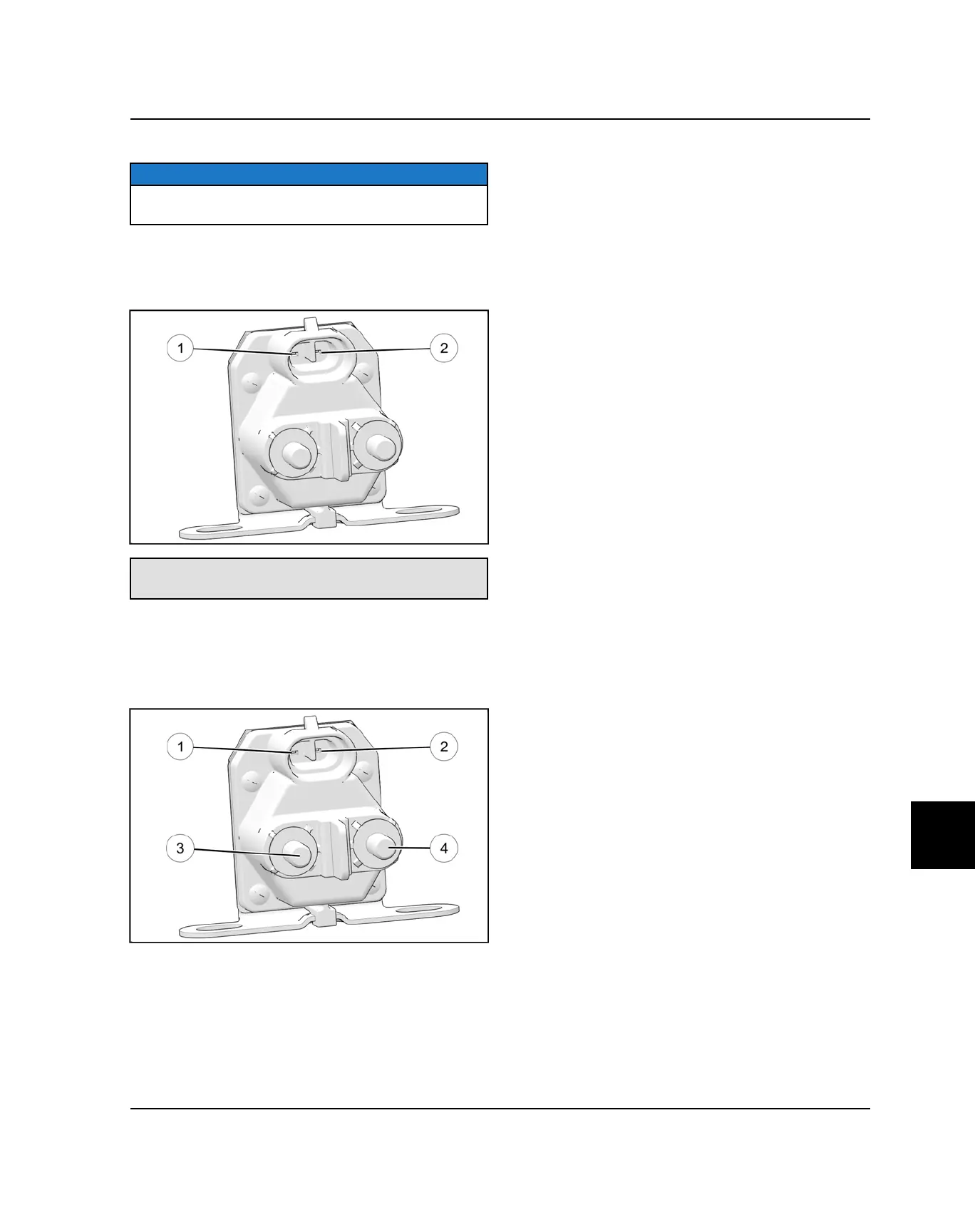

STARTER SOLENOID BENCH TEST
NOTICE
Applies only to models equipped with a battery / electric
start wire harness.
The starter solenoid can be tested using a digital
multimeter. Test coil resistance across the connector
terminals
q
and
w
at room temperature 77 °F (25 °C)
and compare to specification.
Starter Solenoid Coil Resistance:
2.5 Ω
Test the start solenoid by applying battery voltage to the
connector terminals
q
and
w
for a maximum of 5
seconds. With the solenoid energized at room
temperature 77 °F (25 °C), verify there is continuity
between the two red cable posts
e
and
r
.
If the solenoid does not pass either test, replace the
solenoid.
