REAR SUSPENSION INSPECTION - IGX 146
WARNING
Improper fastener torque or rear suspension component damage may cause loss of vehicle control, resulting in
serious injury or death.

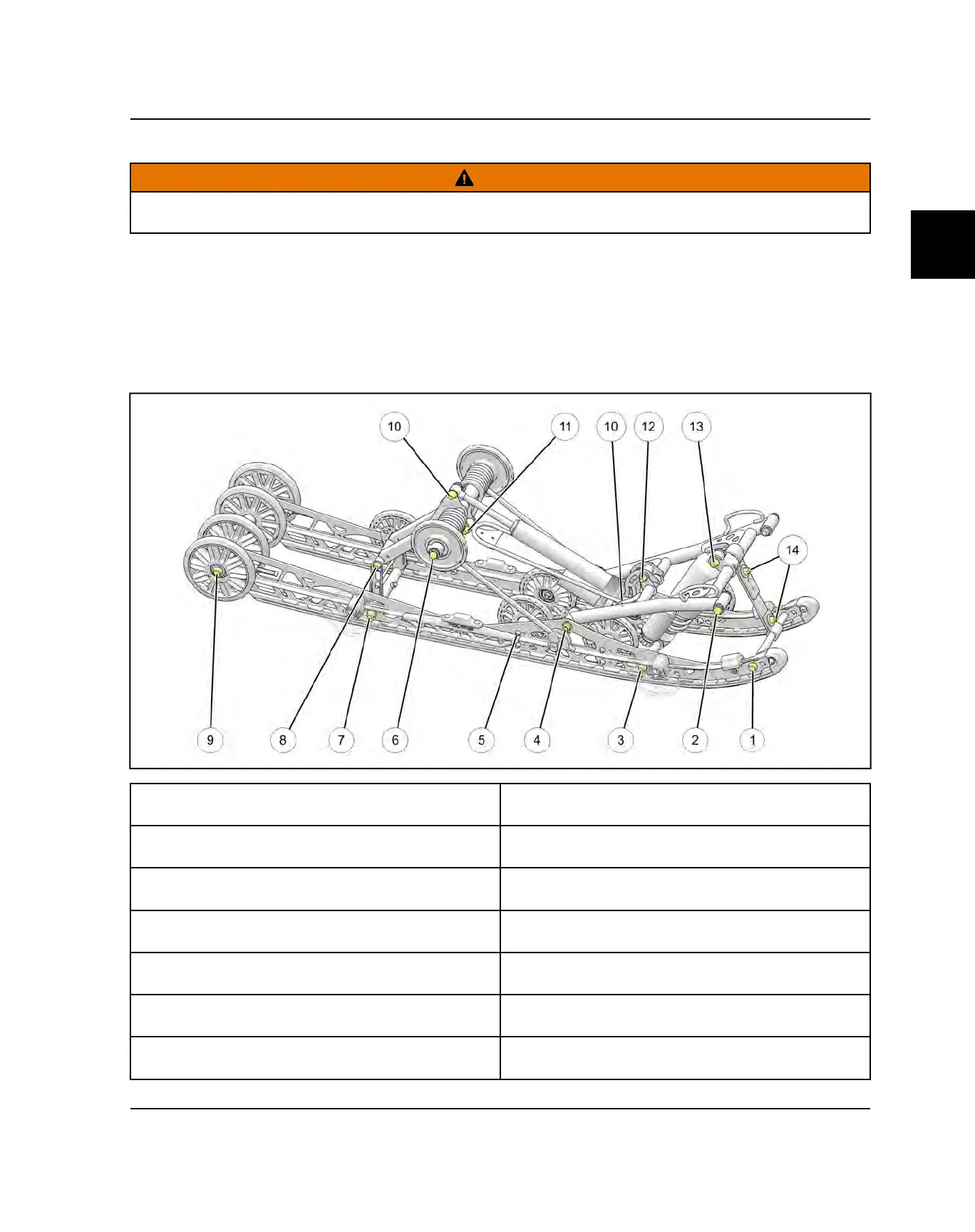

Each week, or before a long ride, check the following items for damage, loose fasteners, and function:
• Rear Torque Arm / Rear Pivots
• Rear Idler Wheels / Shafts
• Bogie / Carrier Wheels / Shafts / Fasteners
• Front Torque Arm / Limiter Straps
• Shocks
• Rail Sliders
• Track
q
Front Cross Shaft Fastener
33 ft-lbs (45 N·m) Apply Loctite 263 to fastener
i
Rear Torque Arm to Rear Pivot Arm Fastener
17 ft-lbs (23 N·m)
w
Front Torque Arm to Tunnel Fastener
50 ft-lbs (68 N·m)
o
Rear Idler Fastener
33 ft-lbs (45 N·m)
e
FTS Mounting Shaft Fastener
50 ft-lbs (68 N·m) Apply Loctite 263 to fastener
a
RTS Mounting Fasteners
33 ft-lbs (45 N·m)
r
Front Torque Arm to Rail Fastener
46 ft-lbs (63 N·m)
s
Upper Shock Rod Fastener
33 ft-lbs (45 N·m)
t
Bogie Wheel Fastener
10 ft-lbs (14 N·m)
d
Shock Pivot Fastener
24 ft-lbs (33 N·m)
y
Rear Torque Arm to Tunnel Fastener
46 ft-lbs (63 N·m)
f
FTS Mounting Fastener
33 ft-lbs (45 N·m)
u
Rear Pivot Arm Fastener
33 ft-lbs (45 N·m)
g
Limiter Strap Fasteners
12 ft-lbs (16 N·m)
