3.102
9850064 R03 - 2021 650 / 850 Matryx Trail Performance / Crossover Snowmobile Service Manual
© Copyright Polaris Inc.
RECOIL

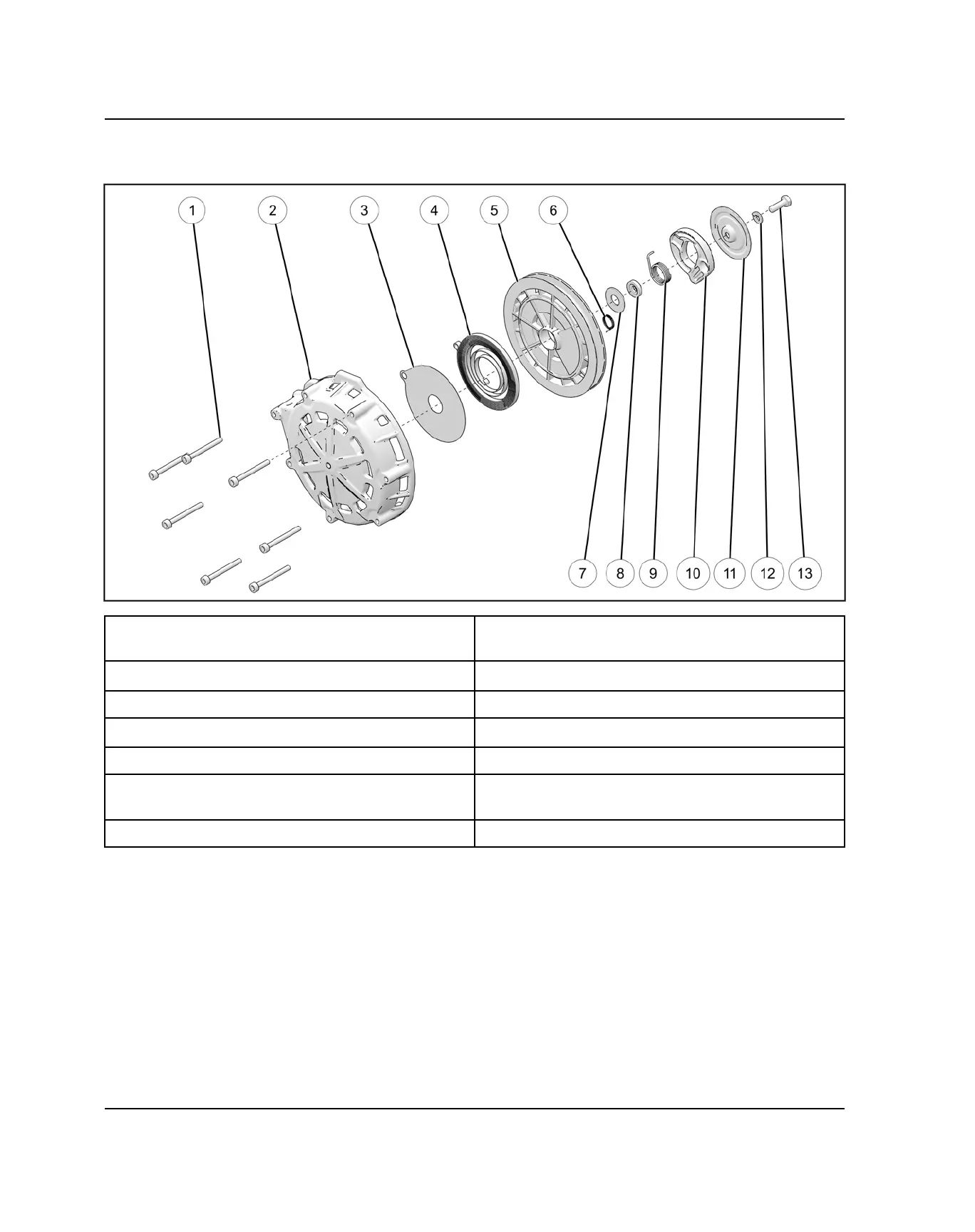

RECOIL ASSEMBLY VIEW
q
Recoil Housing Fasteners
9 ft-lbs (12 N·m)
i
Recoil Spacer
w
Recoil Housing
o
Recoil Friction Spring
e
Slide Plate
a
Recoil Ratchet
r
Recoil Spring
s
Friction Plate
t
Recoil Reel
d
Washer
y
Recoil Return Spring
f
Recoil Friction Plate Fastener
15 ft-lbs (20 N·m)
u
Recoil Washer
