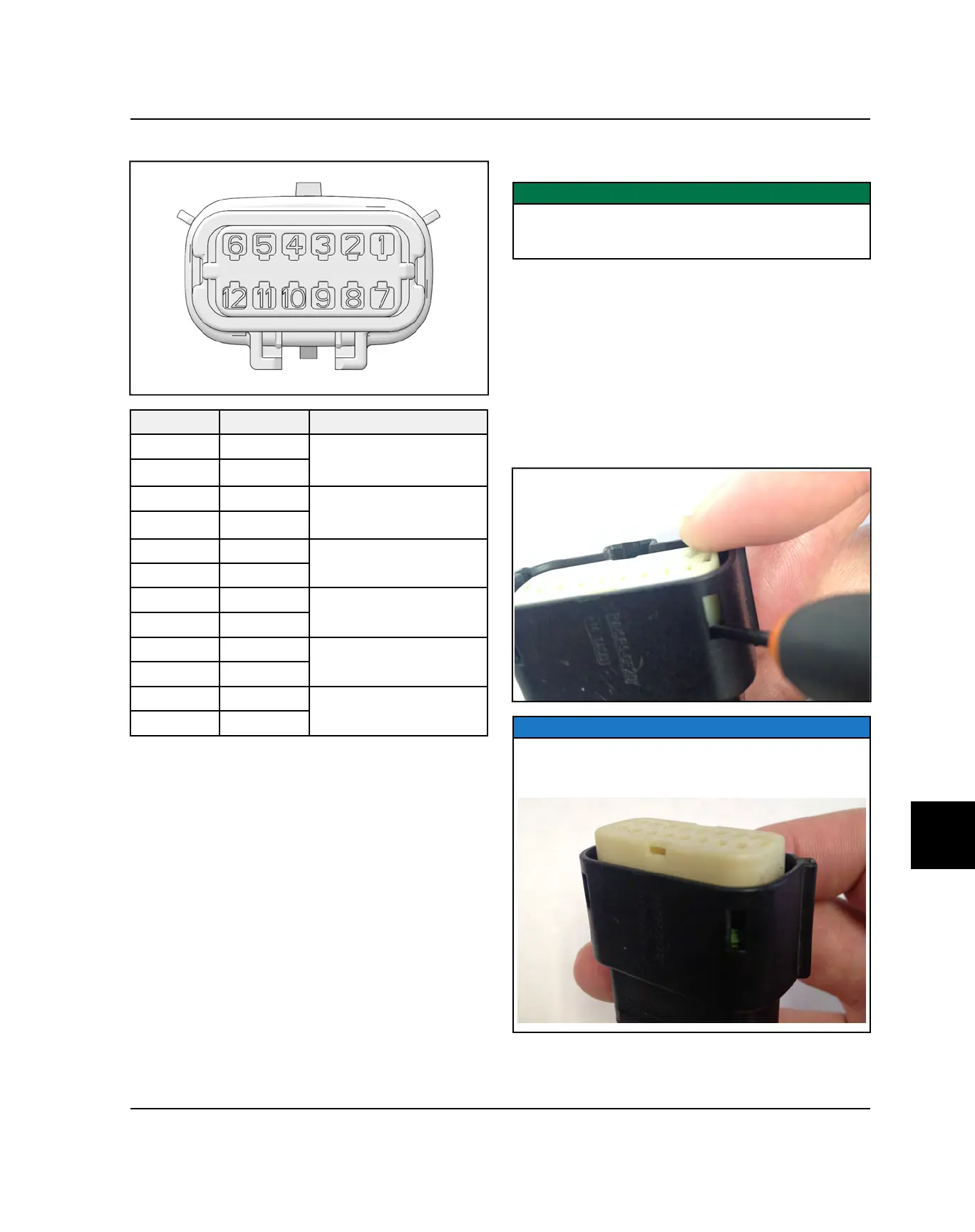

HANDLEBAR CONNECTIONS PINOUT
PIN COLOR COMPONENT
1 Yellow
LH Heater
2
Grey
3 Red
Handlebar Jumper
4
Orange
5 Blue
RH Heater
6 Brown
7 Green
Throttle Control Assembly
8 White
9 Black
Auxiliary Stop Switch
10 Black / Blue
11 Black / Red
Throttle Switch
12 Black / Blue
HANDLEBAR HARNESS CONNECTOR TER-
MINAL INSPECTION
IMPORTANT
Do not use the supplied terminal removal tool to pry the
white connector lock, it will damage the terminal
removal tool.
1. Remove the side panels and hood.
2. Remove the resonator.
3. Disconnect the handlebar connections connector
and/or the LH controls connector.
4. Carefully raise the white terminal lock in the chassis
connector into service mode by using a small flat
bladed screwdriver to pry upward gently through the
access windows in the side of the outer connector
body. Pry through both windows to gently rock the
white lock upward.
NOTICE
The white terminal lock will come up 0.15 in (3.8 mm)
and stop due to retaining tabs on the sides. There may
be an audible click noted.
