SPEED SENSOR HARNESS ROUTING

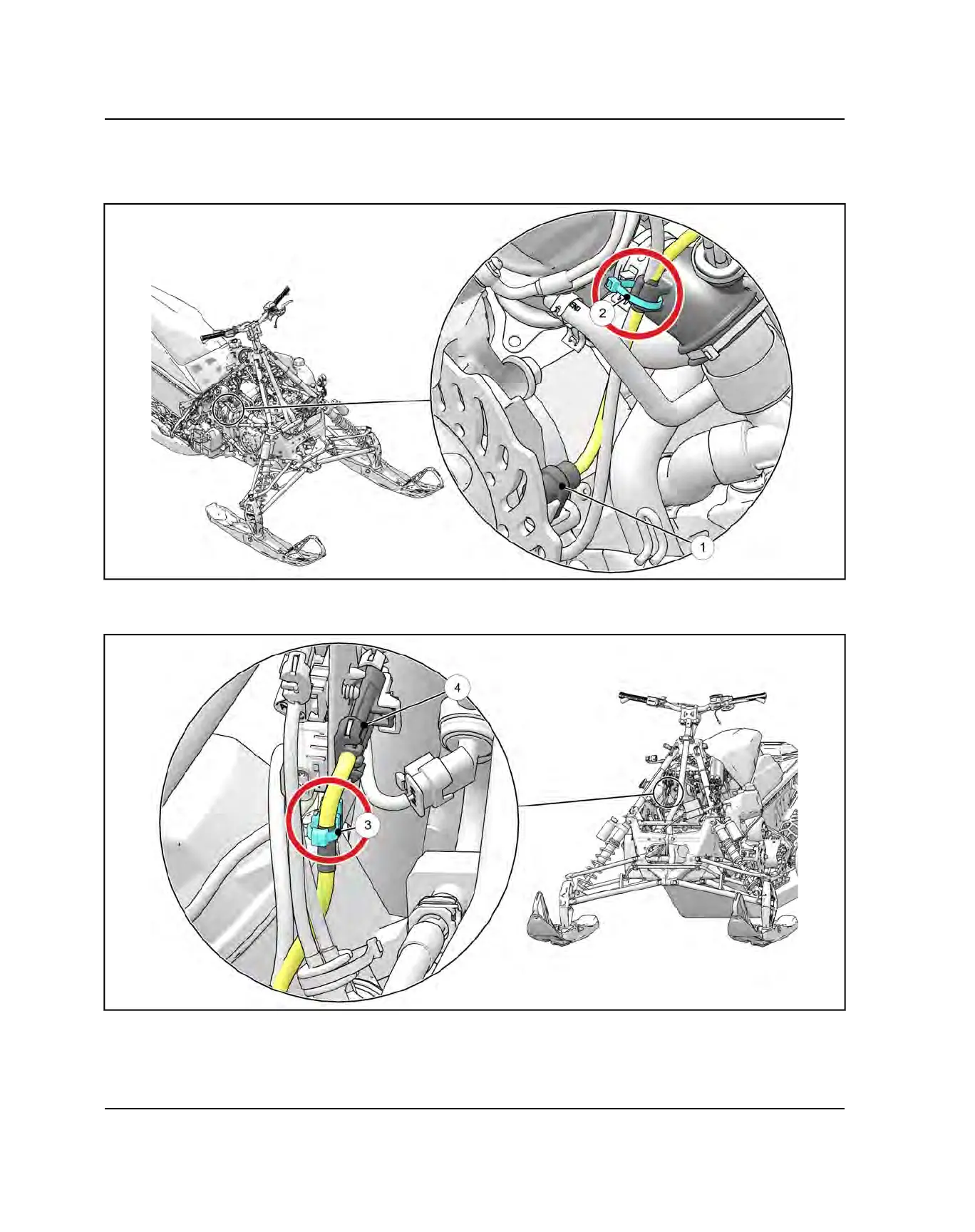

1. The speed sensor
q
is secured to the chaincase. Route the speed sensor harness under the coolant hose and
secure in the hose/electrical support with a panduit
w
.
2. Continue to route the speed sensor harness upward toward the connector placement bracket and secure with an
edge clip / panduit strap
e
.
3. Complete routing by connecting speed sensor connector
r
to the main harness connector. Secure the speed
sensor connector to the connector placement bracket using the Christmas tree clip.
