3.128
9850060 R02 - 2020-2021 850 AXYS™ Long Track Snowmobile Service Manual
© Copyright Polaris Inc.

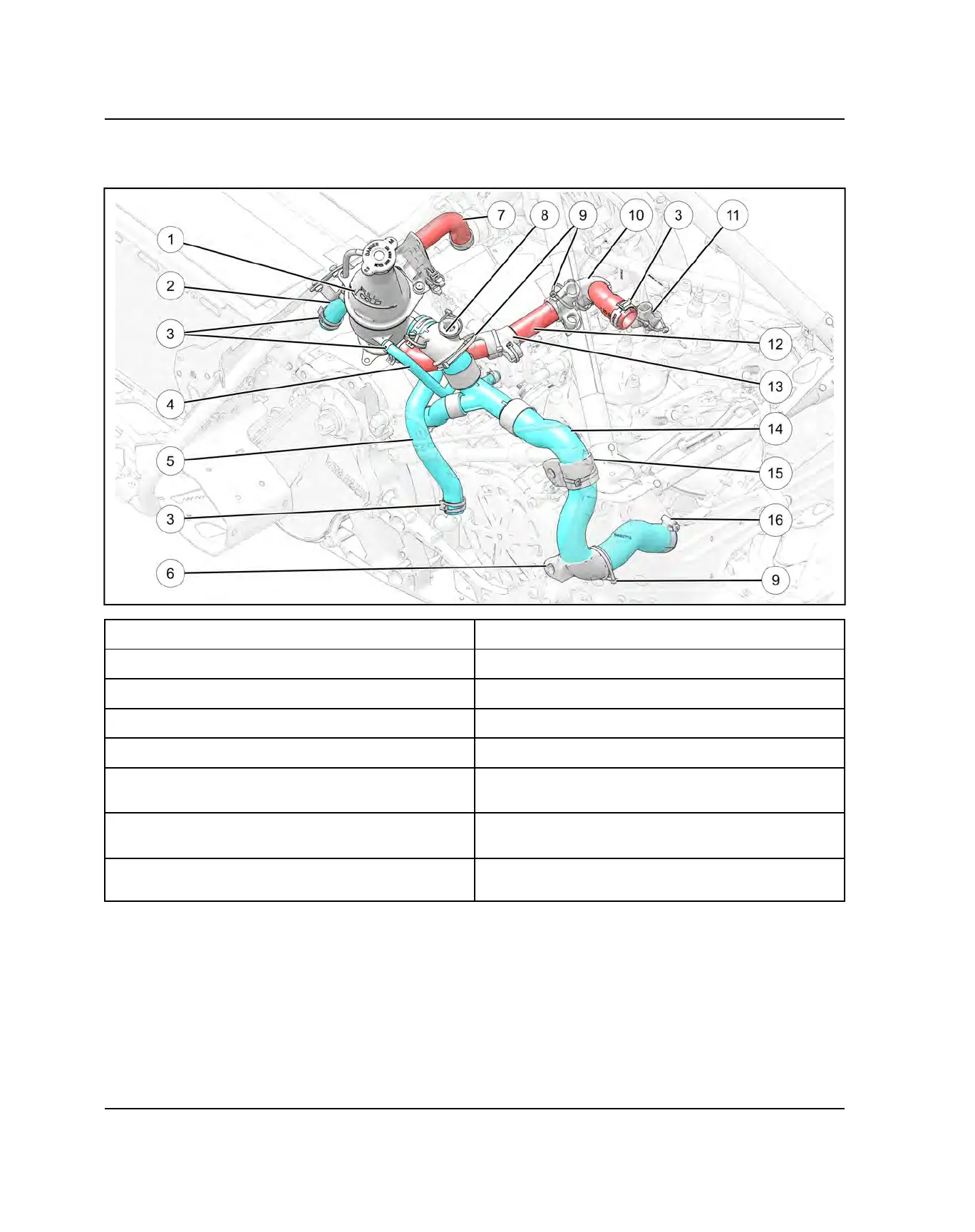

COOLING SYSTEM ASSEMBLY (SKS)
Coolant hoses are marked with alignment marks to aid proper hose routing when servicing the coolant system.
q
Coolant Bottle
o
Panduit Strap
w
Hose, Tunnel / Bottle
a
Hose / Throttle Cable Support
e
Springband Clamp
s
Fuel / Oil Line Support
r
Hose, Throttlebody / Coolant Bottle
d
Hose, Bypass
t
Hose, Front Cooler Feed
f
Stator Wire Support
y
Hose Support
Mounted on recoil housing
g
Assm - Hose, Coolant Bottle / Engine
u
Hose, Bottle / Tunnel
h
Hose Support
Mounted to upper crankcase half
i
Hose / Electrical Wires Support
j
Hose Clamp
5 ft-lbs 7 Nm
ENGINE / COOLING / EXHAUST
