TRACK TENSION ADJUSTMENT
CAUTION
Perform procedure in well-ventilated area.
NOTICE
Image for reference only.

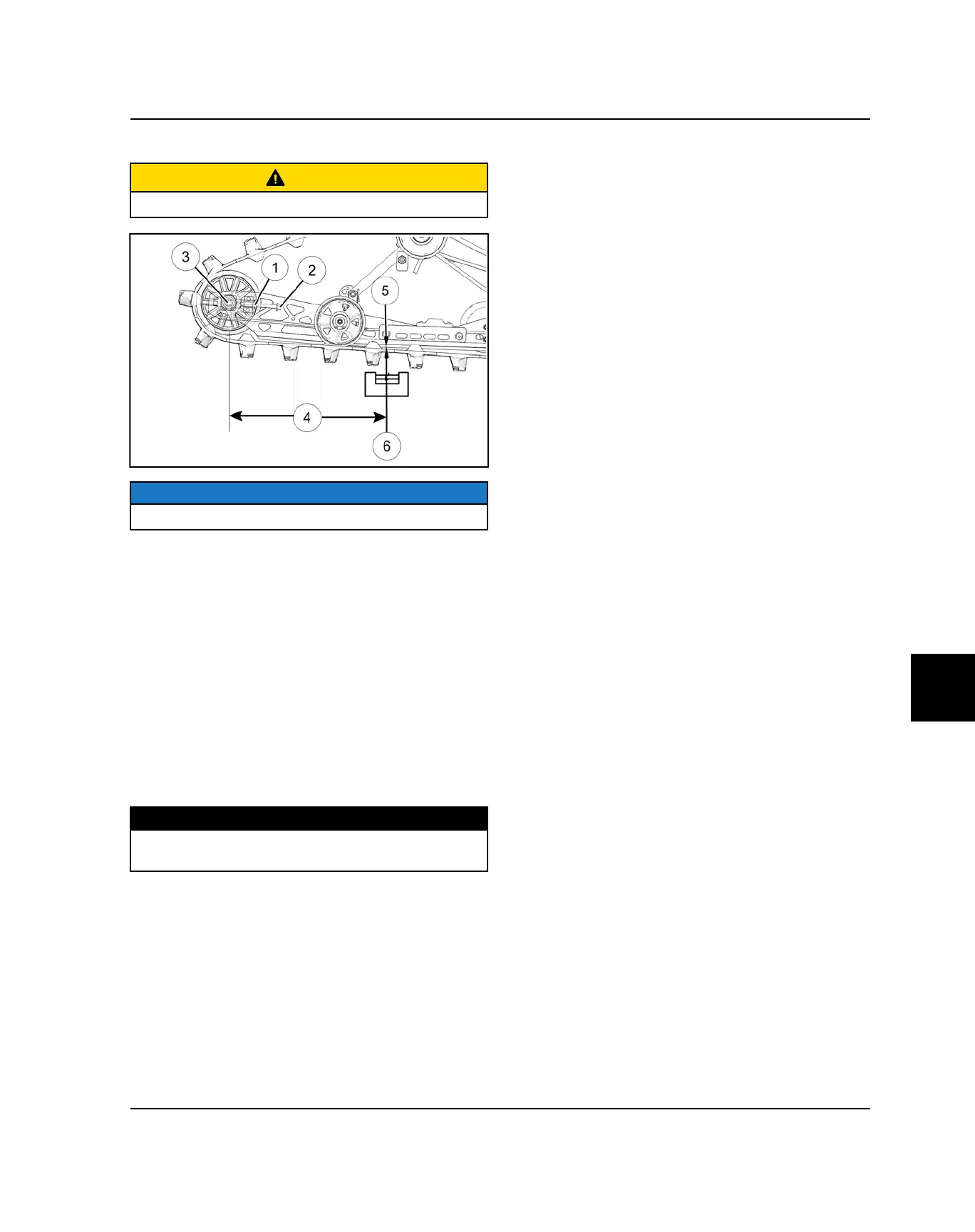

1. Loosen the rear idler shaft bolt
e
.
2. Loosen the locknuts
q
.
3. Tighten or loosen the track adjusting screws
w
to
provide equal adjustment on both sides of the track.
4. Repeat the measurement on the other side of the
track.
5. Remove the weight. Start the engine and slowly
rotate the track at least five revolutions. Let the track
come to a stop (do not apply brakes).
6. Check track alignment and adjust as necessary.
7. Tighten the locknuts.
8. Tighten idler shaft fasteners to specification.
TORQUE
Rear Idler Fastener:
55 ft-lbs (75 Nm) +/- 10%
