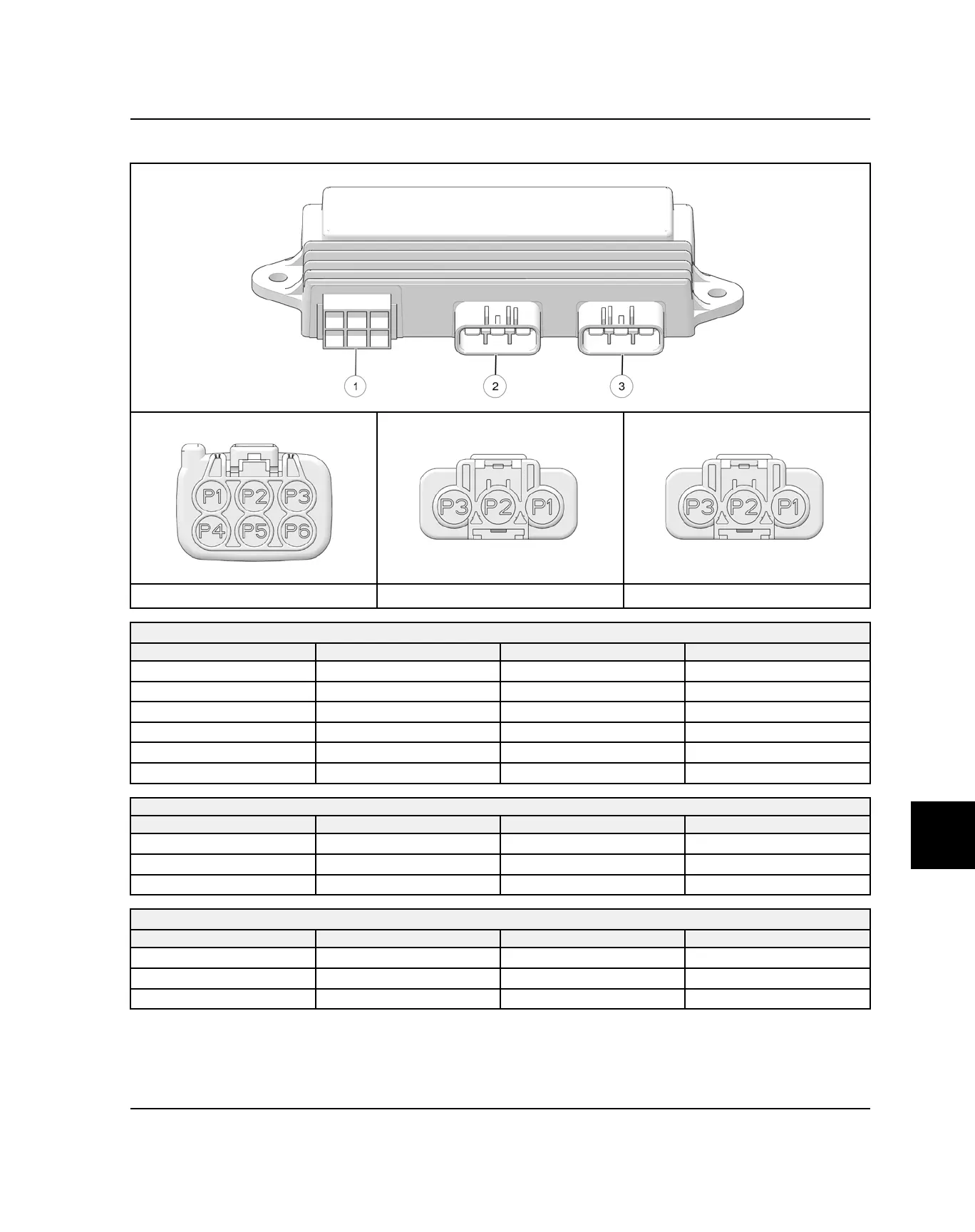

PBR DETAILS
q
PBR (ECU / CAN / Ground)
w
Stator Charging Lead
e
PBR (DC Power)
PBR (ECU / CAN / GROUND)
PIN WIRE COLORS TO OR FROM COMPONENT FUNCTION
P1 Brown
PBR Ground #1 Splice
Chassis Ground
P2 Yellow
CAN HI Splice
CAN HI
P3 Brown
PBR Ground #1 Splice
Chassis Ground
P4 Brown
PBR Ground #1 Splice
Chassis Ground
P5 Dark Green
CAN Low Splice
CAN Low
P6
Orange
Load Center ECU Power
STATOR CHARGING LEAD
PIN WIRE COLORS TO OR FROM COMPONENT FUNCTION
Y1 Yellow PBR
Alternating Current (AC)
Y2 Yellow PBR
Alternating Current (AC)
Y3 Yellow PBR
Alternating Current (AC)
PBR (DC POWER)
PIN WIRE COLORS TO OR FROM COMPONENT FUNCTION
P1 Red / White
Chassis Power #1 Splice
Chassis Power
P2 Red / Dark Blue
Injector Power Splice Injector Power Sense
P3 Red
Critical Power #2 Splice
Critical Power
BATTERY / ELECTRICAL
