9850060 R02 - 2020-2021 850 AXYS™ Long Track Snowmobile Service Manual
© Copyright Polaris Inc.
5.31
FUEL LINE
FUEL LINE ROUTING
SUPPLY LINE ROUTING
NOTICE
Images for reference only.

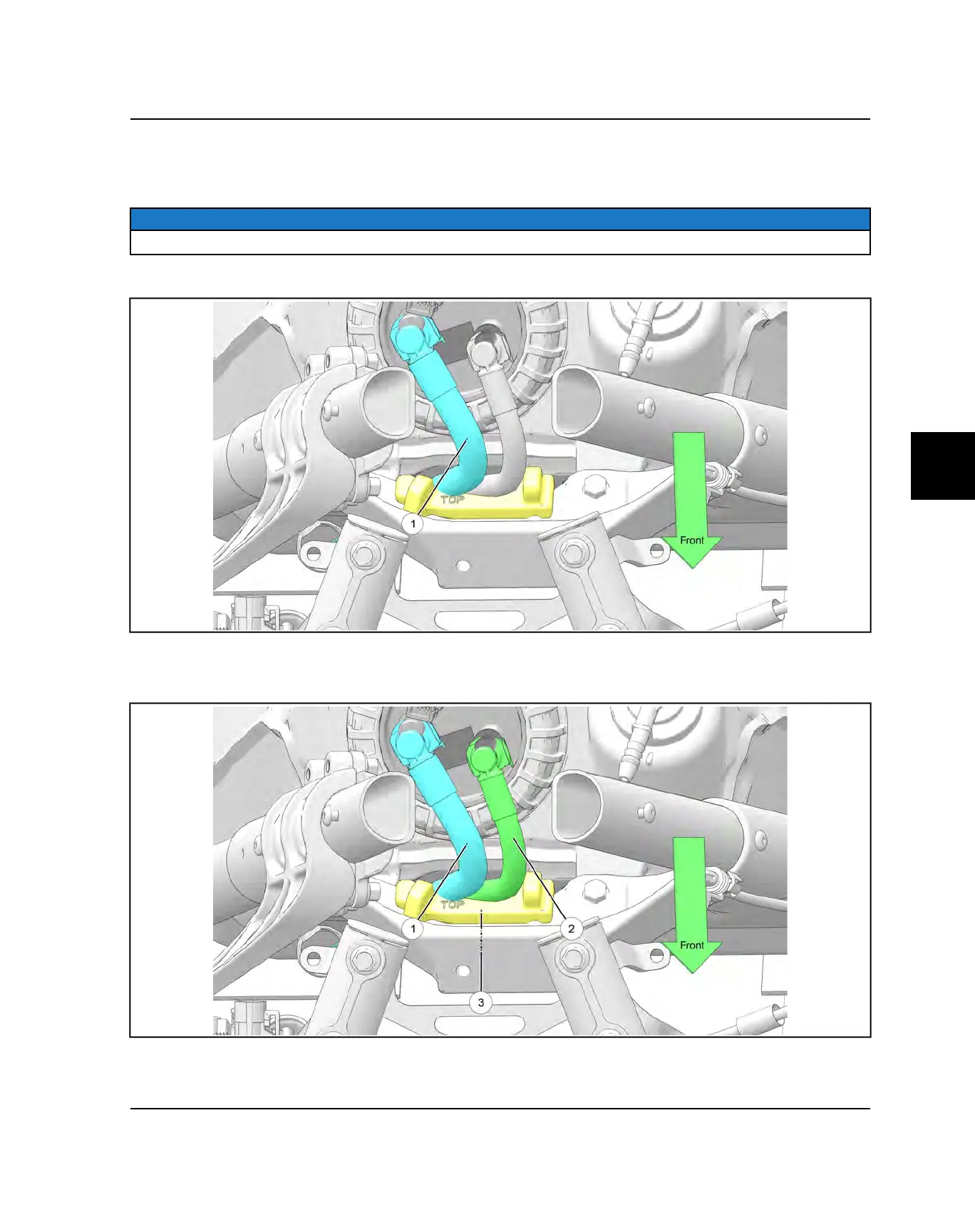

1. The fuel supply line should be connected to the fuel pump flange assembly in location shown below
q
.
Image is shown from above with arrow pointing toward the front of the vehicle. Handlebar and other parts removed
for visibility.
2. Both fuel lines should be routed behind, and rest against the fuel line bracket / retainement point
e
.
Image is shown from above with arrow pointing toward the front of the vehicle. Handlebar and other parts removed
for visibility.
FUEL SYSTEM
