7 - 27 BODY
MIRROR - SIDE REAR VIEW

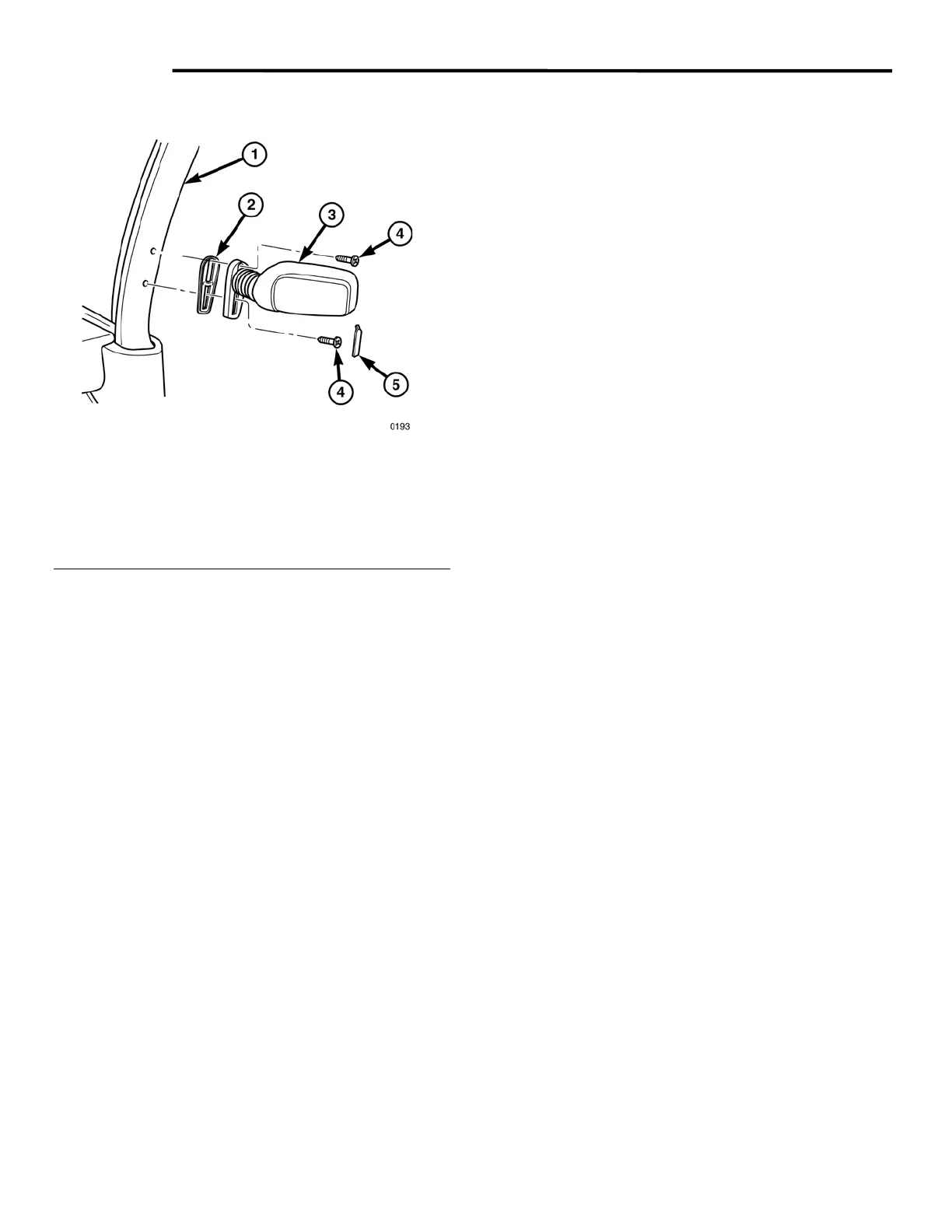

Fig. 28 Side Rear View Mirror
(typical - LH shown)
1 - Roof rail
2 - Mounting gasket
3 - Mirror assembly
4 - Screws - mounting, phillips-head
5 - Screw cover plate
DESCRIPTION
A driver's side rear view mirror is standard on all
vehicles. Passenger side mirrors are optional. Side
mounted rear view mirrors are attached to the front
portion of the roof rail. If vehicle is ordered with
optional hard doors, the mirrors are mounted on the
doors. Damaged mirrors must be replaced, as they
are not serviceable.
REMOVAL
1. Using small screwdriver, pry out lower screw
cover on base of mirror.
2. Position the rubber boot to access the upper
mounting screw.
3. Remove the 2 Phillips-head screws attaching
mirror to roof rail/door.
4. Remove mirror assembly and mounting gasket.
INSTALLATION
1. Install mirror assembly and mounting gasket.
2. Install the 2 Phillips head screws attaching the
mirror to roof rail/door.
3. Reposition the rubber boot to original position.
4. Install lower screw cover on mirror base.
GEM Service Manual November 2007
