BODY / STEERING / S USPENSION
5.11

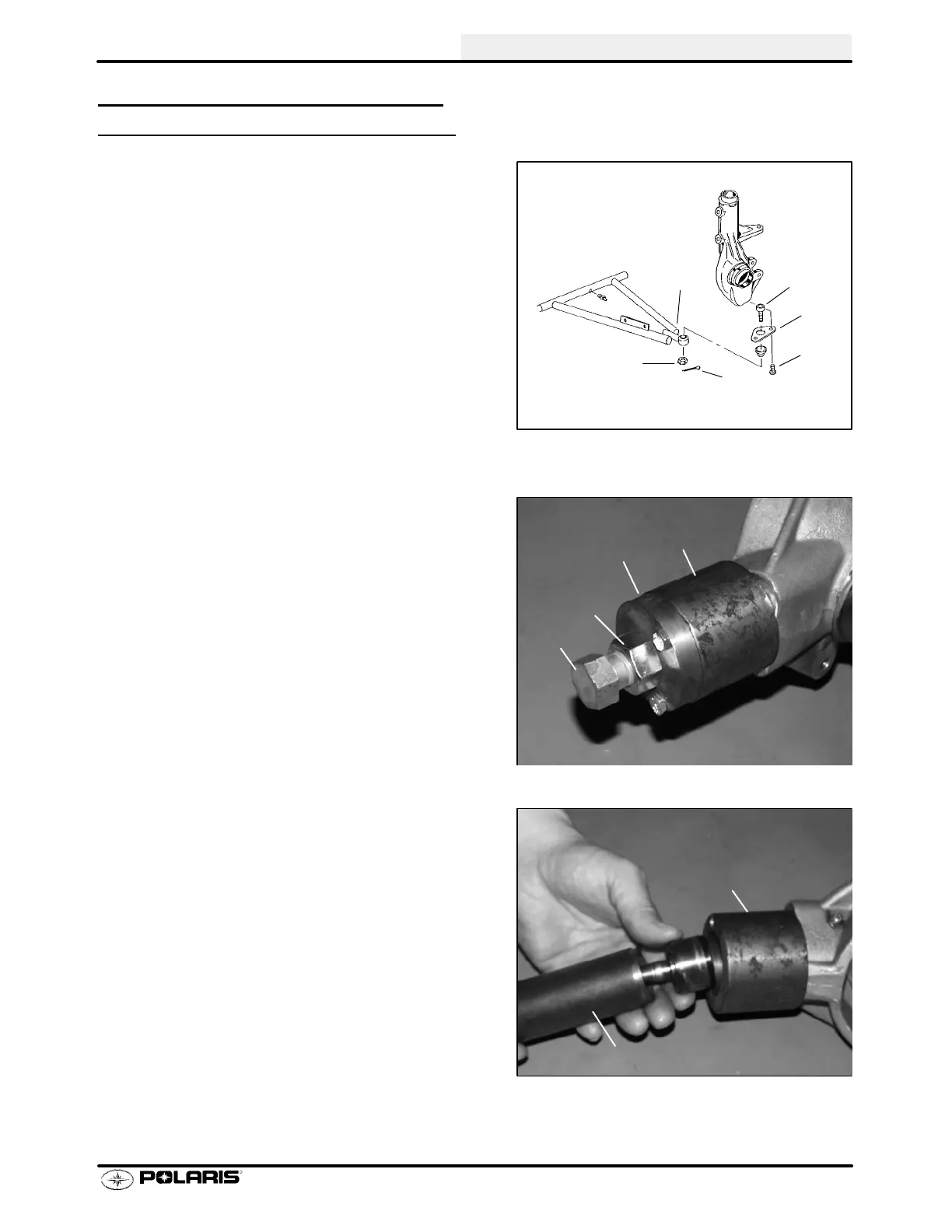

BALL JOINT REPLACEMENT
REFER TO ILLUSTRATION ON PAGE 5.9.
1. Loosen front wheel nuts slightly.
2. Elevate and safely support machine under
footrest/frame area.
CAUTION: Serious injury may result if machine tips
or falls. Be sure machine is secure before beginning
this service procedure.
3. Remove wheel nuts and wheels.
4. Remove cotter pin (A) from ball joint castlenut.
5. Remove castle nut (B) and separate A-arm (C)
from ball joint stud.
6. Remove screws (D) and ball joint retaining plate
plate (E).
7. Using ball joint removal / installation tool kit (PN
2870871), remove ball joint (F) from strut housing.
Refer to photos at right.
S Install pullerguide(A)withextensioncap(B).
S Apply greasetoextensioncapandthreadsof
puller bolt to ease removal.
S Threadbolt(D)withnut(C)ontoballjointstud
as shown.
S Apply heat to ease removal.
S Hold bolt (D) and turn nut (C) clockwise u nt il
ball joint is removed from strut housing.
8. To install new ball joint:
S Remove extension cap and attach puller
guide using short bolts provided in the kit.
S Insert new ball joint (E) into driver (F).
S Slide ball joint/driver assembly into guide.
S Apply heat to ease installation.
S Drive new joint into strut housing until fully
seated.
9. Apply Loctitet 242 (blue) to threads of retaining
plate screws or install newscrews withpre-applied
locking agent. Torque screws to 8 ft. lbs. (11 Nm).
10. Install A-arm on ball joint and torque castle nut to
25 ft. lbs. (35 Nm).
11. Reinstall cotter pin with open ends toward rear of
machine.
A
B
C
D
E
F
A
B
C
D
A
B
C
E
D
F
E
