DETAIL A
A
Castle Nut
¡
Bearing Race
Front Hub Clutch
Seal
Armature Plate
Brake Disc
Bearing Race
Bearing (1.000″ I.D.)
Garter Spring
Spacer
Cotter Pin
W asher
Wheel Nut
¡
Refer to text on page 7.5 for more information.
Detail
Front Hub Clutch
Bearing (1.000″ I.D.)
(Use new
cotter pin)
O-Ring
FINAL DRIVE
7.6

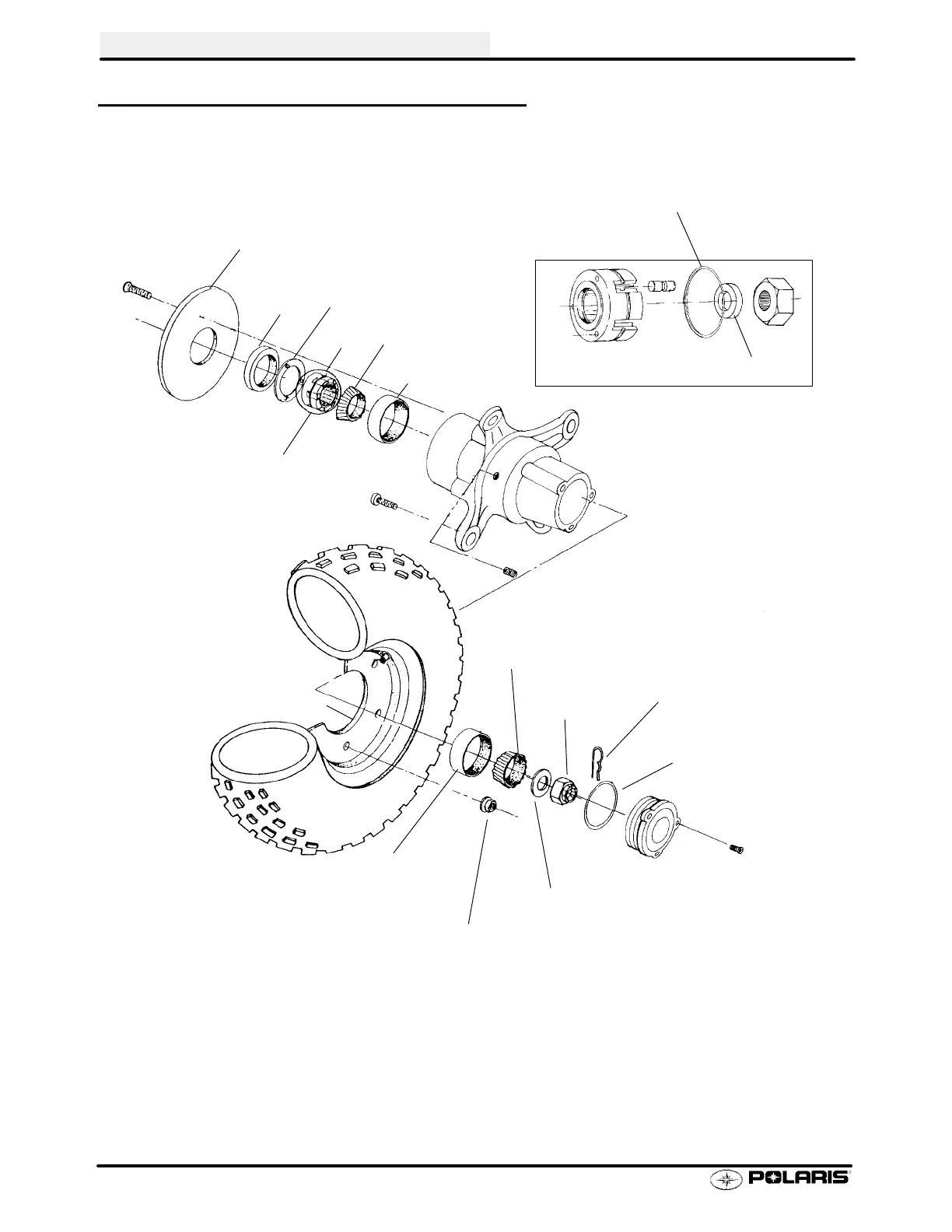

AWD FRONT HUB EXPLODED VIEW
