FINAL DRIVE
7.7

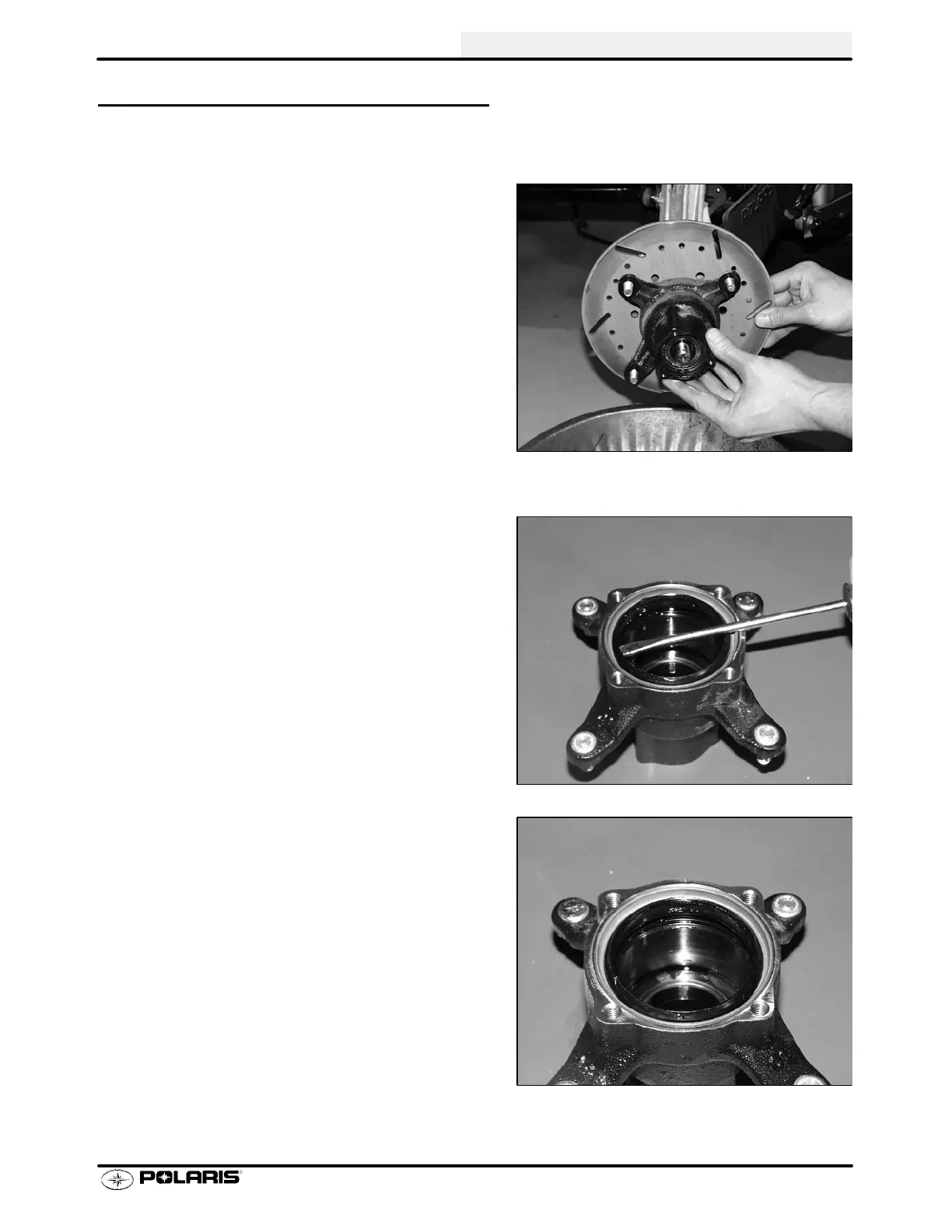

AWD HUB SEAL REPLACEMENT
1. Remove and disassemble front hub. Refer to
page 7.3.
2. Remove brake disc attaching bolts and brake
disc.
NOTE: If the attaching bolts are difficult to
remove, it may be helpful to heat the outer
surfaces of the hub in the area of the disc
mounting bolts, to soften the locking agent.
3. Apply heat to the hub seal area. When the hub
becomes too hot to touch, pry out the old seal as
shown. Do not damage the surface of the seal
cavity. Clean the hub in the seal mating area.
4. With spring side of new seal facing toward hub
casting, press it in until flush with brake disc
matingsurface. CAUTION: Donotuseahammer
as damage to the seal will result.
5. Thoroughly clean the brake disc with brake
cleaner . It is very important that the brake disc be
free of any oil or solvents.
6. Reinstall the brake disc using genuine Polaris
OEM bolts that have a pre-applied locking agent.
Do not substitute bolts or use old ones.
7. Installattachingbolts andtorqueto18ft. lbs.(25
Nm).
