Quectel EC200T Series User Manual

LTE Standard Module Series
EC200T Series Hardware Design
EC200T_Series_Hardware_Design 30 / 90
3.5.1.1. UART Application
If the host communicates with module via UART interface, the following preconditions should be met to let
the module enter sleep mode.
 Execute AT+QSCLK=1 to enable sleep mode.
 Drive MAIN_DTR to high level.
The following figure shows the connection between the module and the host.
MAIN_RXD
MAIN_TXD
MAIN_RI
MAIN_DTR
AP_READY
TXD
RXD
EINT
GPIO
GPIO
Module
Host
GND
GND

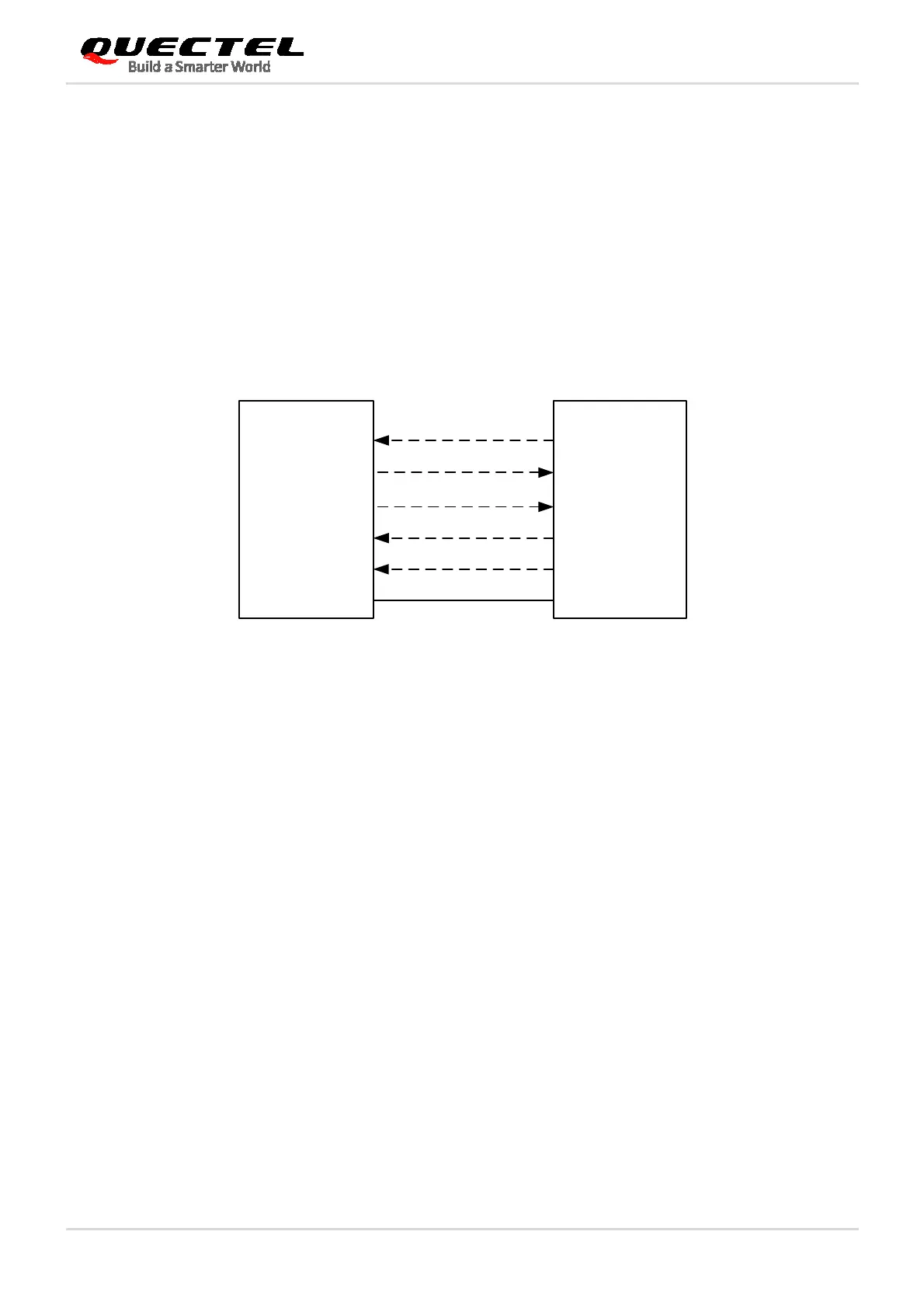

Figure 2: Sleep Mode Application via UART
 Driving MAIN_DTR to low level by host will wake up the module.
 When EC200T series has a URC to report, the URC will trigger the behavior of MAIN_RI pin. Please
refer to Chapter 3.17 for details about MAIN_RI behavior.
3.5.1.2. USB Application with USB Remote Wakeup Function
If the host supports USB Suspend/Resume and remote wakeup functions, the following three
preconditions must be met to let the module enter sleep mode.
 Execute AT+QSCLK=1 command to enable the sleep mode.
 Ensure the MAIN_DTR is kept at high level or kept open.
 The host’s USB bus, which is connected with the module’s USB interface, enters Suspend state.
The following figure shows the connection between the module and the host.
