LTE Standard Module Series
EC200T Series Hardware Design
EC200T_Series_Hardware_Design 87 / 90
6.2. Recommended Footprint

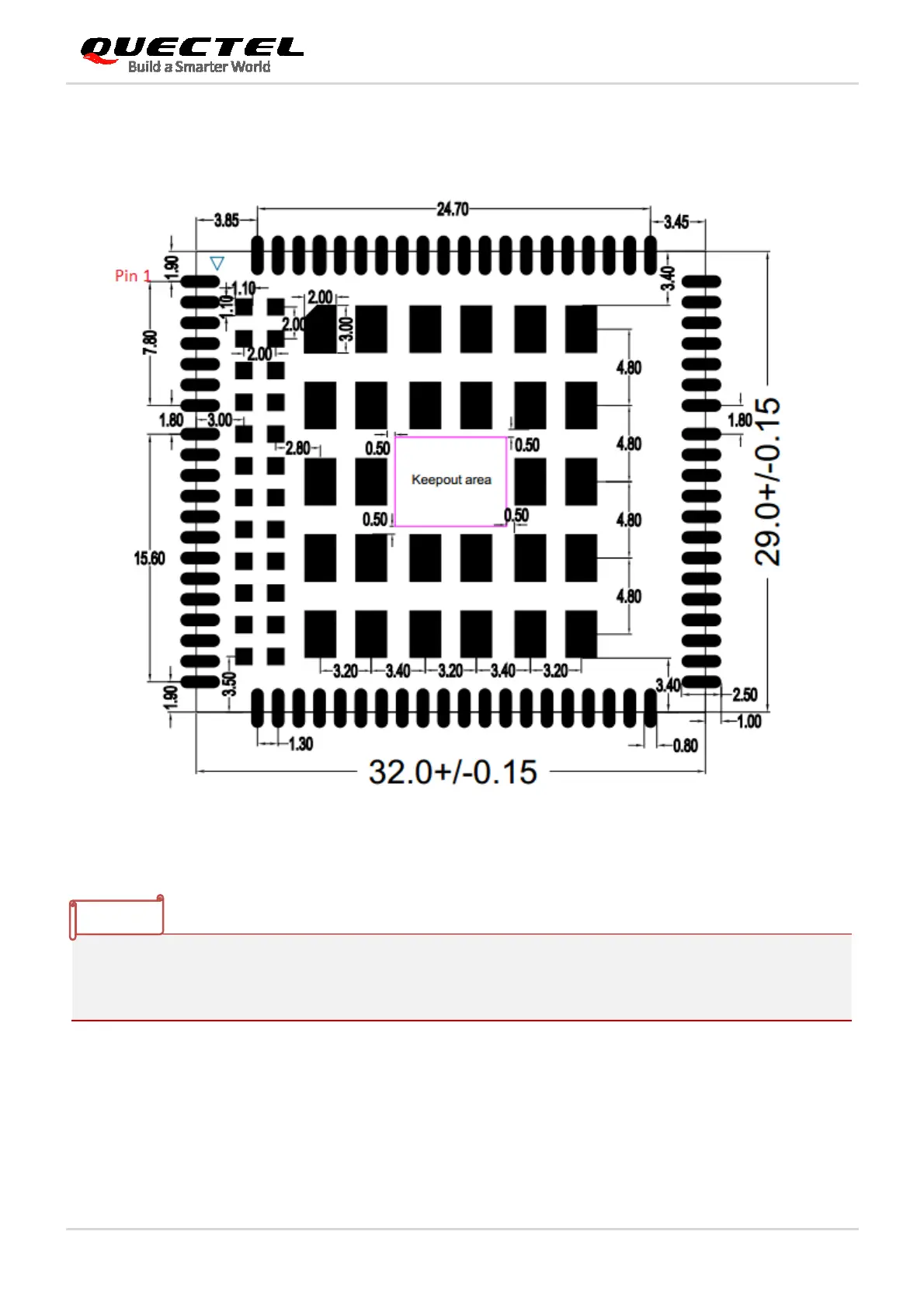

Figure 38: Recommended Footprint (Top View)
1. The keepout area should not be designed.
2. For easy maintenance of the module, please keep about 3 mm between the module and other
components in the host PCB.
NOTES
