Input impedance: 50 Ω
Cable insertion loss: < 1 dB
(EGSM900, WCDMA B5, WCDMA B8, LTE-FDD B5/B8/B20/B28)
Cable insertion loss: < 1.5 dB
(DCS1800, WCDMA B1, LTE B1/B3/B34/B39)
Cable insertion loss: < 2 dB
(LTE-TDD B7/B38/B40/B41)
4.2.2. Recommended RF Connector for Antenna Installation
If RF connector is used for antenna connection, it is recommended to use U.FL-R-SMT connector
provided by Hirose.

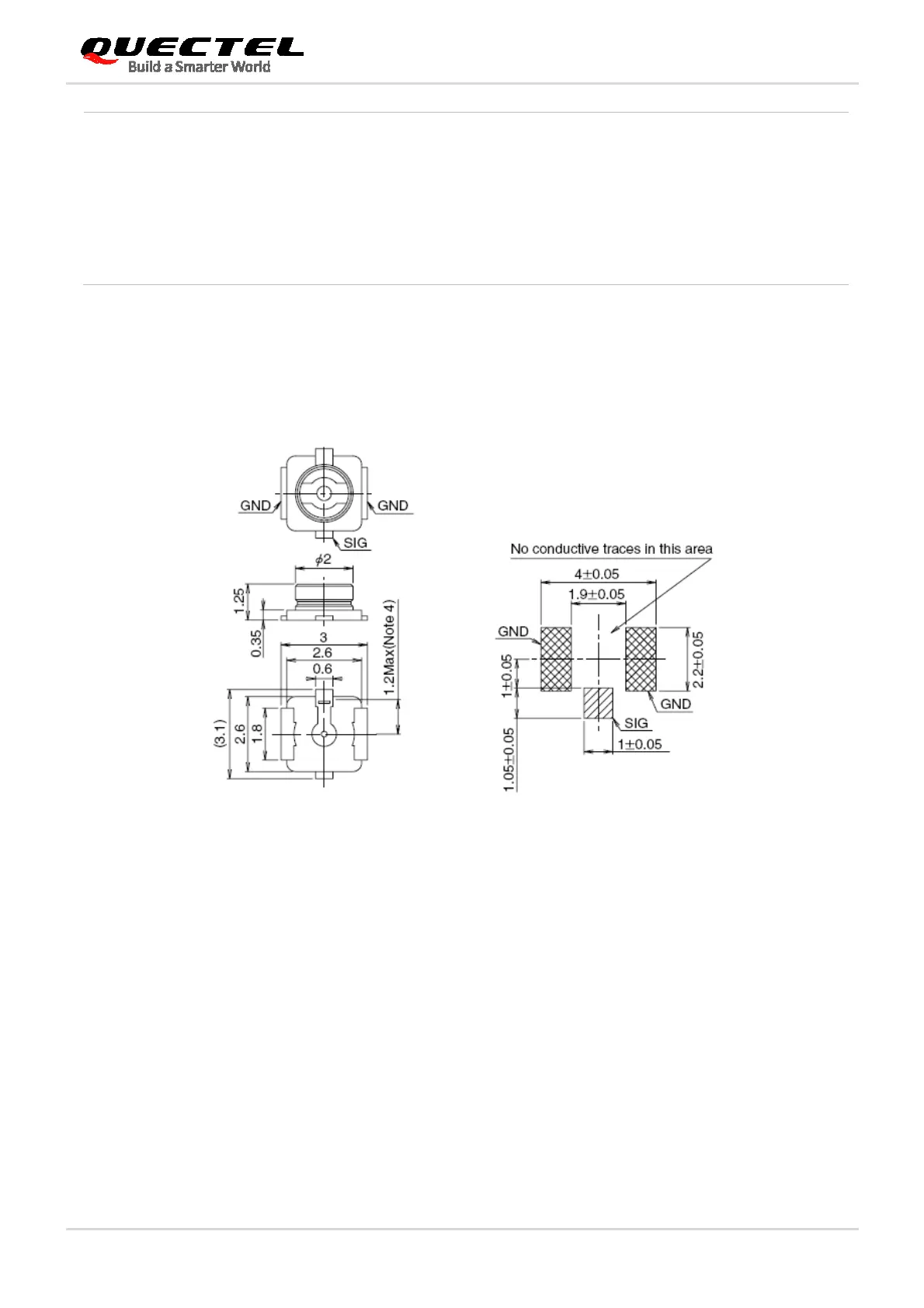

Figure 33: Dimensions of U.FL-R-SMT Connector (Unit: mm)
