Quectel EC200T Series User Manual

LTE Standard Module Series
EC200T Series Hardware Design
EC200T_Series_Hardware_Design 85 / 90
6 Mechanical Dimensions
This chapter describes the mechanical dimensions of the module. All dimensions are measured in
millimeter (mm), and the dimensional tolerances are ±0.05 mm unless otherwise specified.
6.1. Mechanical Dimensions of the Module

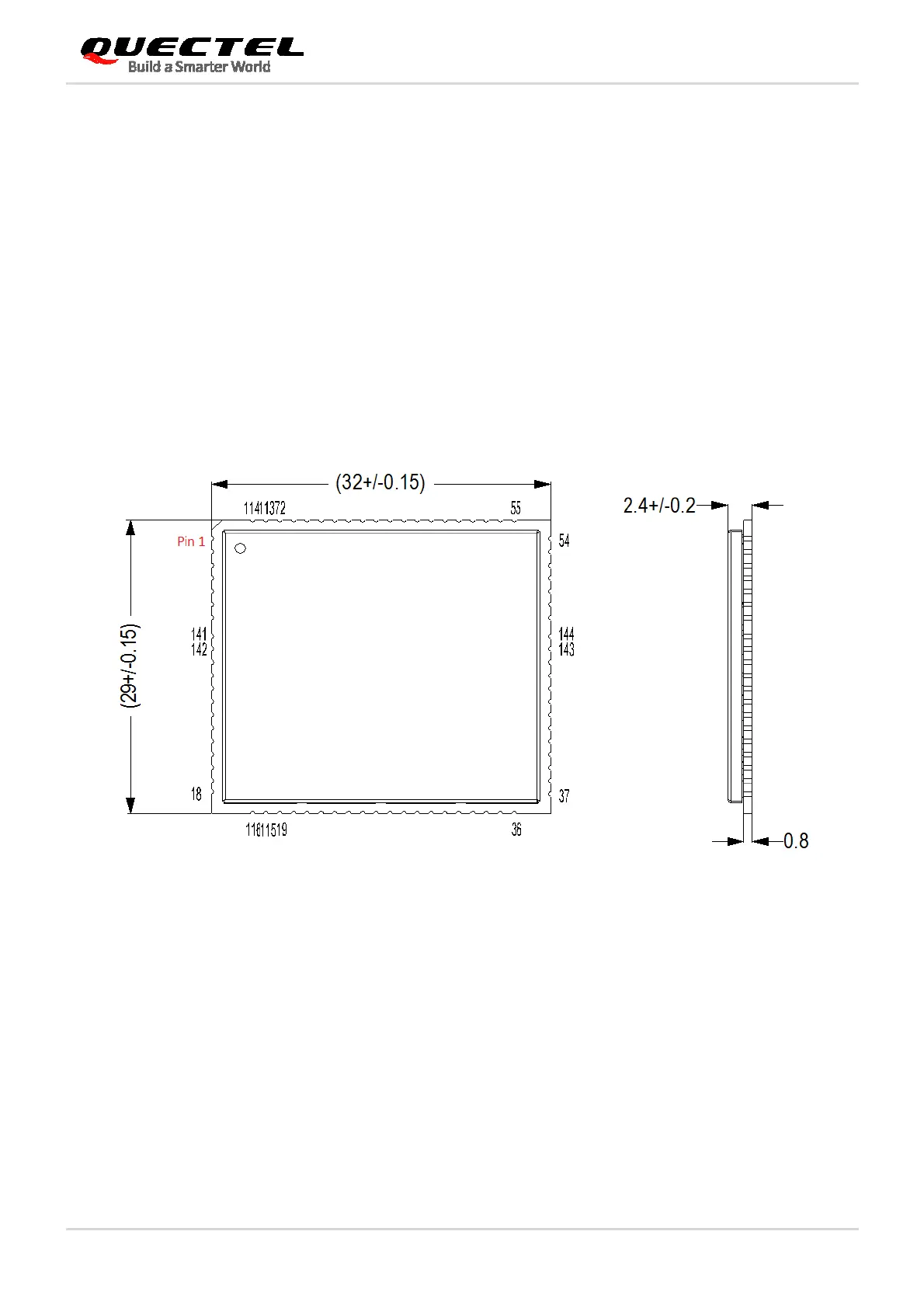

Figure 36: Module Top and Side Dimensions
