To connect the R&S LCX to the LAN:

1. Connect the "LAN" socket using an RJ-45 cable to the LAN.

By default, the R&S LCX configuration uses DHCP that assigns the IP address

automatically.

NOTICE! If the R&S LCX cannot obtain an IP address automatically, or cannot

establish the connection, the icon in the status bar turns red.

Possible reasons are that the LAN does not support DCHP or requires a specific

TCP/IP configuration, or that the connection is missing.

To troubleshoot the problem, proceed as follows:

a) Check if you have connected both, the R&S LCX and the controller PC to the

LAN.

b) Consult your network administrator to request support and an IP address, if

necessary.

c) If necessary, assign the IP address manually as described in "Assigning the

LAN interface addresses manually" on page 159.

If switched on and connected, the R&S LCX indicates the address information and

LAN parameters in the "Ethernet Settings dialog".

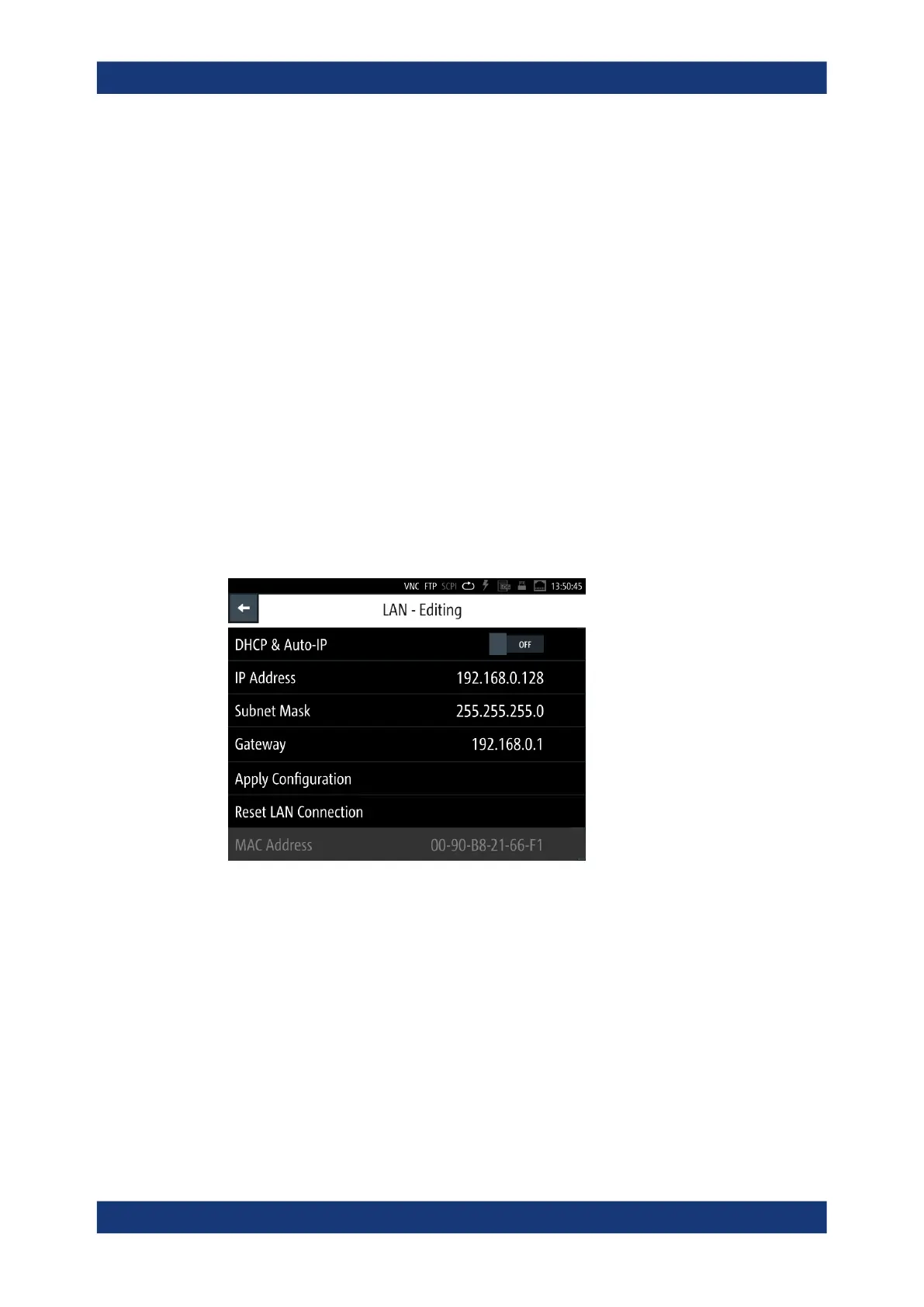

Figure 4-1: LAN settings dialog

4.1.8 Connecting USB devices

The "USB A" connector is at the front panel. You can connect or disconnect all USB

devices from the R&S LCX during operation. But do not remove an external USB mem-

ory stick while the instrument is saving data, since it leads to loss of data.
