Raymarine AIS700 Installation Instructions

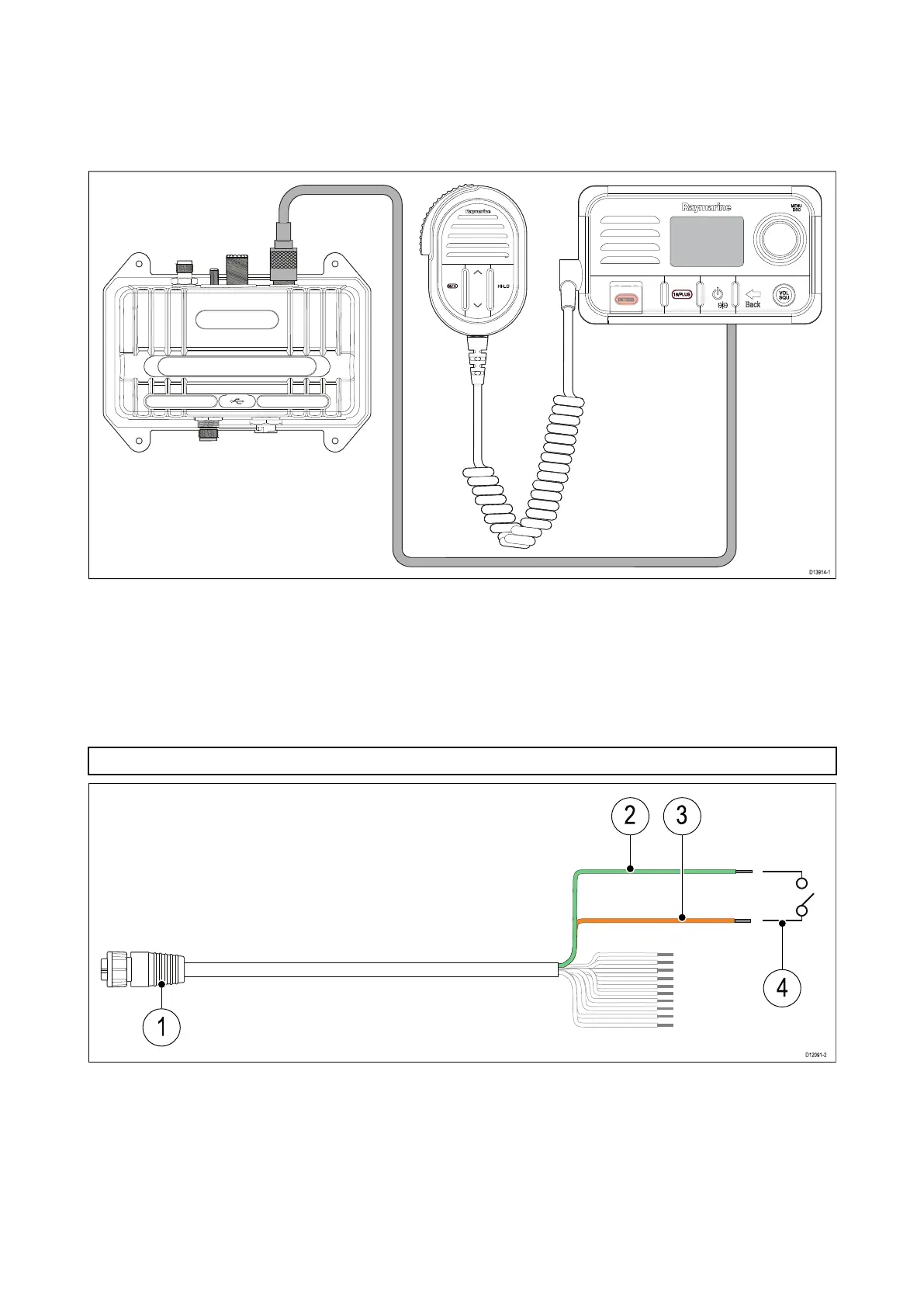

4.8VHFradioconnection
ForsystemsthatincludeaVHFDSCradioyoucansharetheVHFantennabyconnectingyour
R
adio’sVHFantennaconnectiontotheVHFRadioconnectiononyourAIS700andthenconnecting
yourVHFantennatotheAIS700,sVHFantennaconnection.
4.9Silentmodeswitchconnection
InSilentmodeyourAIS700willstoptransmittingpositiondataandoperateasareceiveronly .
SilentmodecanbeenabledusingaconnectedMFDandbyconnectingaswitchtotherelevant
wiresonthePower/datacable.PleaserefertoyourMFD’soperationinstructionsfordetailson
enablingsilentmode.
Note:AsilentmodeswitchwilloverrideanMFD ’sSilentmodesetting.
1.P ower/datacable(supplied)
2.LightGreenwire
3.Orangewire
4.Switch(notsupplied)
Crimporsolderwireconnectionsandensuresuitableinsulationfromwateringress.
36

Raymarine AIS700 Specifications

General

Brand	Raymarine
Model	AIS700
Category	Transceiver
Language	English
