6-2 SL72 & SL72RC PLUS Pathfinder Radar & Radar/Chartplotter
Measuring Distances
Using the VRM/EBL
Key
6.2 Measuring Distances Using the VRM/EBL Key
You can obtain an accurate measurement of the distance and bearing between
two points by using the
VRM/EBL key.
➤ To place a ruler line and Ruler data box:
1. Position the cursor on the starting point from which you wish to measure.
2. Press
VRM/EBL.
A Ruler data box is displayed showing the bearing and distance from the
starting point to the cursor position. The character
A appears at the cursor
location.
3. Use the trackpad to move the cursor to the measurement end point. A line
connects the cursor to the starting point, and the Ruler data box is updated
to show the bearing and length of the line as shown in Figure 6-1.
4. Press
ENTER to fix the end point of the ruler line, and return to normal cur-
sor control. The letter
B marks the location of the end point on the chart.

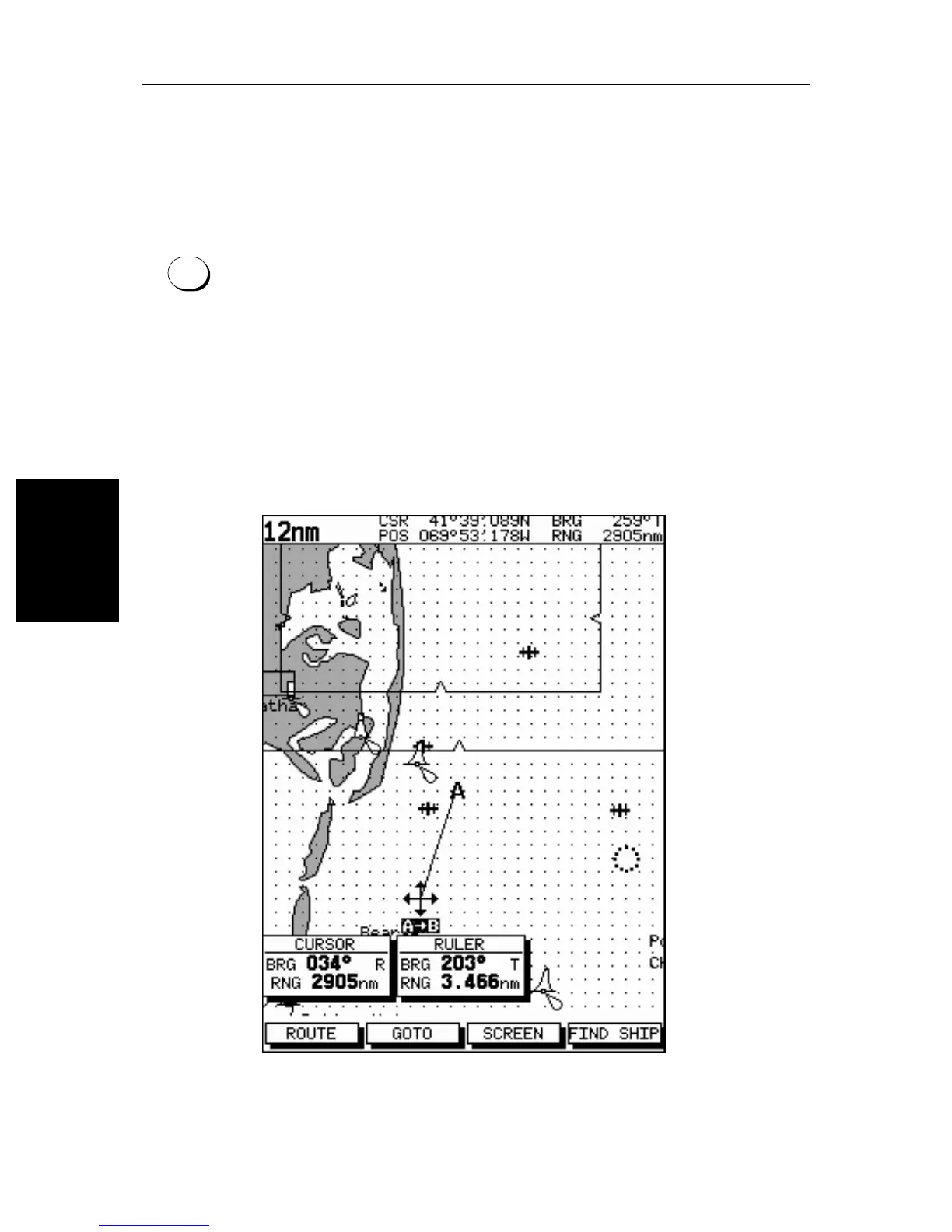

Figure 6-1: Measuring Distance Using a VRM
VRM/EBL
