B-6 SL72 & SL72RC PLUS Pathfinder Radar & Radar/Chartplotter
Raystar 120 WAAS
Satellite Differential
Receiver
Raystar 120 WAAS Satellite Differential Receiver

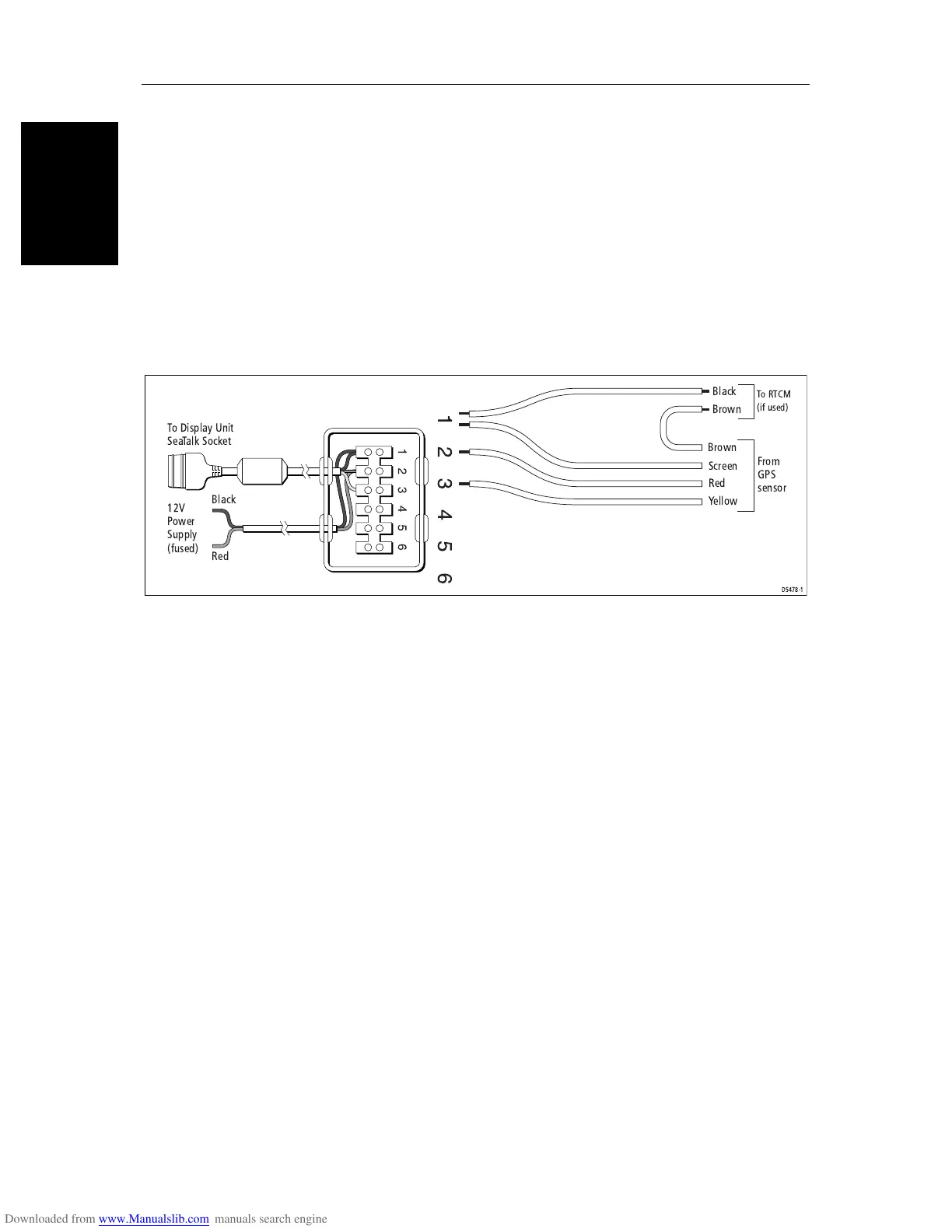

To connect your Raystar 120 WAAS Satellite Differential Receiver to your
display, connect to the Auxiliary Junction Box as shown in the illustration
below. Optional connections to RTCM are also shown. Note that the green
wire is not used.
CAUTION:
Ensure the correct polarity of the 12 V supply before applying display or
SeaTalk power. It is recommended that a multimeter is used to check the
connections.
From
GPS
sensor
Yellow
Red
Screen
D5478-1
Brown
Brown
To RTCM
(if used)
Black
12V
Power
Supply
(fused)
To Display Unit
SeaTalk Socket
Red
Black
To Next Page
