Raymarine SL72 User Manual

B-2 SL72 & SL72RC PLUS Pathfinder Radar & Radar/Chartplotter
Raystar 112, 105,
Apelco 182 and
182XT
Raystar 112, 105, Apelco 182 and 182XT

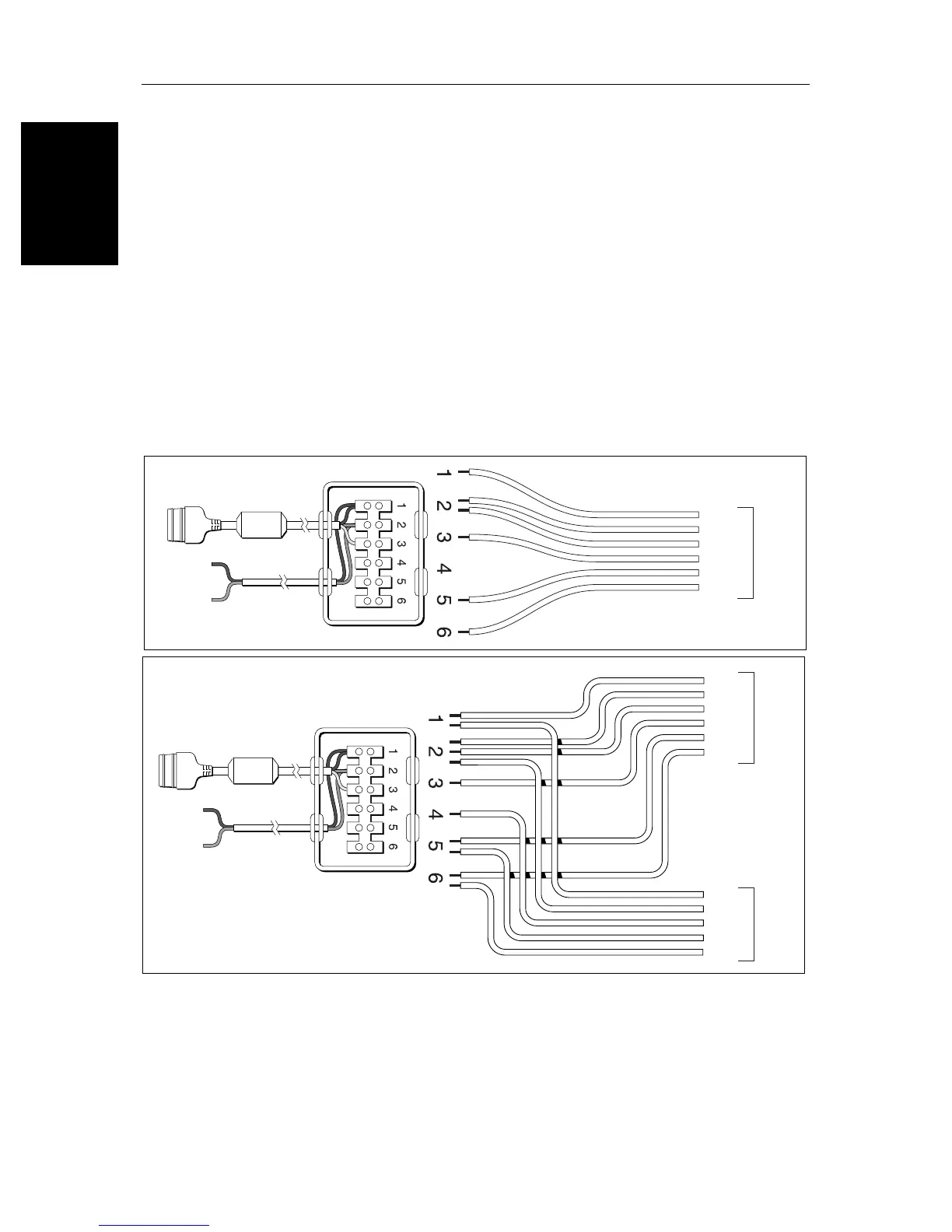

In order to connect your GPS to your display, you must first cut off the 6-pin
connector and strip back the insulation on all the wires. Connect to the
Auxiliary Junction Box as shown in the first illustration below.
To connect your Differential Beacon Receiver, you must cut off the 5-pin
connector (Raytheon and Apelco versions), strip back the insulation on all the
wires and connect to the Auxiliary Junction Box as shown in the second
illustration below.
CAUTION:
Ensure the correct polarity of the 12 V supply before applying display or
SeaTalk power. It is recommended that a multimeter is used to check the
connections.
12V
Power
Supply
(fused)
From
GPS
sensor
Yellow
Green
White
Brown
Red
Black
To Display Unit
SeaTalk Socket
D4294-3
Red
Black
12V
Power
Supply
(fused)
From
GPS
sensor
Yellow
White
Green
Red
Black
Yellow
Green
White
Brown
Red
Black
To Display Unit
SeaTalk Socket
D4295-3
From
the
DBR
Red
Black
