Accessories
48 Rev. E3 07/2013 MP150
7.9.5 Output Module 7024, analog
Type 7024
Analog Outputs
Channels 4
Types 0 to 20 mA, 4 to 20 mA
0 to 10 V, -10 to 10 V, 0 to 5 V, -5 to 5 V
(software controlled)
Voltage output: max. 5 mA
Current load resistor max. 1050 Ω (for external 24 V)

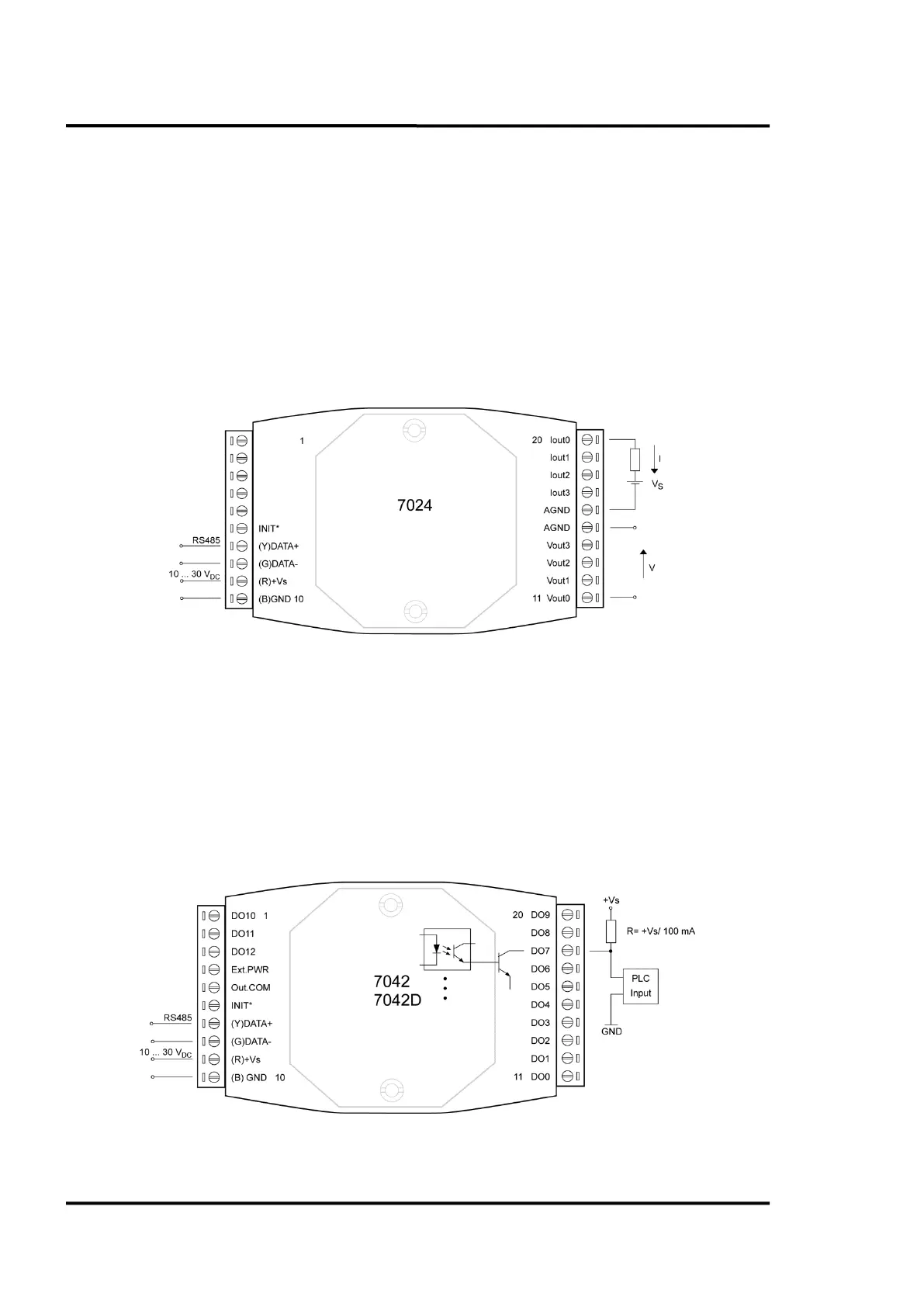

Figure 25: Module 7024
7.9.6 Output Module 7042, digital
Type 7042
Digital Outputs
Channels 13 (Sink)
Type open collector (NPN), up to 30 V, 100 mA max.
electrically isolated
Figure 26: Module 7042
