7.9.7 Output Module 7043, digital
Type 7043
Digital Outputs
Channels 16 (Sink)
Type open collector (NPN), up to 30 V, 100 mA max.
non isolated

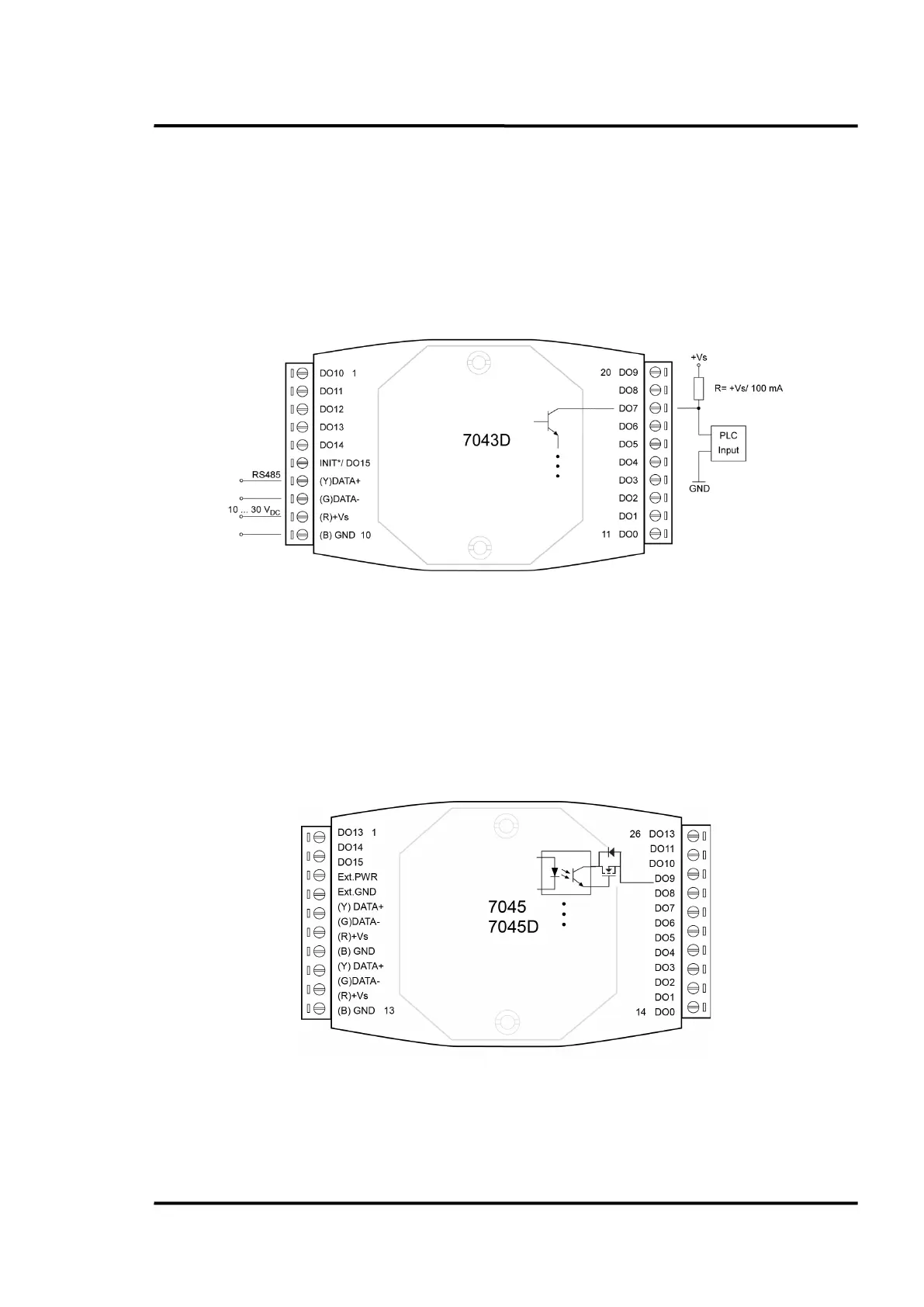

Figure 27: Module 7043
7.9.8 Output Module 7045, digital
Type 7045
Digital Outputs
Channels 16 (Source)
Type open source (N-MOSFET), up to 40 V, 650 mA max.
electrically isolated
Figure 28: Module 7045
