KrosFlo® TFF System – Auxiliary Scale ACSS-20K

User Guide

30 repligen.com 420-14871-001 Rev. 00

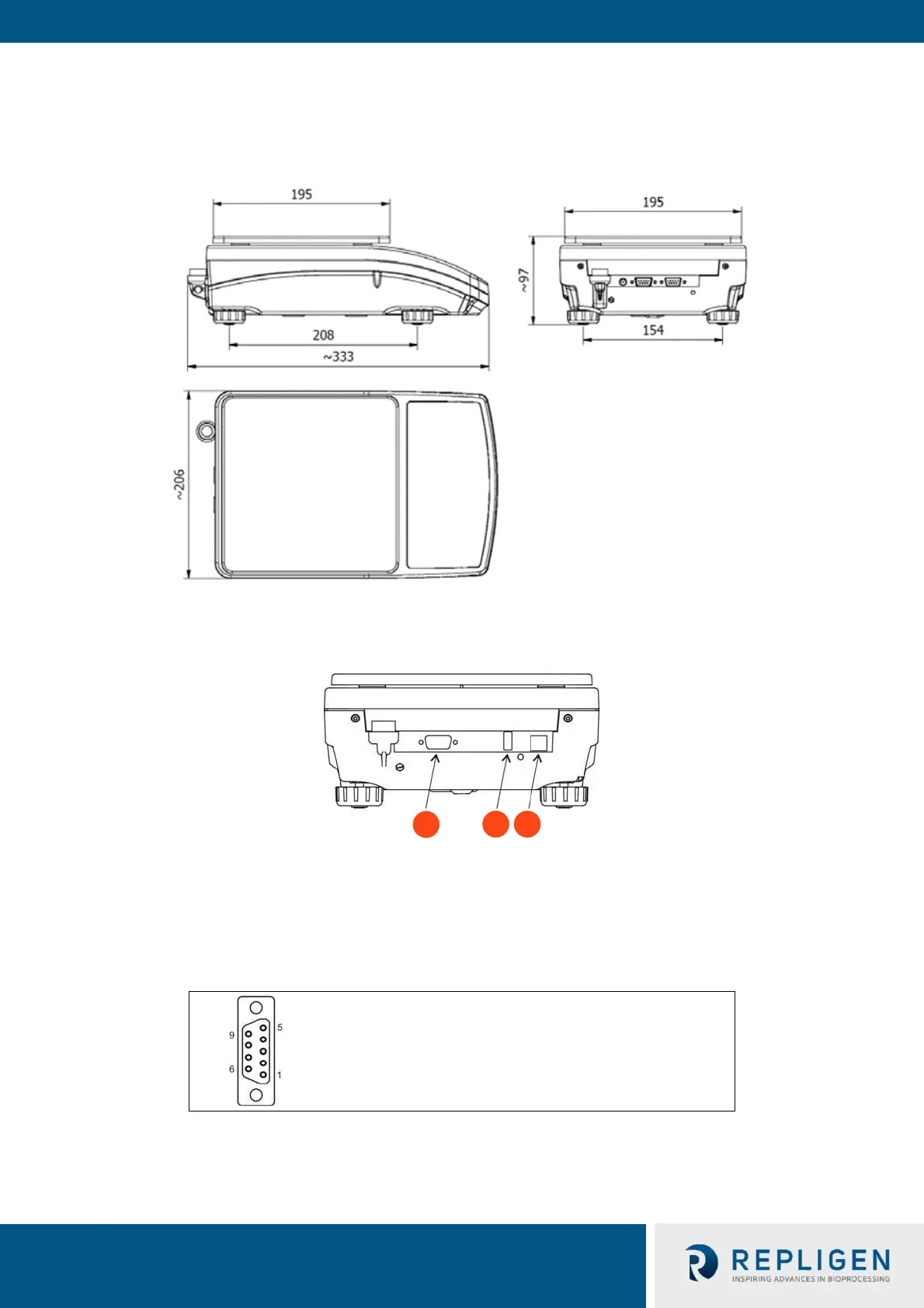

20. Mechanical design

20.1 Dimensions

Figure 13. Scale dimensions

20.2 Connectors arrangement

Figure 14. Scale connectors

Connectors view

1. RS232 connector

2. USB A "host"

3. USB B "device"

Figure 15. RS-232 connector

Pin2 – RxD

Pin3 – TxD

Pin5 – GNDRS

Pin8 – GNDZ

Pin9 – 12VDC

DB9 F connector (female)

Table of Contents3
Table 1. Krosflo® TFF System - Auxiliary Scale Parts7
Figure 1. Krosflo® TFF System - Auxiliary Scale Components7
Figure 2. Auxiliary Scale Parts7
System Assembly8
Figure 3. Grounding Spring Check8
Figure 4. Rubber Feet Installation8
Figure 5. Weighing Pan Installation9
Figure 6. Leveling the Scale9
Figure 7. Interface Cable to Scale Connection9
Operating Instructions10
- Operational Panel10
- Table 2. Auxiliary Scale Keys10
- Figure 8. Interface Cable to Octopus Cable10
- Figure 9. Auxiliary Scale Keypad10
- Operating the Auxiliary Scale11
- Table 3. Auxiliary Scale Menu11
- Table 4. Auxiliary Scale Menu Navigation11
Good Weighing Practice12
- Table 5. Good Weighing Practices12
- Entering Tare Value Manually13
Zeroing12
Taring12
Units13
- Start Unit13
- Temporary Unit13
External Calibration14
User Calibration14
Calibration Report14
Filter14
Value Release15
Ambient Conditions15
Autozero Function15
Tare Entering Mode15
Tare Value Memory15
- Entering Tare Value to Scale Memory15
- Selecting Tare Value from the Scale Memory16
Last Digit16
RS232 (1) Port Settings16
USB (A) Port16
USB (B) Port17
Computer17
- Port17
- Continuous Transmission17
- Printout Interval for Continuous Transmission17
- Printer17
- Port18
Table 6. Calibration Report Variable List18
Additional Display18
Calibration Report18
Table 7. GLP Weighing Printout Variable List19
Figure 10. Calibration Report Example19
Figure 11. GLP Printout Example19
GLP Printout19
Backlight19
Table 8. GLP Date and Time Printout Variable List20
Beep' Sound20
Automatic Shutdown20
Date and Time20
Default User Settings20
Working Mode Local Settings21
- Table 9. Scale Data21
- Automatic Printout Interval22
- Save Mode22
- Table 10. Working Mode Settings22
- Table 11. Save Mode Options22
- Working Mode Accessibility22
- Lo Threshold23
Running Working Mode21
Local Settings23
- Table 12. Weighing - Local Settings23
- Table 13. Parts Counting - Local Settings23
- Working Mode Selection24
Setting Reference Sample Mass by Entering Mass of a Single Part24
Setting Reference Sample Mass by Determining Mass of a Single Part24
Local Settings25
Declaring Check Weighing Thresholds25
- Table 14. +/- Control - Local Settings25
- Working Mode Selection26
Reference Mass Determined by Weighing26
Reference Sample Mass by Determining Mass of a Single Part26
Local Settings26
Table 15. Percent Weighing - Local Settings26
Table 16. Peak Hold - Local Settings27
Peak Hold Operation27
Local Settings27
Table 17. Totalizing - Local Settings27
Totalizing Operation27
Table 18. Animal Weighing - Local Settings28
Local Settings28
Animal Weighing Operation28
Figure 12. Totalizing Printout Example28
Cleaning ABS Components29
Cleaning Stainless Steel Components29
Cleaning Aluminum Components29
Dimensions30
Connectors Arrangement30
Figure 13. Scale Dimensions30
Figure 14. Scale Connectors30
Figure 15. RS-232 Connector30
Table 19. Troubleshooting Suggestions31
Table 20. Error Messages31
