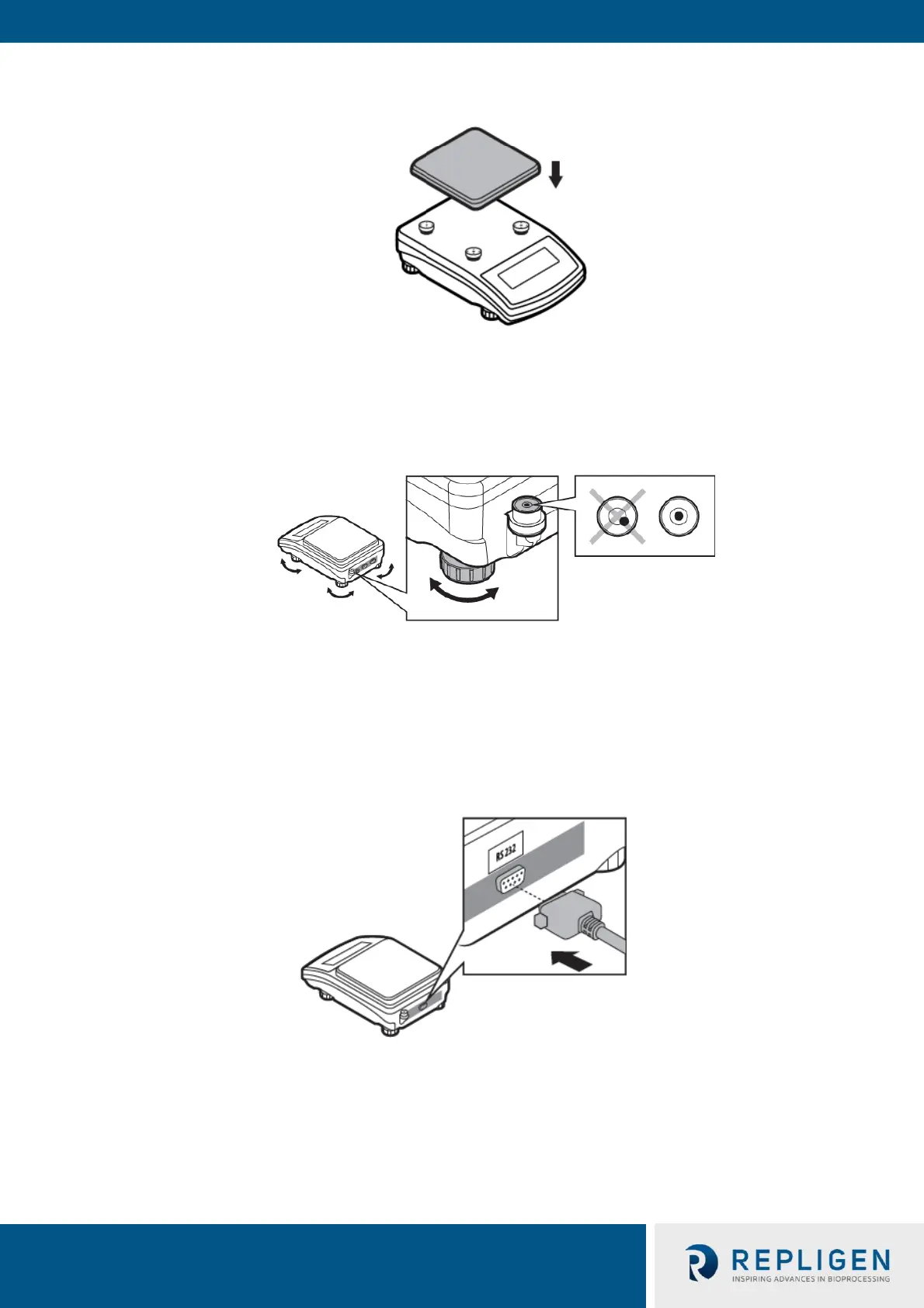

Figure 5. Weighing pan installation
4. Level the scale by turning the feet and monitoring the leveling vial in the rear of the unit.
Continue to adjust the feet until the air bubble takes the central position.
Figure 6. Leveling the scale
5. Prior to switching the balance on, let it reach room temperature (estimated stabilization
time: 1 - 8 hours).
6. Connect the adapter cable (DB9-M) to the rear of the scale. During this process there should
be no load on the weighing pan.
Figure 7. Interface cable to scale connection
7. Connect the adapter cable (DB9-F) to the auxiliary component octopus cable.
