1. Guide to the Printer

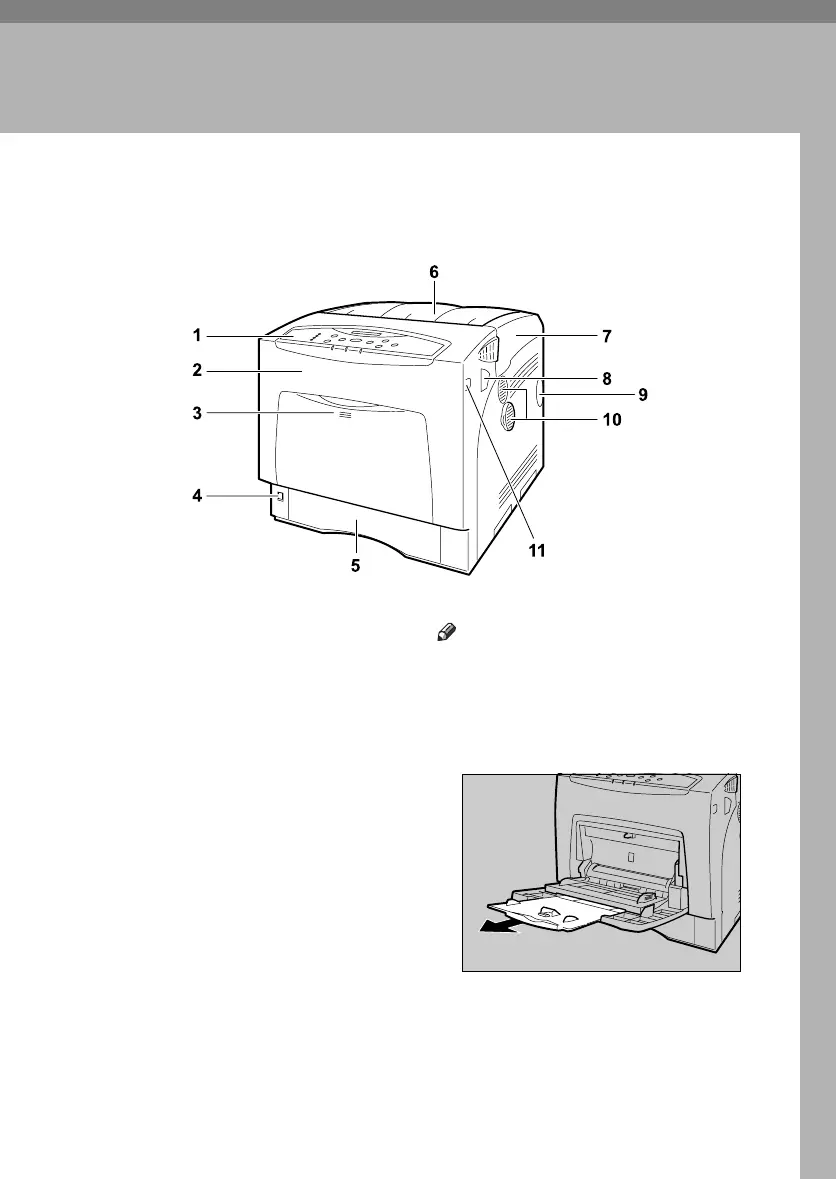

Exterior: Front View
1. Control Panel
Contains keys for printer control and a
display that shows the printer status.
2. Front Cover
Open the front cover to replace the fusing
unit or transfer roller, or to remove
jammed paper.
The front cover can be opened in two
ways:
To replace the fusing unit or roller, pull
the levers marked “A” on either side of
the machine. To remove jammed paper,
press the button marked “Z” on the right
side of the machine.
3. Bypass Tray
Up to 100 sheets of plain paper can be
loaded.
Note
❒ When setting paper larger than A5 K,
pull out the paper support tray as
shown in the drawing. For informa-
tion on the sizes and types of paper
that can be used, see Maintenance
Guide.
4. Power Switch
Use this switch to turn the power on and
off.
AET020S
AET047S
