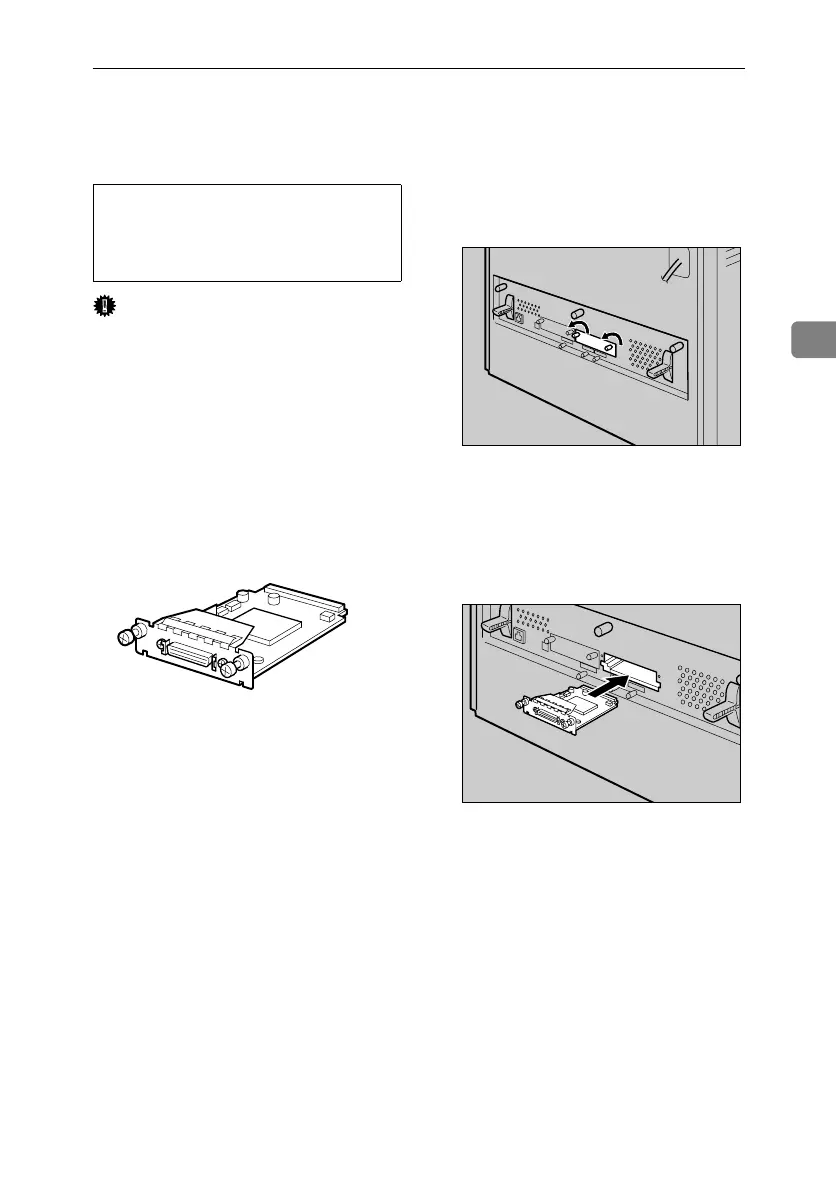

Attaching IEEE 1284 Interface Board Type A
55
3
Attaching IEEE 1284 Interface Board Type A
CAUTION:
Important
❒ Before manipulating the 1284 in-
terface board, touch something
metal to discharge static electricity.
Static electricity thing damage the
1284 interface board.
❒ Do not subject the 1284 interface
board to physical shocks.
A Check the package contains the
following:
❖ IEEE 1284 Interface Board Type A
B Turn off the power, and then un-
plug the power cable.
C Loosen the two screws and re-
move the cover of the 1284 inter-
face board installation unit.
The removed cover is not used
when installing the 1284 interface
board.
D Fully insert the 1284 interface
board.
Confirm that the 1284 interface
board is firmly connected to the
controller board.
• Do not touch inside the controller
board compartment. Doing so
may cause a machine malfunc-
tion or a burn.
ABT041S1
AET091S
AET102S
