Pass/Fail
The Pass/Fail function monitors changes of signals by comparing the input signal
which is within the pre-defined mask. The testing results not only can be displayed
on screen, but also can be alarmed by opening the system sound settings.
Press Utility→Pass/Fail to go to the following menu.

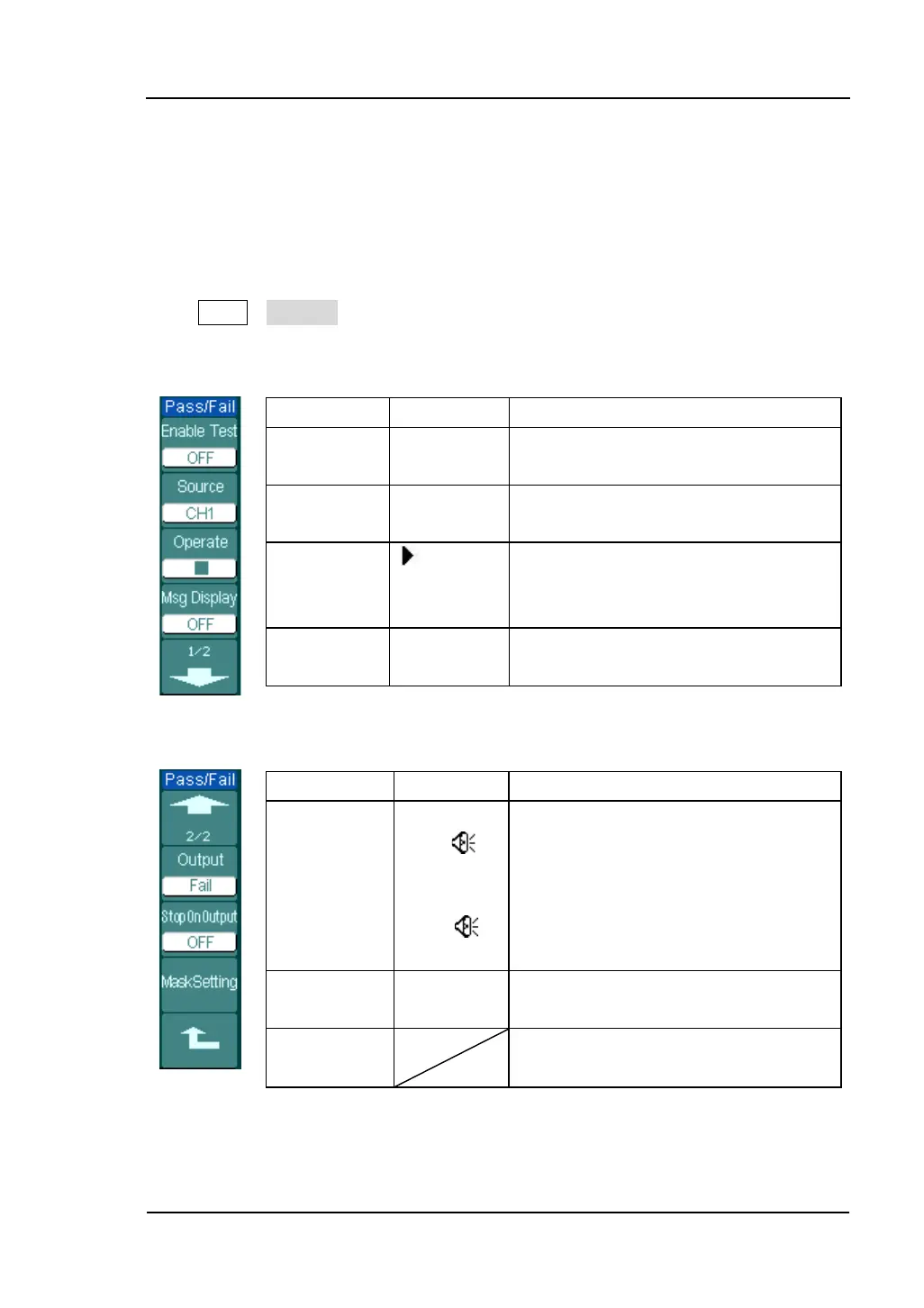

Figure 2-101 Table 2-55 The Pass/Fail menu (Page 1/2)
Menu Setting Comments
Enable Test
ON
OFF
Turn on Pass/Fail test.
Turn off Pass/Fail test.
Source
CH1, CH2,
CH3, CH4
Select Pass/Fail test on CH1, CH2,
CH3 or CH4.
Operate
(RUN)
■ (STOP)
Pass/Fail test stopped, press to run.
Pass/Fail test running, press to stop.
Msg display
ON
OFF
Turn on Pass/Fail information display.
Turn off Pass/Fail information display.
Figure 2-102 Table 2-56 The Pass/Fail menu (Page 2/2)
Menu Settings Comments
Output
Fail
Fail +
Pass
Pass+
Output when Fail condition detected.
Output and beep when Fail condition
detected.
Output when Pass condition detected.
Output and beep when Pass condition
detected.
Stop
on Output
ON
OFF
Stop test when output occur.
Continue test when output occur.
Mask Setting Go to mask setting menu.
