Rigol DS1000B Series User Manual

RIGOL
User’s Guide for DS1000B Series
3-12

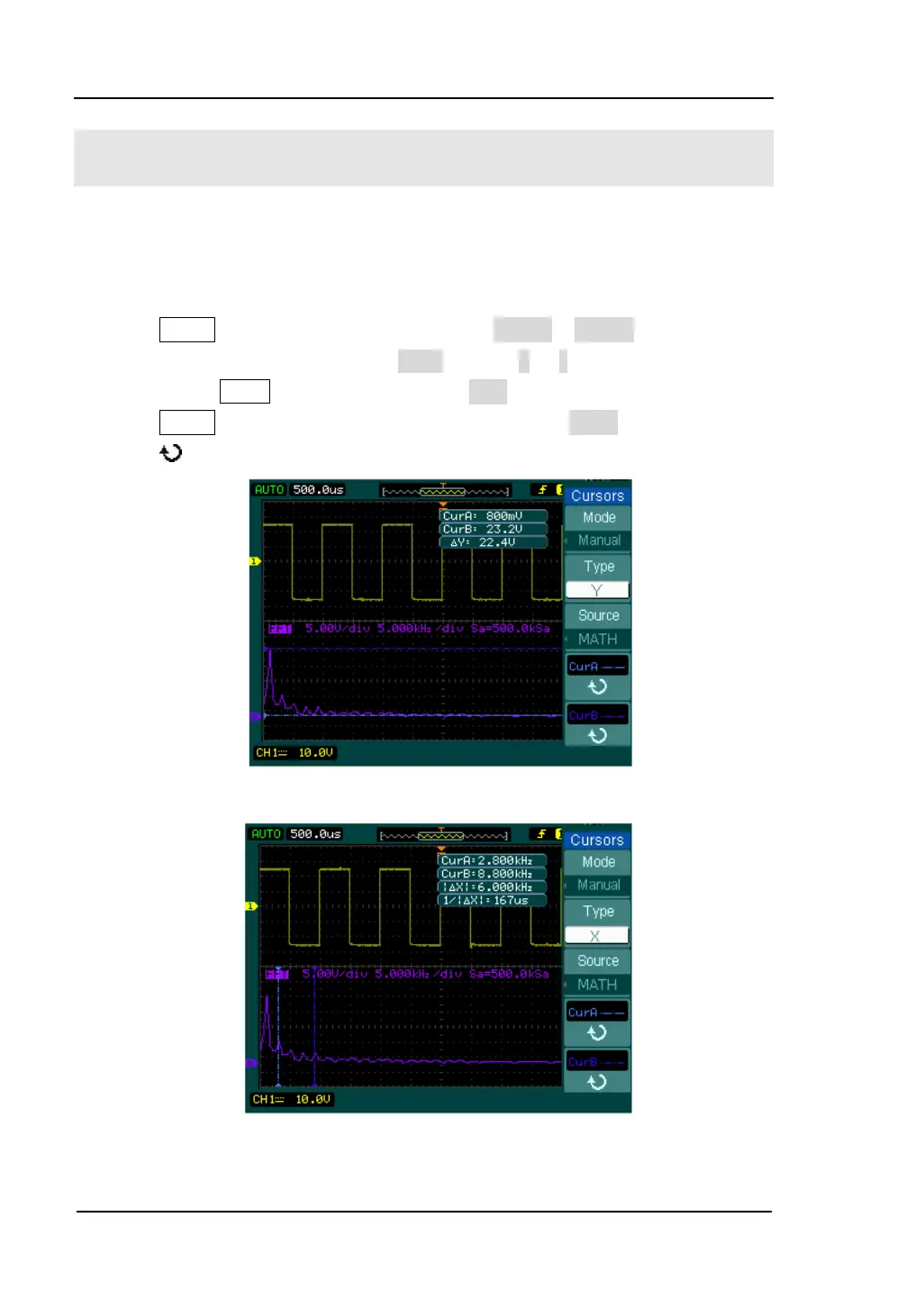

Example 8: FFT Cursor Measurement
FFT measurements include: Amplitude measurement (V
RMS
or dBV
RMS
) and
Frequency measurement (Hz).
Do these steps as follows:
1. Press Cursor→Press No.1 button to set cursor mode to Manual.
2. Press No.2 button associated with Type to select X or Y.
3. Press button MATH→set operate mode as FFT.
4. Press Cursor →press No.3 button to specify source as MATH.
5. Turn ( ) knob to move the cursor A and cursor B to a point of interest.
Figure 3-9 Cursor Measurement (Type Y)
Figure 3-10 Cursor Measurement (Type X)
