User’s Guide for DS1000B series
2-84
Print Setting
DS1000B series oscilloscopes support two print modes: “normal” and “PictBridge”.
Please execute print operation according to the following steps:
1. Connect printer:
 If use PictBridge printer, please select “PictBridge” mode, and then connect
the oscilloscopes regarded as “Device equipment” and printer via USB Device
port on the rear panel.
LI NE 6 0 W MA X
Fuse: 250V, 2AT
Digital Oscilloscope
RIGOL Technologies, Inc.
100-127V, 45- 440Hz
100-240V, 45-65Hz
LAN
USB
DEVICE
USB
HOST
MADE IN CHINA
40
LXI C lass C
Non Auto-MDIX
C
US

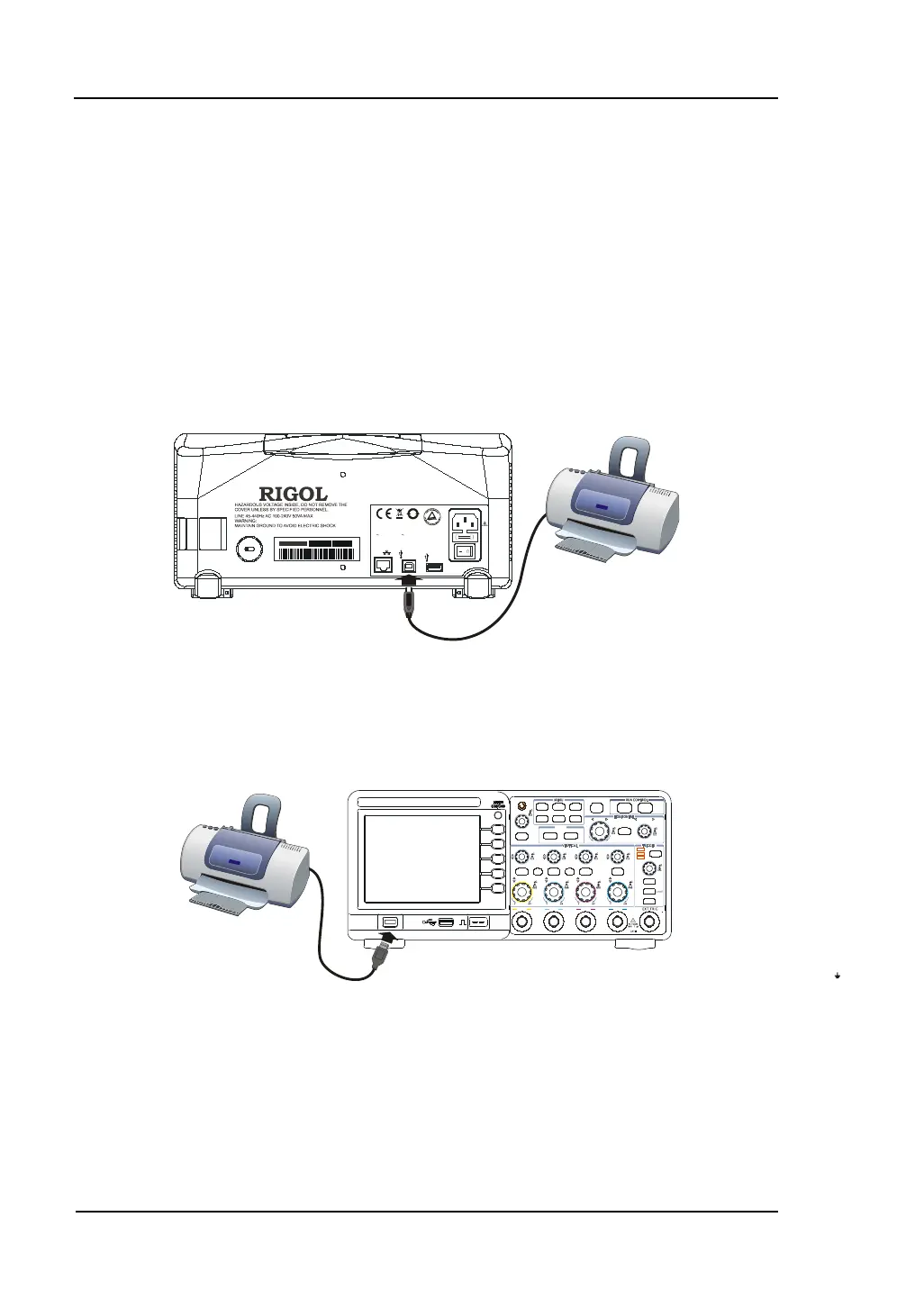

Figure 2-114 PictBridge print
 If use Normal printer, please select “Normal” mode, and then connect the
oscilloscopes regarded as “Host equipment” and printer via USB Host port on
the front panel.
CH4CH1
CH2 CH3
SCALE SCALE SCALE SCALE
POSITION POSITION POSITION POSITION
Auto
Normal
Single
LEVEL
QUICK
Zero
Zero
Zero
Zero
POSITION
SCALE
Intensity
300 V RM S
Zoom
// 8
Zero
Help
Measure
Acquire
Storage
UtilityDisplay
Cursor
Single
Auto
Measure Print
MATH REF
CH1 CH2 CH3 CH4
MENU
FORCE
50%
MODE
MENU
Figure 2-115 Normal print
