Rigol DS1000B Series User Manual

RIGOL
User’s Guide for DS1000B Series
2-57
To Store and Recall

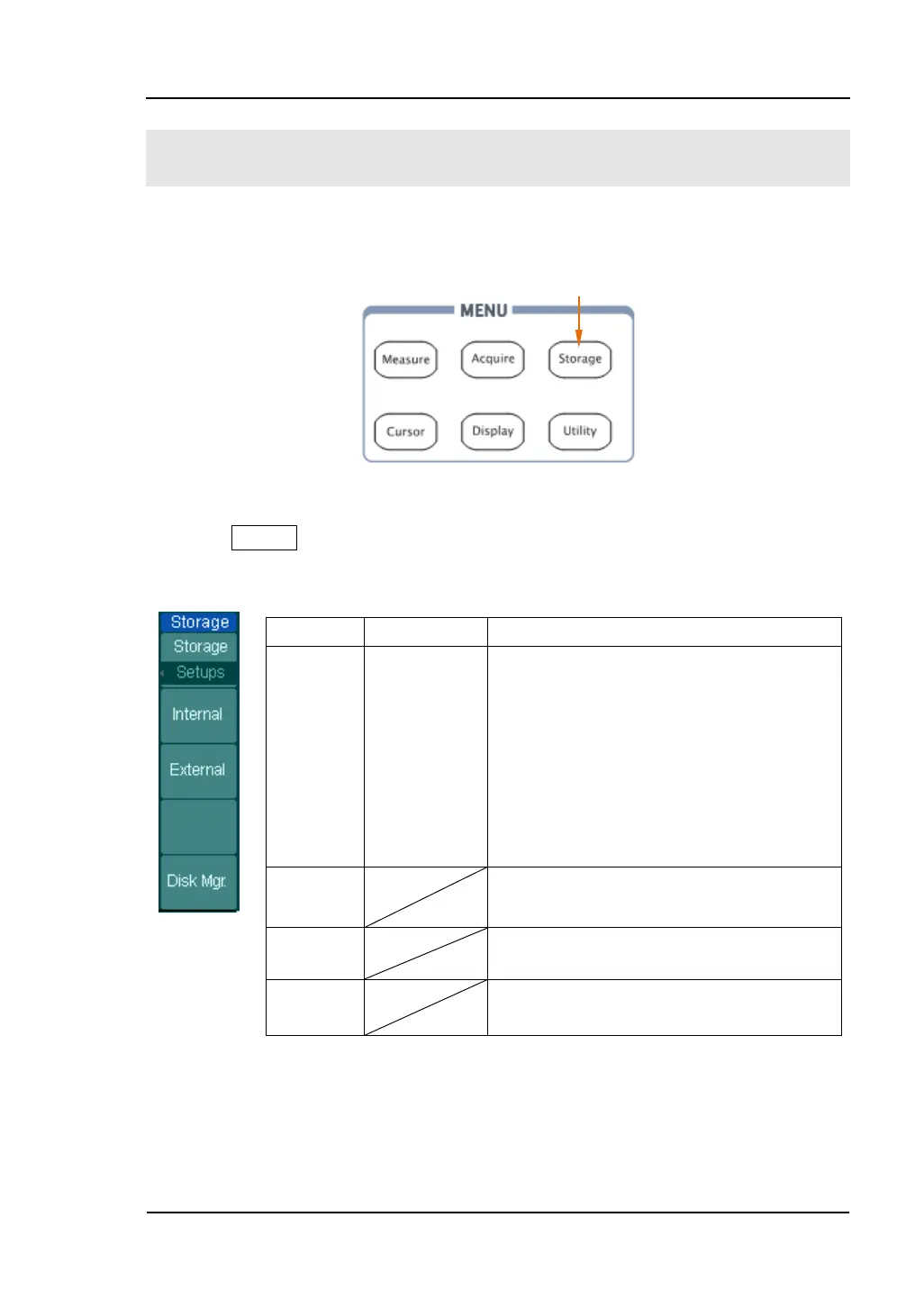

Figure 2-69 shows the menu button for the storage system on the front panel.
Figure 2-69 The storage setup button
Press the Storage button, the interface menu for settings shows as follows.
Figure 2-70 Table 2-41 The Storage menu (Waveform and Setups storage)
Menu Settings Comments
Storage
[1]
Waveform
[2]
Setups
8-Bitmap
24-Bitmap
PNG
CSV
Factory
Create, Save, Recall, Delete waveform
files.
Create, Save, Recall, Delete setups files.
Create or delete 8bits bitmap files.
Create or delete 24bits bitmap files.
Create or delete PNG format files.
Create or delete CSV files.
Recall factory setups.
Internal
Go to menu for internal memory
operation (see Table 2-46).
External
Go to menu for external memory
operation (see Table 2-47).
Disk Mgr.
Go to disk manage menu (see Table
2-48).
NOTES:
[1] The waveform and setups files in internal memory can be created, saved,
recalled and deleted. While, the waveform, setups, 8-bitmap, 24-bitmap, PNG,
CSV files can be created and deleted.
[2] Both waveforms and status settings could be saved in “Waveform Storage”.
Storage Setup Button
