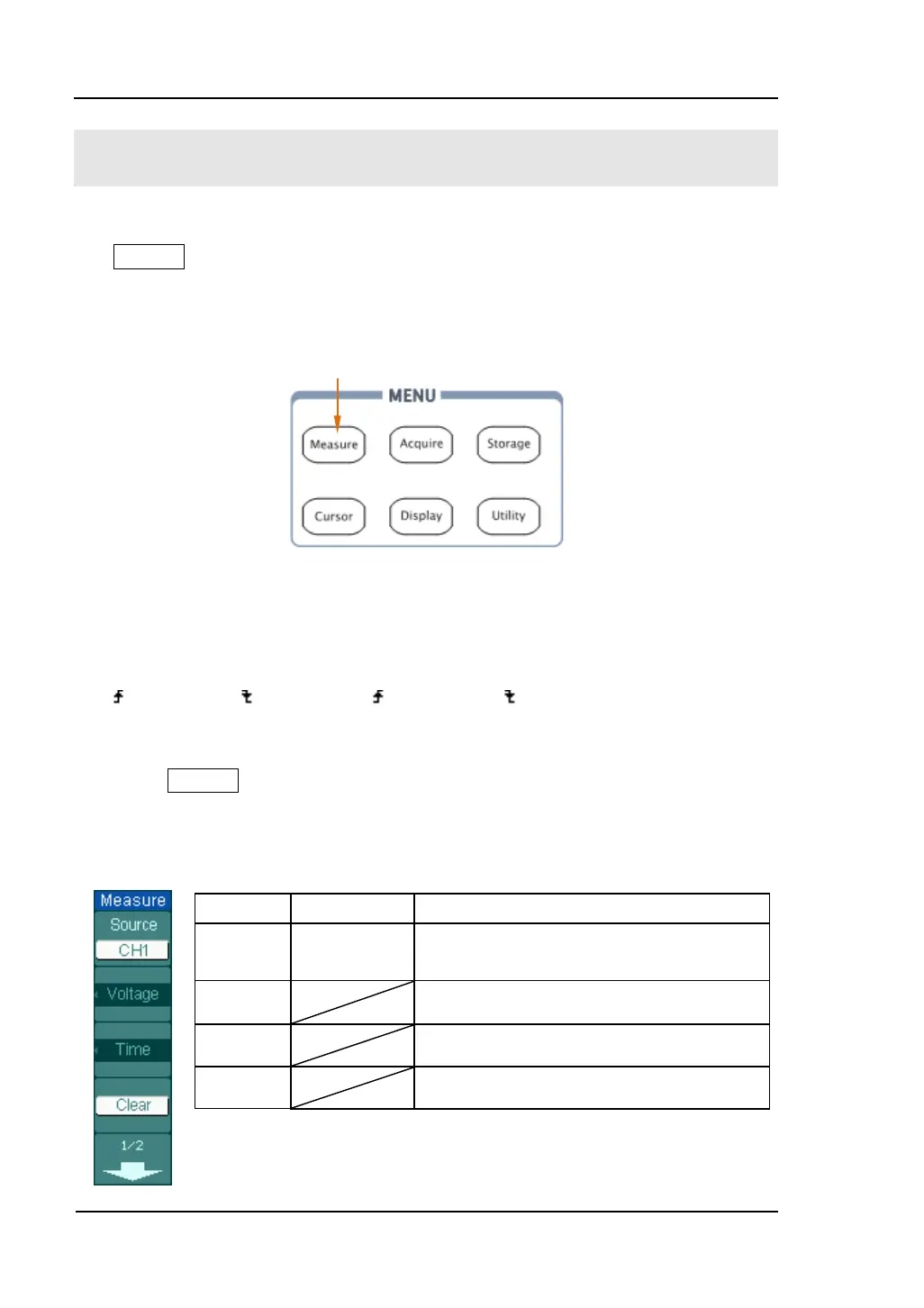

To Measure Automatically
The Measure button in the menu area activates the automatic measurement function.
The instruction below shows the powerful measurement function of DS1000B series
oscilloscopes.
Figure 2-126
The Measure setup button
The oscilloscopes provide 22 auto measurements: Vpp, Vmax, Vmin, Vtop, Vbase,
Vamp, Vavg, Vrms, Overshoot, Preshoot, Freq, Period, Rise Time, Fall Time,Delay A
 B
, Delay A  B , Phase A  B , Phase A  B , +Width, -Width, +Duty, -Duty
(10 voltage and 12 timing measurements).
Press the Measure button to display the menu of the Automatic Measurements
settings.
Figure 2-127 Table 2-75 The Measure menu (Page 1/2)
Menu Settings Comments
Source
CH1, CH2,
CH3, CH4
Select CH1 or CH2 as source channel for
measurement.
Voltage Select measure voltage parameter.
Time Select measure time parameter.
Clear Clear measurement result on screen.
Auto Measurement
