Rigol DS1000B Series User Manual

RIGOL
User’s Guide for DS1000B series
2-80
Waveform Recorder
Waveform recorder records input waveforms from CH1, CH2, CH3 and CH4 with a
maximum record length of 800 frames. This performance can also be activated by
the Pass/Fail test, which makes this function especially useful to capture abnormal
signals in long term without keeping an eye watching it.
1. OFF: It will close all record functions.
2. Record: To record waveform by selected time interval till the last frame.
Press Utility→Record→Mode→Record to go to the following menu.

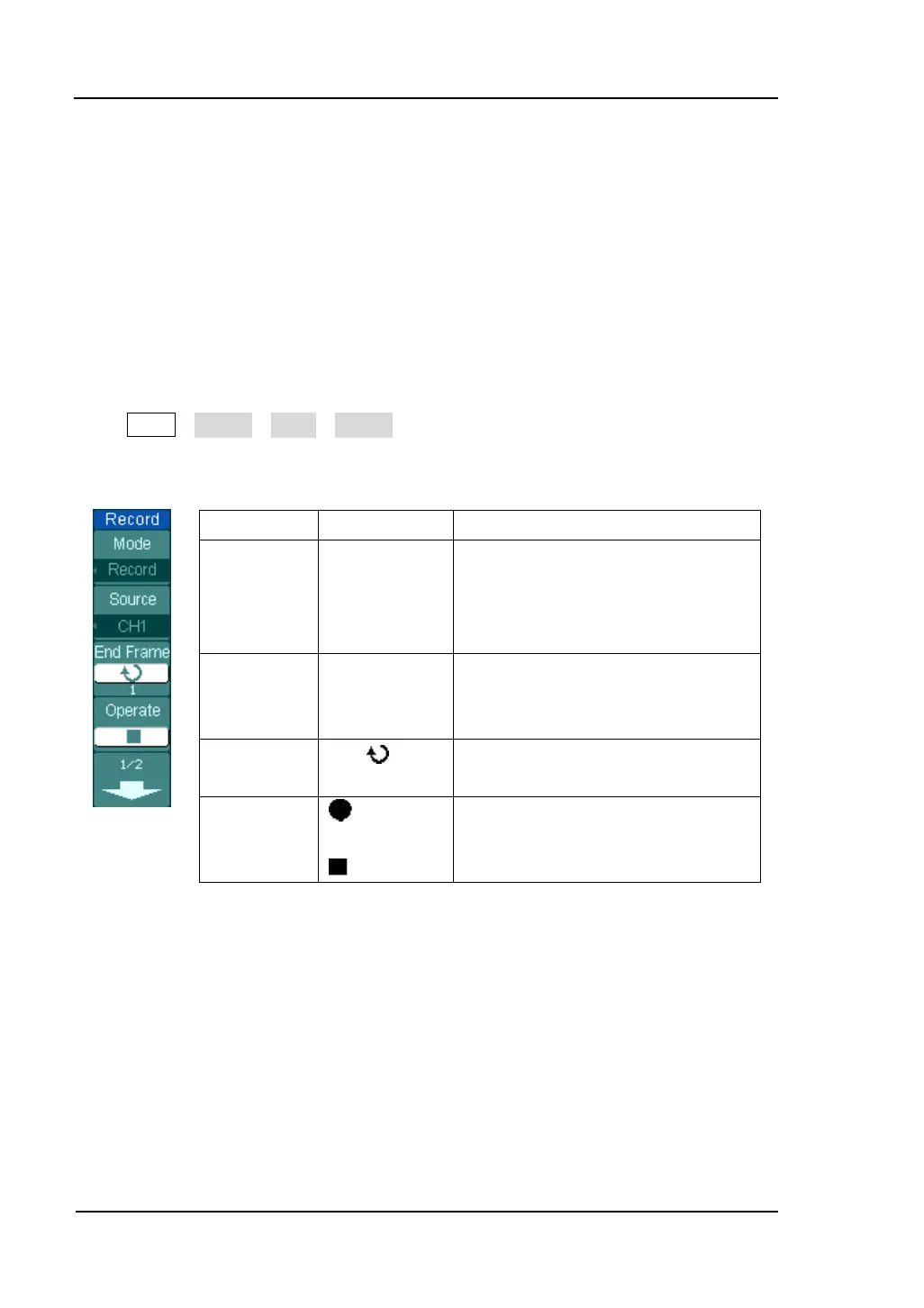

Figure 2-107 Table 2-61 The Record menu (Page 1/2)
Menu Settings Comments
Mode
OFF
Record
Play back
Storage
Select record mode.
Select play back mode.
Select storage mode.
Turn off all recorder functions.
Source
CH1, CH2
CH3, CH4
P/F-OUT
[1]
Select record source channel.
End Frame
<1-800>
Set number of record frames.
Operate
(Run)
(Stop)
Record stopped, press to Start
recording.
Press to stop recording.
NOTE [1]: The waveform when Pass/Fail testing pass or fall.
