Rigol DS1000B Series User Manual

RIGOL
User’s Guide for DS1000B series
2-4
Channel Settings
Each channel of DS1000B series digital oscilloscope has an independent operation
menu and it will pop-up after pressing any button among CH1, CH2, CH3, CH4. The
menu to set CH1 is shown in the table below. Press CH1 to enter the following
menus.

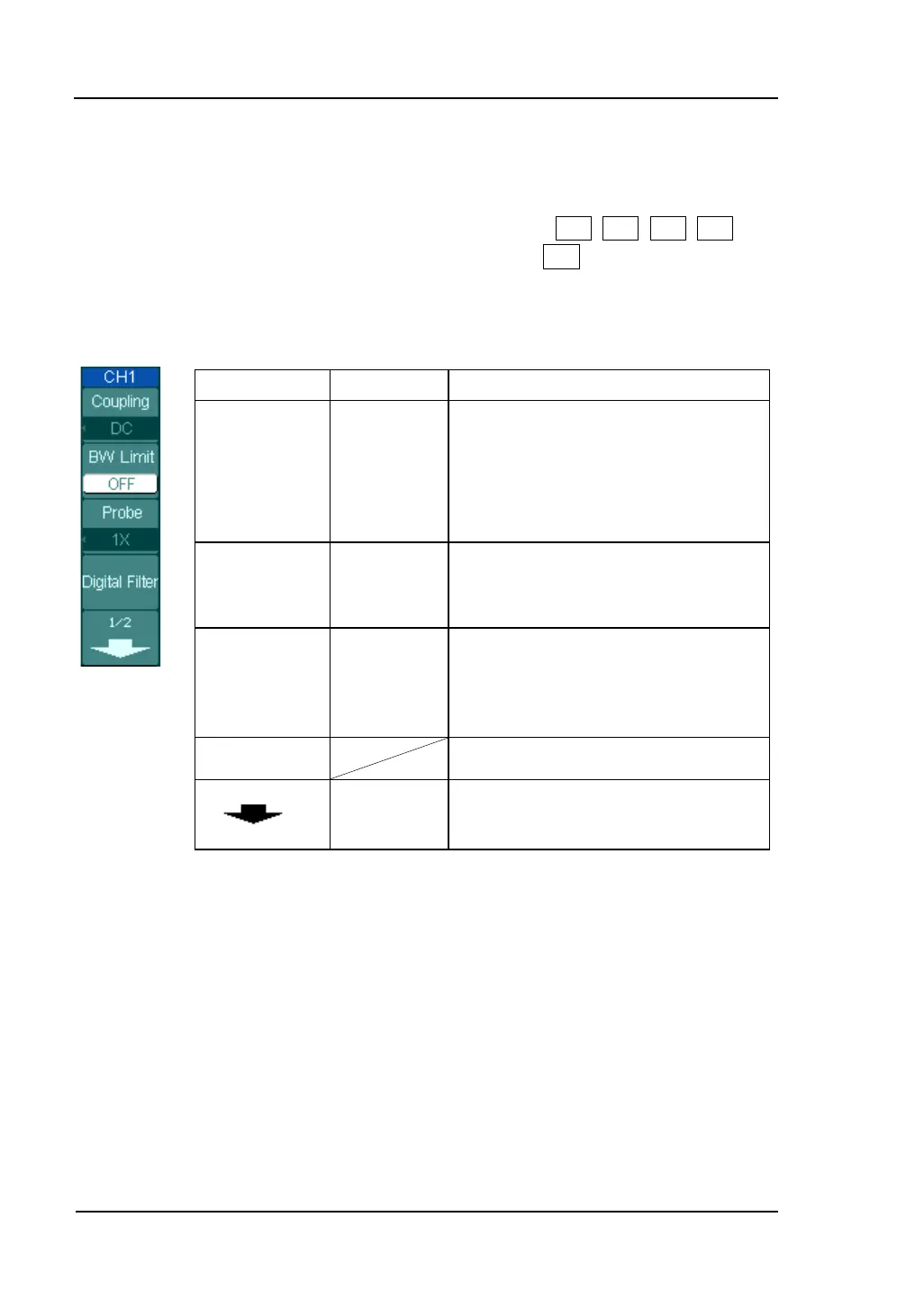

Figure 2-1 Table 2-2 Channel menu (Page 1/2)
Menu Settings Comments
Coupling
AC
DC
GND
Block DC component of the input
Signal.
Pass both AC and DC components of
the input signal
Disconnect the input signal.
BW Limit
ON
OFF
Limit the channel’s
bandwidth to
20MHz to reduce display noise.
Get full bandwidth.
Probe
0.001X
…
1000X
Set up the probe attenuation factor
by 1-2-5 to make the vertical scale
readout correct. including:
0.001X,0.01X,0.1X,1X,2X,5X,10X,20
X,50X,100X,200X,500X,1000X
Digital Filter Set up digital filter (See table 2-5).
1/2
Go to the next menu page (The
followings are the same, no more
explanation).
