To Understand the Quick Function

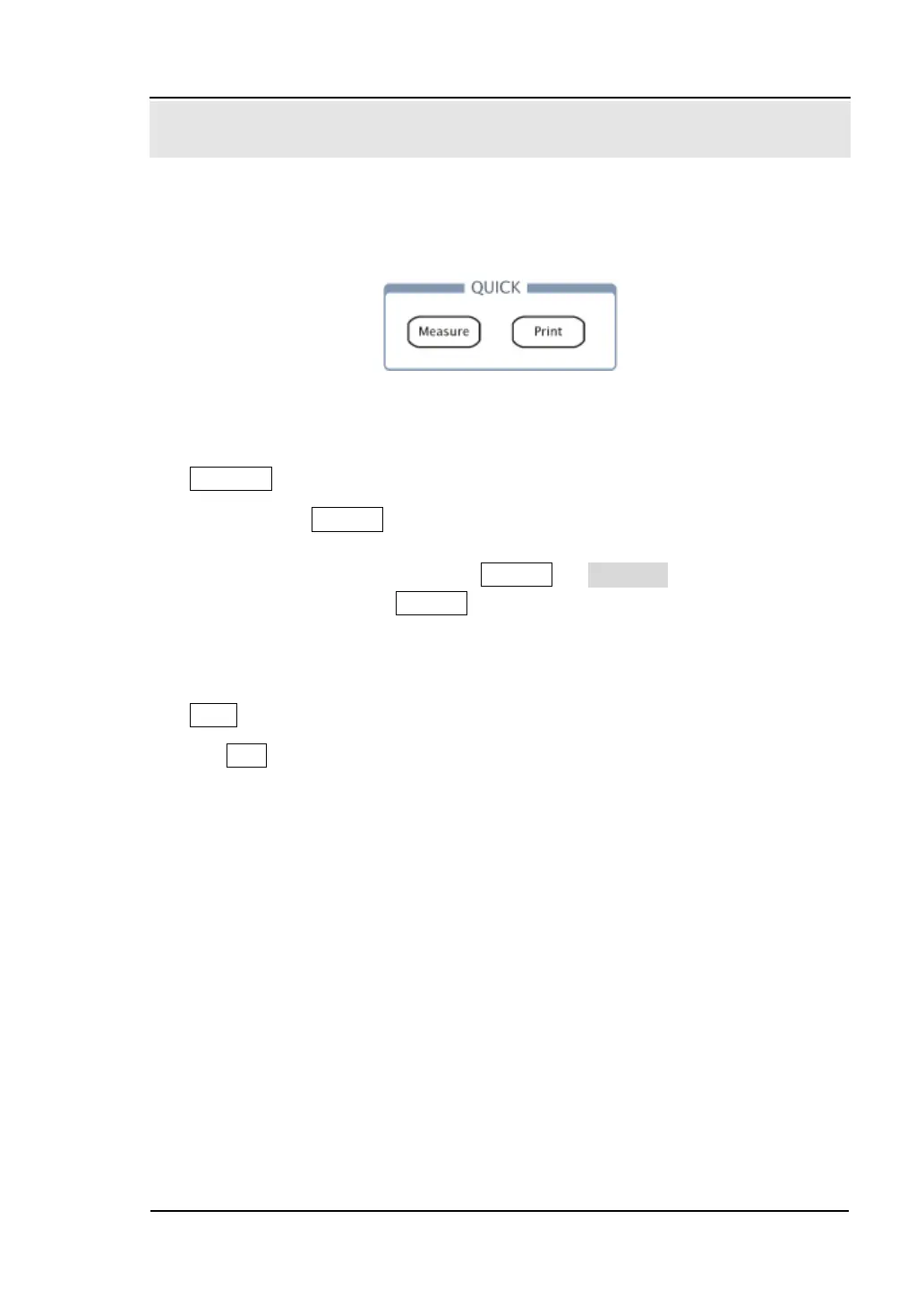

The following figure shows that there are two buttons in the QUICK function area.
The exercise below will gradually conduct you to familiarize the settings of the
buttons.
Figure 1-12
The quick function menu
1. Measure
There are two Measure buttons on the front panel, belonging to Function Menu
area and Quick Function area respectively. Firstly, you need to pre-set up three
items from 22 measurements via Measure → QuickMea from Function Menu
area, and then press Measure as shown in figure 1-12 to enter quick
measurement, three measuring parameters pre-defined will be displayed on the
screen.
2. Print
Use Print button to perform a quick print or store data to USB flash device.
 To execute print operation if connecting the printer since it has a higher priority.
 To store the measurement results to USB flash device in current format such as
Waveform, Setups, 8 Bitmap, 24 Bitmap, PNG or CSV. Furthermore, it will be
stored as 8-Bitmap automatically when selecting “Factory”.
