RIGOL Chapter 5 Disassembly and Assembly
Service Guide for DS1000E, DS1000D Series
5-10
Disassemble and Assemble the Mainboard

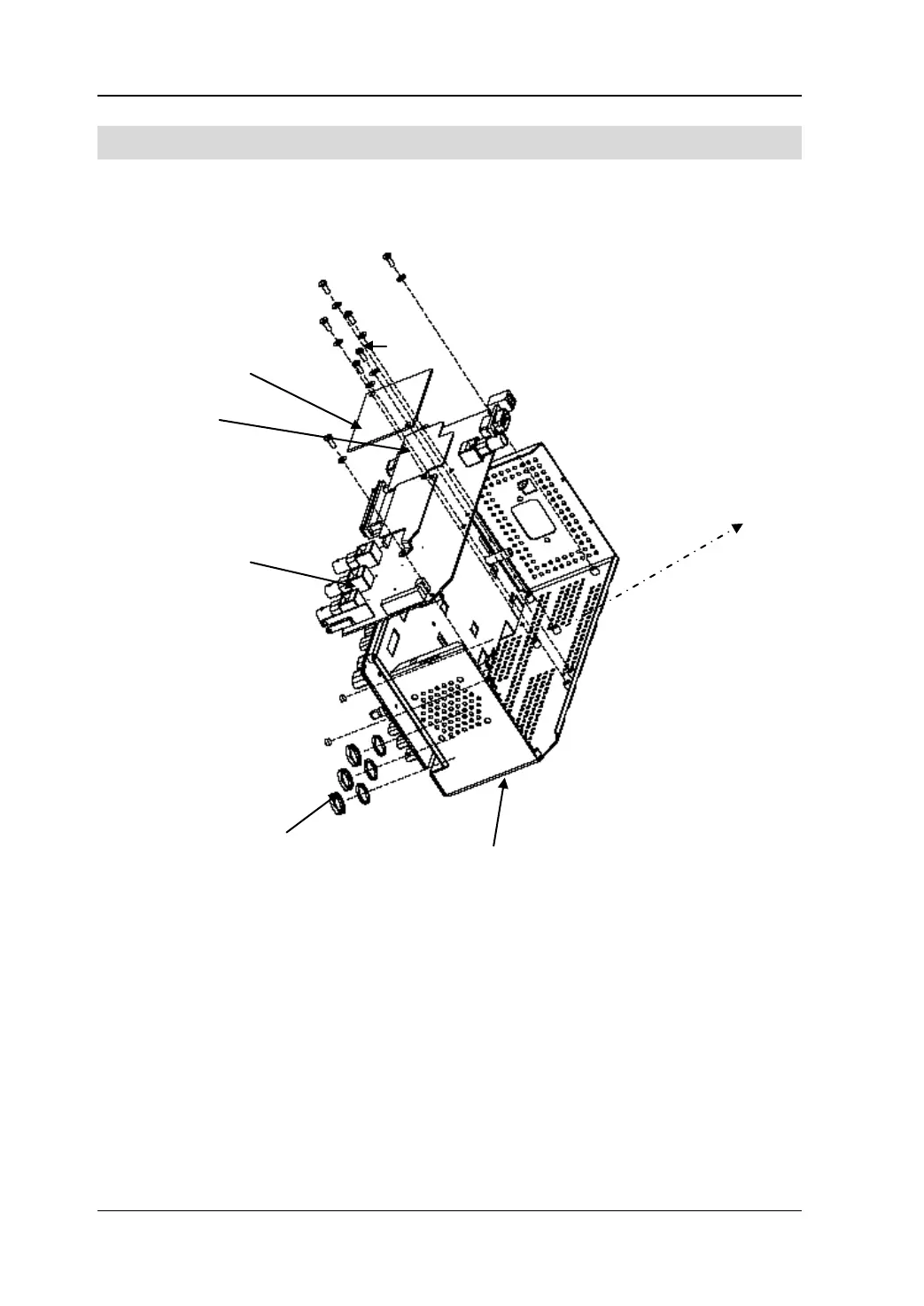

Figure 5-7 Disassemble and assemble the mainboard
Parts Explanations:
⑭ Bolts on the LA board ((M3*6 Pan head Torx recess composite machine screws): 2
⑮ Bolts on the cooling plate (M3*6 Pan head Torx recess composite machine screws):
3
⑯ Bolts for fixing the mainboard (M3*6 Pan head Torx recess composite machine
screws): 2
⑰ Stud on the mainboard (M3*6 Copper pillar): 3
⑱ Nuts at BNC terminal (BNC nuts): 3
⑲ Spacer at BNC fracture (BNC lock spacer): 3
⑱
⑲
⑱
⑱
⑲
⑲
⑳
⑳
Cooling Plate
LA Board
Mainboard
BNC Nut
Tank Body
⑭
⑭
⑯
⑯
⑮
⑮
⑮
⑰
