42 Rockwell Automation Publication 1769-IN088A-EN-P - February 2011
Chapter 2 Module Wiring

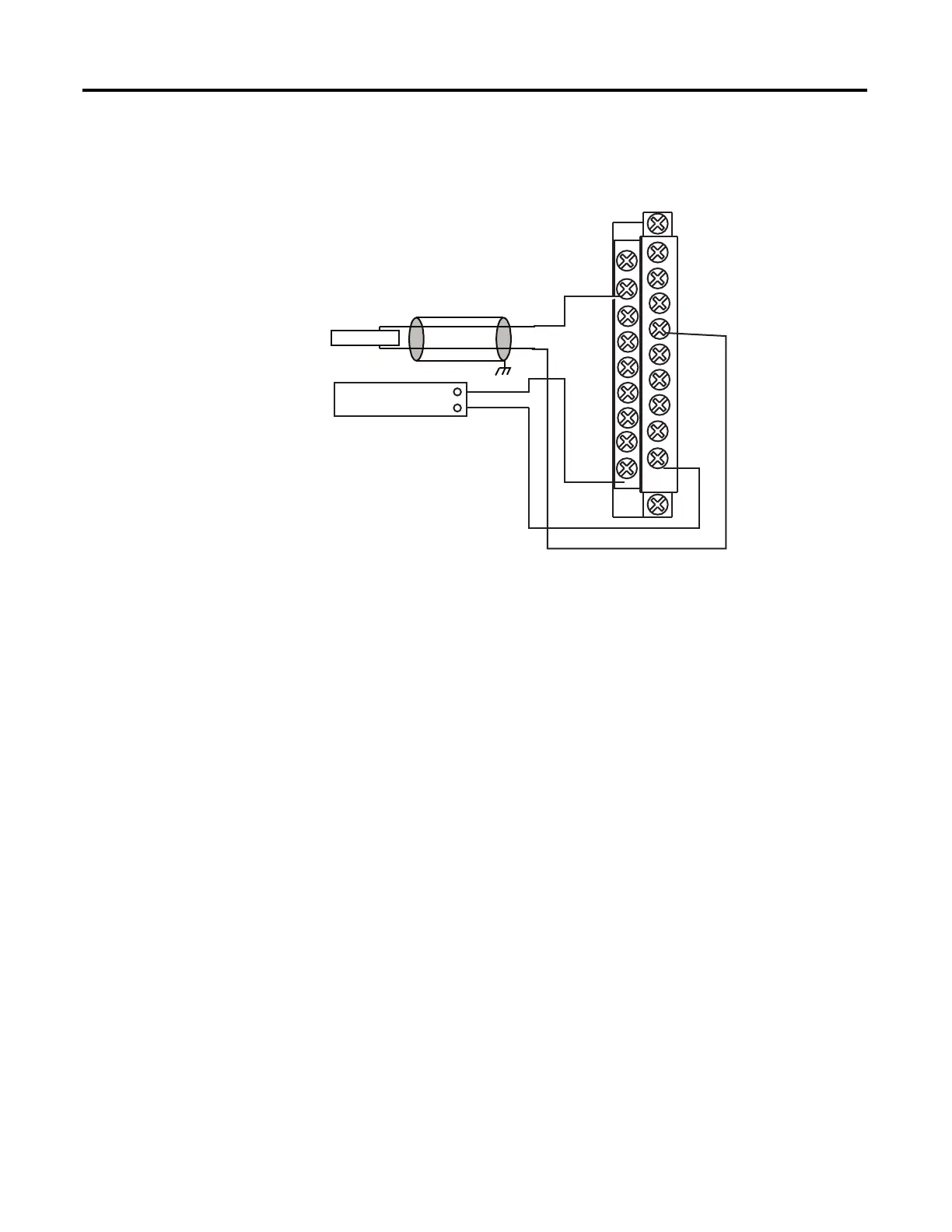

1769-OF8C
Compact current output analog module
1769-OF8C
ANLG Com
ANLG Com
ANLG Com
ANLG Com
ANLG Com
ANLG Com
ANLG Com
ANLG Com
DC NEUT
+24V DC
I out 7+
I out 6+
I out 5+
I out 4+
I out 3+
I out 2+
I out 1+
I out 0+
+
-
Current
Earth Ground
The external power supply must be rated Class 2, with a 24V DC range of 20.4…6.4V DC
and 60 mA minimum. Series B and later modules support this option.
External 24V DC Power
Supply (optional)
