Rockwell Automation Allen-Bradley 1769-IA16 User Manual

44 Rockwell Automation Publication 1769-IN088A-EN-P - February 2011

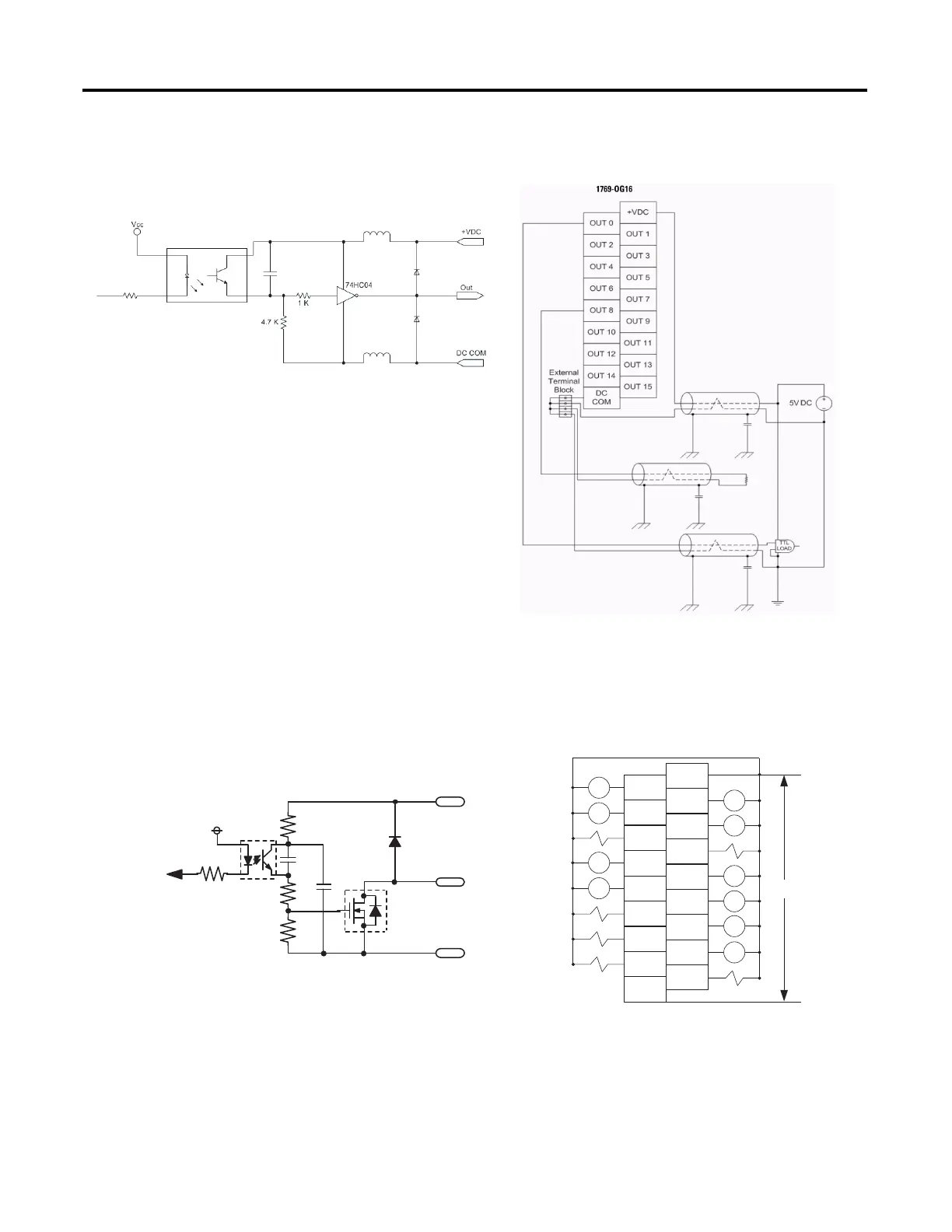

Chapter 2 Module Wiring
1769-OG16
Compact TTL output module
1769-OV16
Compact solid state 24V DC sink output module
Simplified Output Circuit Diagram
· Use Belden 8761, or equivalent, shielded wire.
· Do not connect more than two wires to any single terminal.
· DC power cable and I/O cables should not exceed 10 m (30 ft).
· The capacitors shown above must be 0.01 µF and rated for 2000V min.
· User power supply must be rated Class 2 with a 5V DC range of
4.5…5.5V DC.
+DC
24V DC (sink)
-DC
DC COM
OUT 14
OUT 12
OUT 10
OUT 8
OUT 6
OUT 4
OUT 2
OUT 0
OUT 15
OUT 13
OUT 11
OUT 9
OUT 7
OUT 5
OUT 3
OUT 1
+VDC
CR
CR
CR
CR
CR
CR
CR
CR
CR
CR
1769-OV16
Vcc
+VDC
OUT
DC COM
0.1μF
100pF
10K
6.8K
4.7K
G
S
D
Simplified Output Circuit Diagram
