17

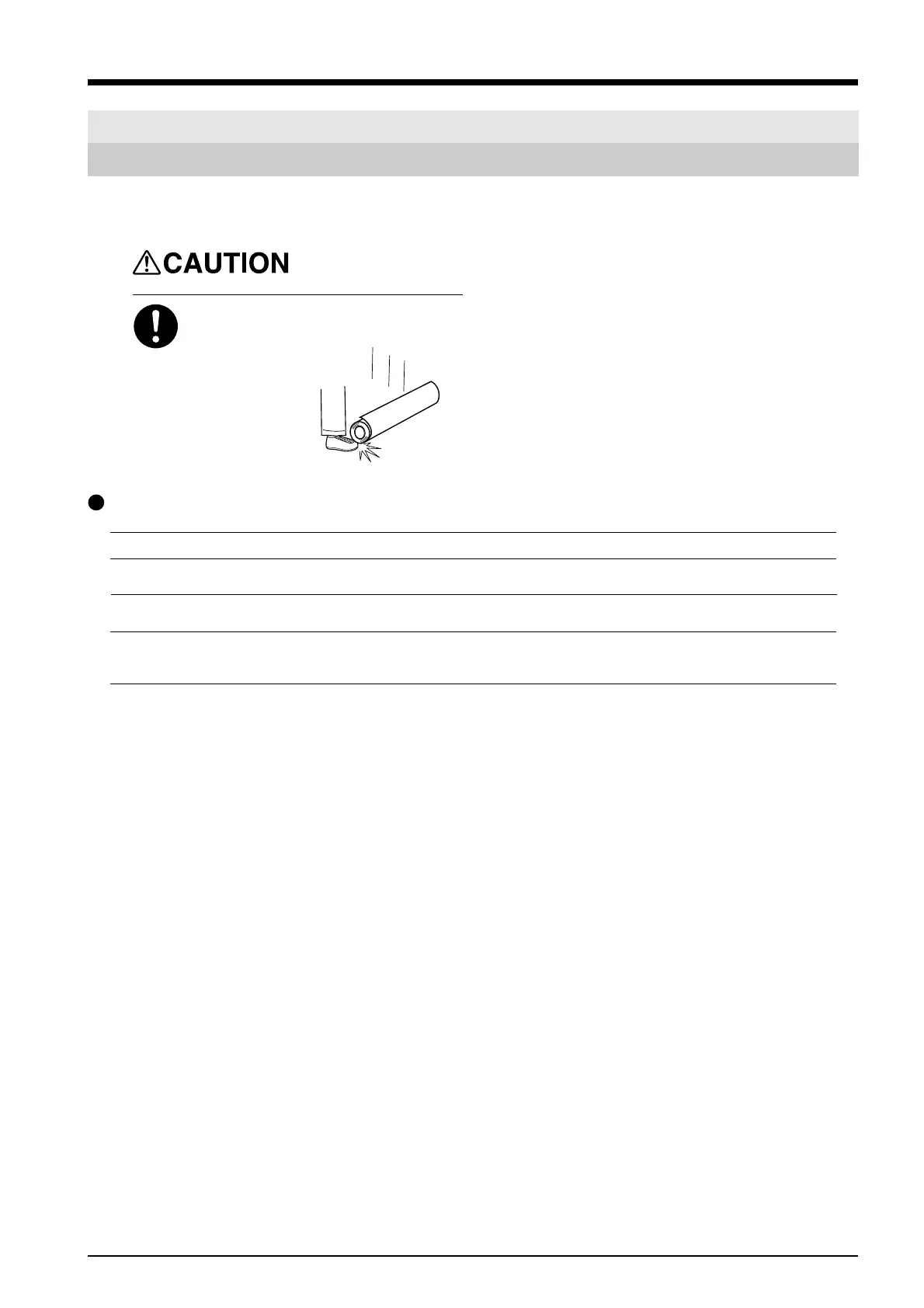

Roll material must be placed at a
predetermined shaft position.
Failure to do so
may result in
falling of the roll,
leading to injury.
3-1 Loading the Material (Roll Material)
Acceptable Material Width and Maximum Cutting Width
Acceptable material widths Maximum cutting width
GX-500 Min.90 mm (3-1/2 in.) Max.1372 mm (54 in.) 1195 mm (47 in.)
GX-400 Min.90 mm (3-1/2 in.) Max.1178 mm (46 in.) 1000 mm (39 in.)
GX-300 Min.50 mm (2 in.) Max.915 mm (36 in.) 737 mm (29 in.)
( 50 to 540 mm (2 in. to 21 in.) , 582 to 915 mm (23 in. to 36 in.) )
There is no special restriction on length (vertical dimension), as long as it is 200 mm (7-7/8 in.) or more.
You can also use flat material such as standard-size and piece material. For more information, see “4-4 Loading Flat Material
(Standard-size Material, Piece Material, Etc.).”
The positions of the grit rollers (pinch rollers that secure the material) vary from one model to another. The settable ranges for the
left and right movable pinch rollers are predetermined, and cannot be changed. See “Material Loading Position” on the following
page.
Setting a pinch roller outside the allowed range causes an error message to appear.
3 Basic Operation
