12
Panel Descriptions

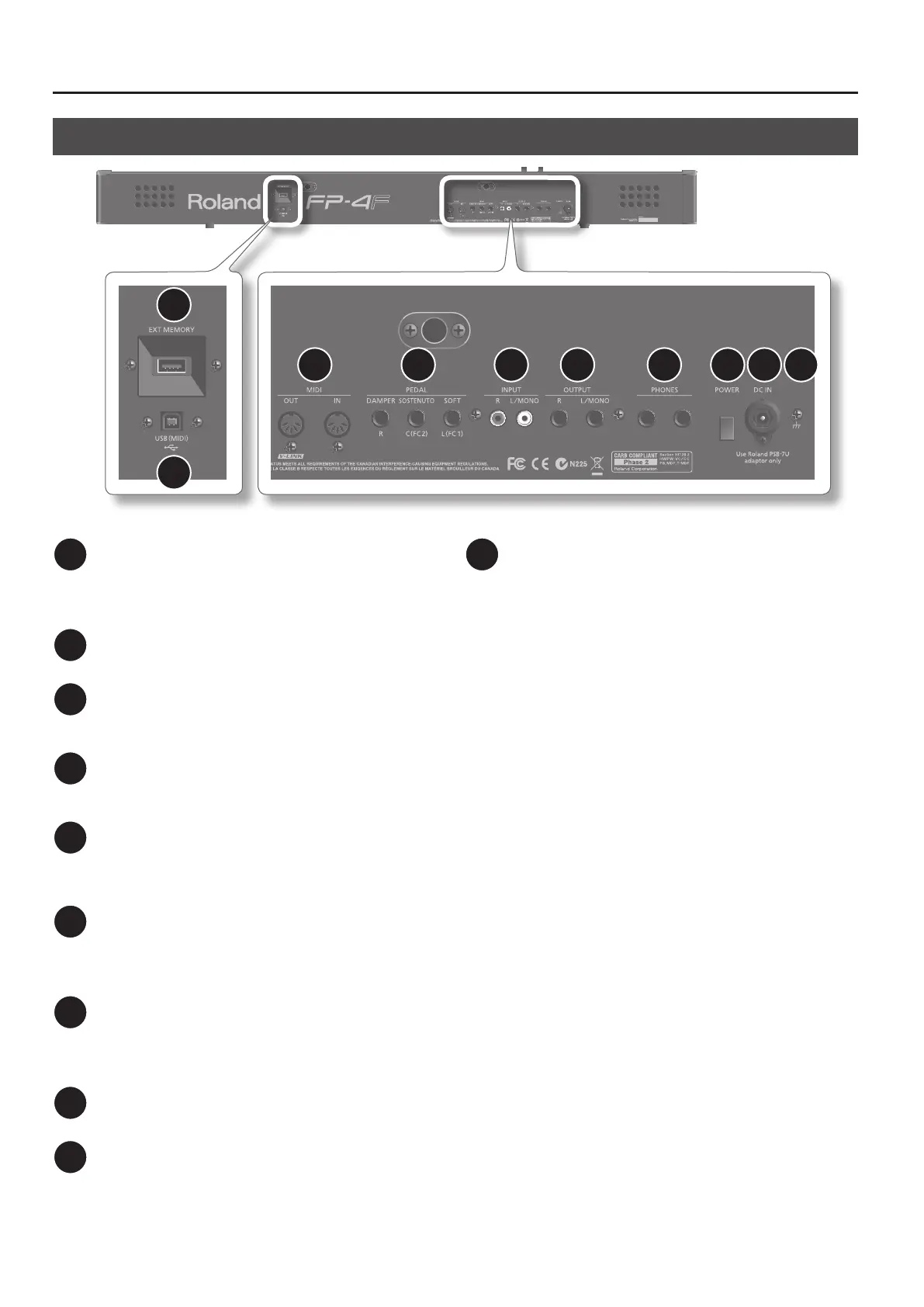

Rear Panel
103 5 6 874 9
1
2
1
EXT MEMORY connector
Connect your USB memory here.
Songs saved on USB memory can be played back (p. 58), and songs
you recorded on the FP-4F can be saved to USB memory (p. 45).
2
USB (MIDI) connector
Connect your computer for transferring performance data (p. 63).
3
MIDI connectors
Connect an external MIDI device here to transfer performance data
(p. 61).
4
PEDAL jacks
Connect the included pedal or a separately available pedal (RPU-3)
here (p. 16).
5
INPUT jacks
Connect an audio device or another electronic music instrument
here, so that its sound can be heard through the FP-4F’s speakers
(p. 60).
6
OUTPUT jacks
Connect these to your external speaker system.
The sound of the FP-4F can be output from connected audio
equipment or speakers (p. 60).
7
PHONES jacks
Connect your headphones here (p. 17).
The FP-4F allows you to use two sets of headphones
simultaneously.
8
[POWER] switch
Turns the power on/o (p. 13).
9
DC IN jack
Connect the included AC adaptor here (p. 13).
10
Grounding terminal
Depending on where and how you have your equipment set up,
you may experience an uncomfortable sensation or notice that
the surface feels gritty when you touch the metal portions of this
instrument. This is due to an innitesimal electrical charge, which
is absolutely harmless. However, if you are concerned about this,
connect the ground terminal (see gure) with an external ground.
When the unit is grounded, a slight hum may occur, depending
on the particulars of your installation. If you are unsure of the
connection method, contact the nearest Roland Service Center,
or an authorized Roland distributor, as listed on the “Information”
page.
Unsuitable places for connection
• Water pipes (may result in shock or electrocution)
• Gas pipes (may result in re or explosion)
• Telephone-line ground or lightning rod (may be dangerous in
the event of lightning)
