Setting Up the Kit
Using the provided cables, connect the pads, cymbal pads, hi-hat control pedal, and kick trigger.

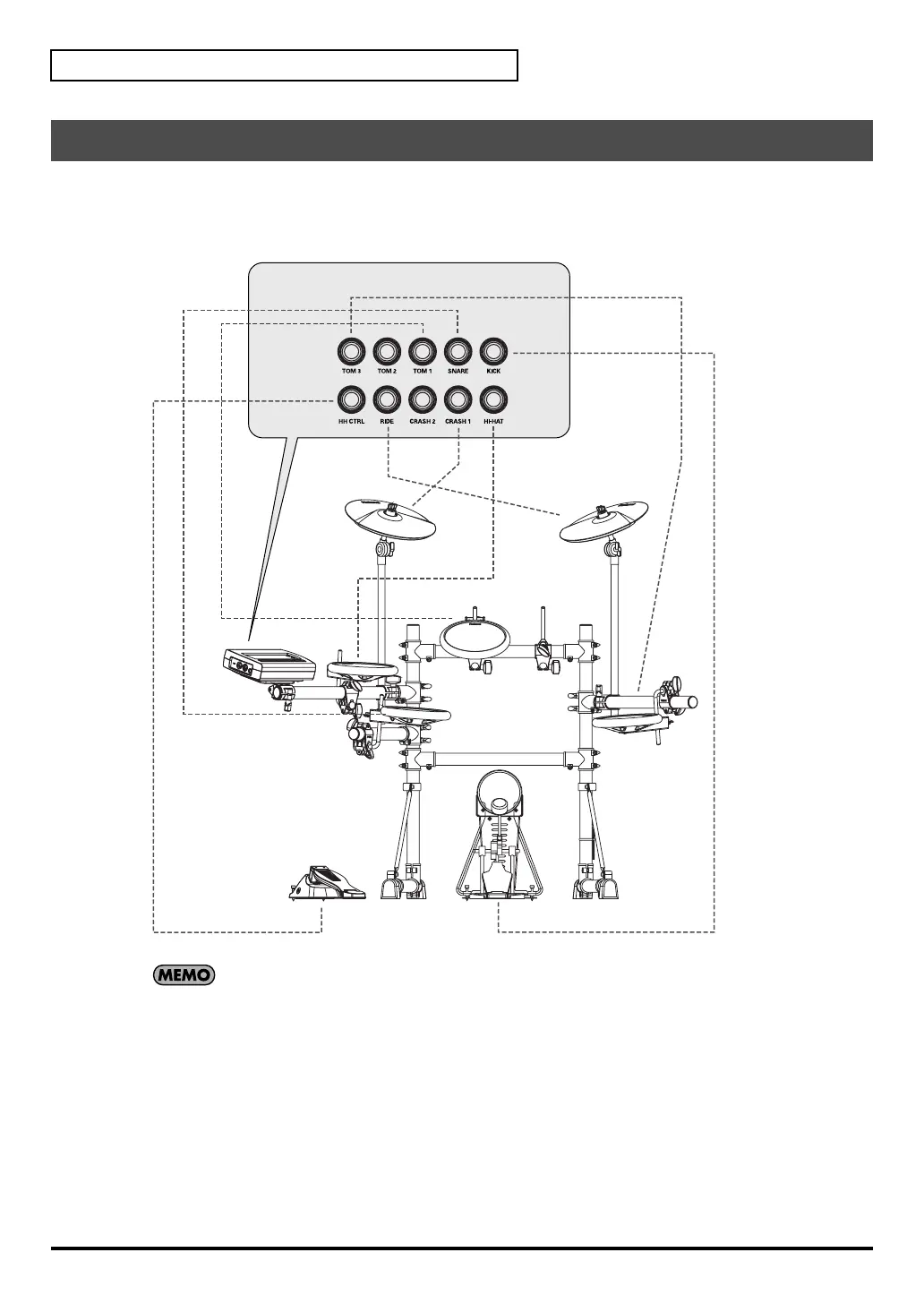

Setting Example
fig.P-004.e
For more examples showing other ways to connect the TD-3, see “Pad Configuration
Possibilities” (p. 48).
Connecting the Pads and the Pedals
TRIGGER INPUT jacks
RIDE
CY-8
CY-8
CRASH 1
TOM 3
PD-8
PD-8
TOM 1
PD-8
HI-HAT
PD-8
SNARE
KICK
KD-8
FD-8
HH CTRL
TD-3
