Names of Things and What They Do
The buttons switch the modes for [VIDEO INPUT], [OUTPUT FORMAT], and [AUDIO
INPUT]. If the buttons are difficult to press, use a pen tip or the like to press them.
1. Check the current mode.
Check the [VIDEO INPUT], [OUTPUT FORMAT], and [AUDIO INPUT] indicators.
* The [OUTPUT FORMAT] indicators flash when an output format is incompatible with the input
format. Selecting a supported output format makes the indicators light up steadily.

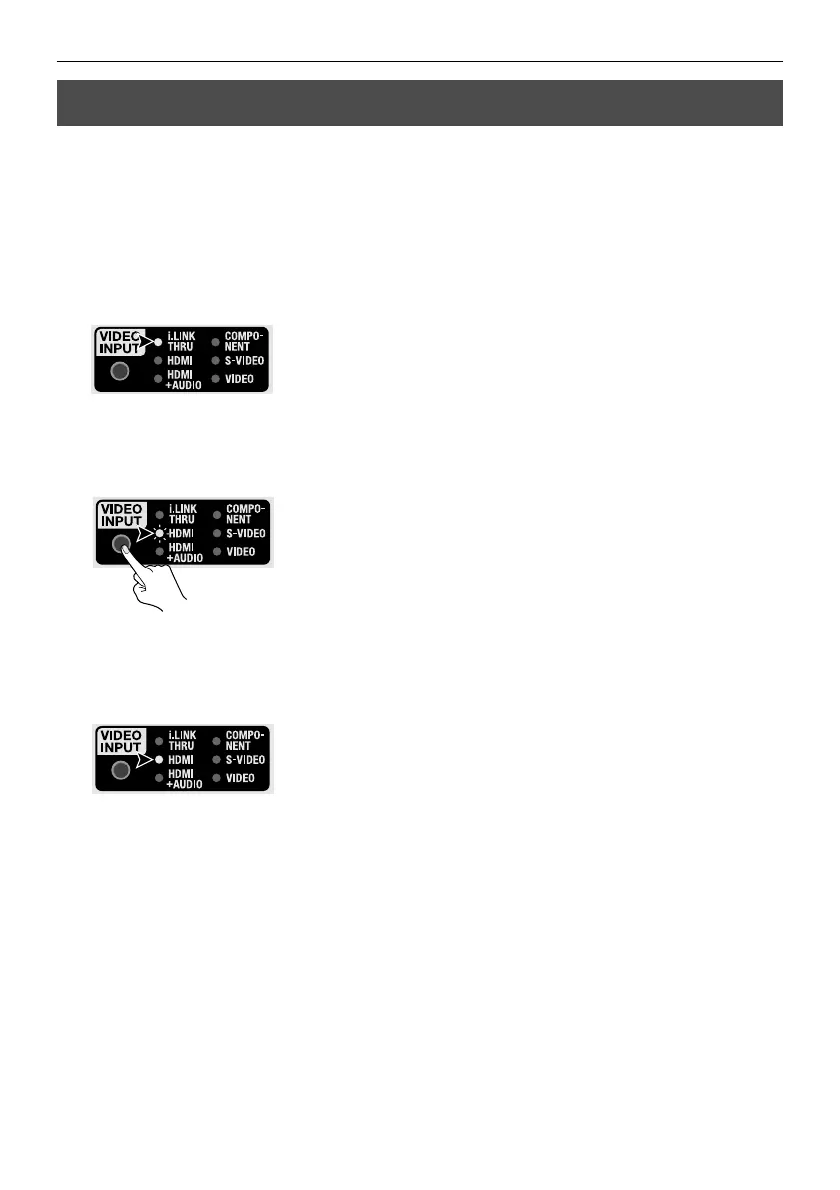

fig.current-mode.eps
2. Select the mode you wish to use.
Press the button to choose the mode. Each one-second press makes the mode change.
During the switching operation, the indicator for the newly selected mode flashes.
fig.press–button.eps
3. Make sure the mode has switched.
When the mode has switched completely, the indicator stops flashing and lights up
steadily.
fig.mode-change.eps
If the signal source you selected is not detected, the [VIDEO INPUT] and [AUDIO INPUT]
indicators will do the following :
• [VIDEO INPUT]
These will flash when the selected video source is not detected.
• [AUDIO INPUT]
These will flash if you have selected [AES/EBU] as your audio source and no AES/EBU digital audio
is detected. (When analog is selected, no input detection is performed.)
