Connecting External Equipment
Making a Composite Connection

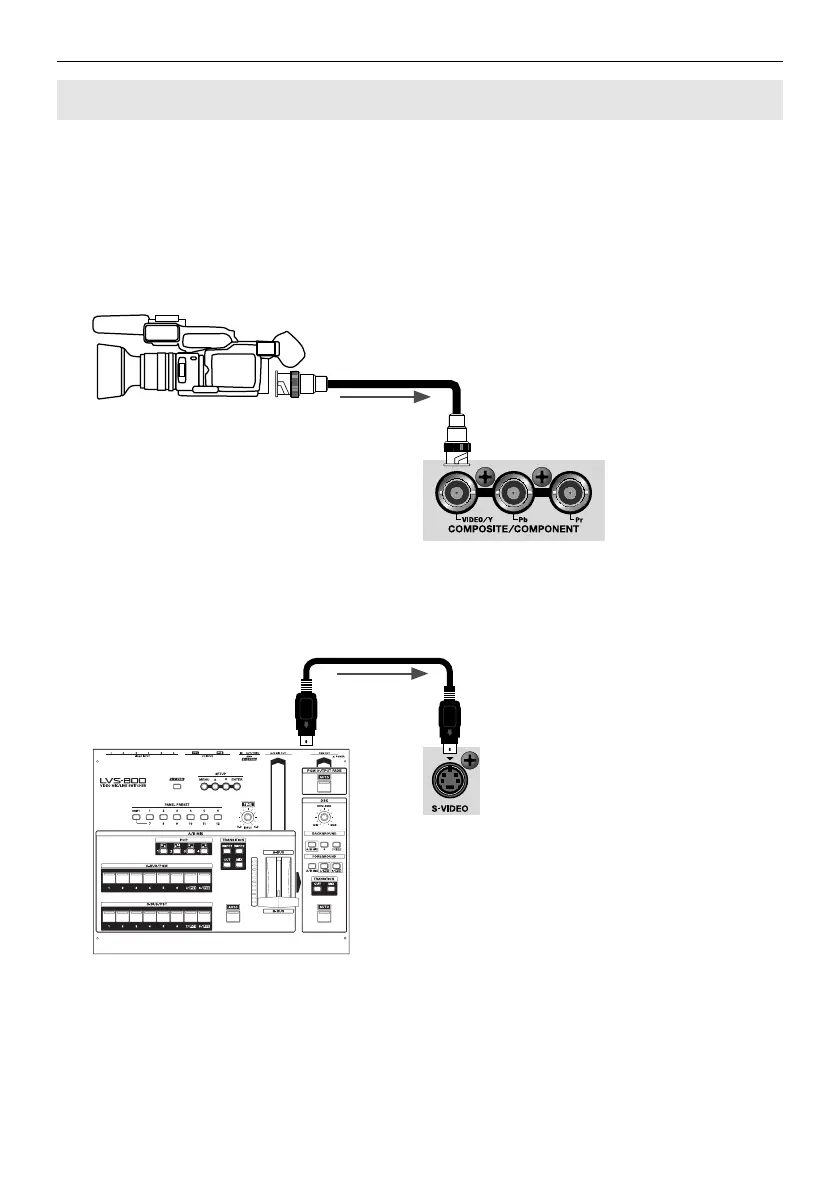

Connect composite output from a video camera or video mixer to the [COMPOSITE/
COMPONENT] connector on the front panel.
* When making a composite connection, use only the [VIDEO/Y] connector.
* When BNC/RCA conversion is needed, use an adapter plug. No adapter plug is included with this
product.
fig.composite-connection.eps
Making an S-Video Connection
Connect S-Video output from a video camera or video mixer to the [S-VIDEO] connector
on the front panel.
fig.S-Video-connection.eps
Making a Composite/S-Video Connection
